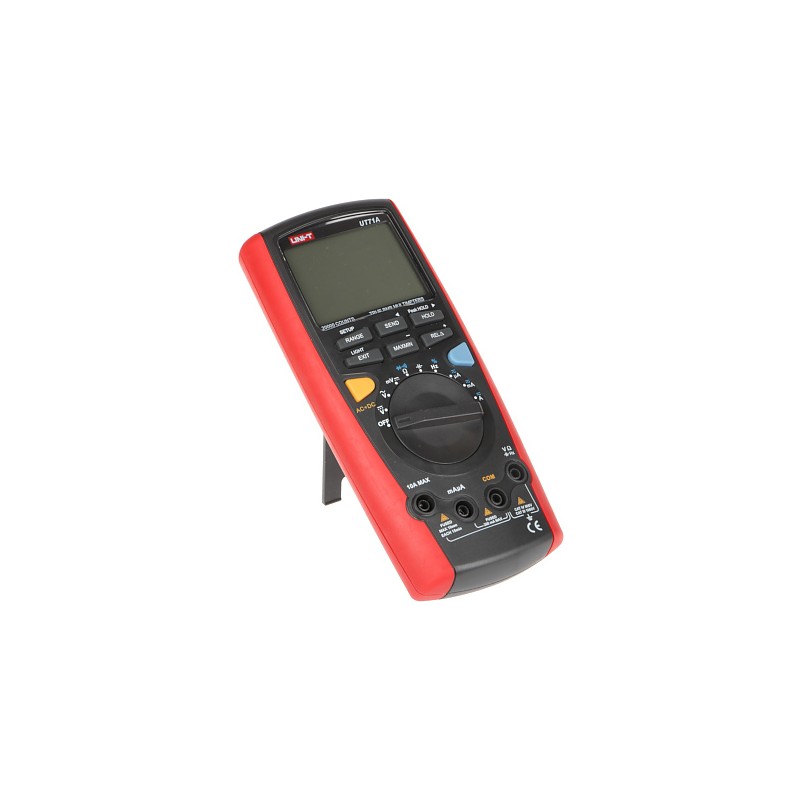

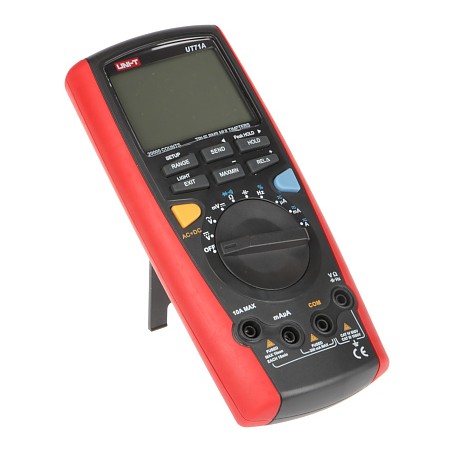

UNIVERSAL METER UT-71A UNI-T

222,17 €
Sisältää alv:n
  • The UT-71A is a universal digital meter used to measure: voltage, current, resistance, inductance, capacitance, frequency, temperature and checking the correct operation of diodes
  • The meter has the function of automatic change of measuring ranges, as well as the relative measurement mode
Määrä



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

DC voltage measurement: 200 mV ± (0.1% + 8)  @ 0.01 mV ,
2 V ± (0.1% + 8)  @ 0.0001 V ,
20 V ± (0.1% + 8)  @ 0.001 V ,
200 V ± (0.1% + 8)  @ 0.01 V ,
1000 V ± (0.15% + 8)  @ 0.1 V
AC voltage measurement: 2 V @ 0.0001 V :
± (0.8% + 40)  @ 45 Hz ... 1 kHz
± (3% + 40)  @ 1 kHz ... 10 kHz
± (7% + 40)  @ 10 kHz ... 100 kHz

20 V @ 0.001 V :
± (0.8% + 40)  @ 45 Hz ... 1 kHz
± (3% + 40)  @ 1 kHz ... 10 kHz
± (7% + 40)  @ 10 kHz ... 100 kHz

200 V @ 0.01 V :
± (0.8% + 40)  @ 45 Hz ... 1 kHz
± (5% + 40)  @ 1 kHz ... 10 kHz

1000 V @ 0.1 V :
± (1.5% + 40)  @ 45 Hz ... 1 kHz
± (6% + 40)  @ 1 kHz ... 5 kHz
± (10% + 40)  @ 5 kHz ... 100 kHz
DC current measurement: 200 µA ± (0.2% + 20)  @ 0.01 µA ,
2000 µA ± (0.2% + 20)  @ 0.1 µA ,
20 mA ± (0.2% + 20)  @ 0.001 mA ,
200 mA ± (0.2% + 20)  @ 0.01 mA ,
10 A ± (0.8% + 30)  @ 0.001 mA
AC current measurement: 200 µA @ 0.01 µA :
± (1% + 15)  @ 45 Hz ... 1 kHz
± (2% + 40)  @ 1 kHz ... 10 kHz

2000 µA @ 0.1 µA :
± (1% + 15)  @ 45 Hz ... 1 kHz
± (2% + 40)  @ 1 kHz ... 10 kHz

20 mA @ 0.001 mA :
± (1% + 15)  @ 45 Hz ... 1 kHz
± (2% + 40)  @ 1 kHz ... 10 kHz

200 mA @ 0.01 mA :
± (1% + 15)  @ 45 Hz ... 1 kHz
± (2% + 40)  @ 1 kHz ... 10 kHz

10 A @ 0.001 A :
± (2% + 20)  @ 45 Hz ... 1 kHz
± (2% + 40)  @ 1 kHz ... 10 kHz
Resistance measurement: 200 Ω ± (0.5% + 20) + test leads resistance @ 0.01 Ω ,
2 kΩ ± (0.5% + 20)  @ 0.0001 kΩ ,
20 kΩ ± (0.5% + 20)  @ 0.001 kΩ ,
200 kΩ ± (1% + 20)  @ 0.01 kΩ ,
2 MΩ ± (1% + 40)  @ 0.0001 MΩ ,
20 MΩ ± (1.5% + 40)  @ 0.001 MΩ
Capacitance measurement: 20 nF ± (1.5% + 20) + capacity of test leads @ 0.001 nF ,
200 nF ± (1.5% + 20)  @ 0.01 nF ,
2 µF ± (1.5% + 20)  @ 0.0001 µF ,
20 µF ± (1.5% + 40)  @ 0.001 µF ,
400 µF ± (1.5% + 40)  @ 0.01 µF ,
2 mF ± (5% + 40)  @ 0.0001 mF
20 mF @ 0.001 mF
Inductance measurement:
Frequency measurement: 20 Hz ± (0.1% + 15)  @ 0.001 Hz
200 Hz ± (0.1% + 15)  @ 0.01 Hz
2 kHz ± (0.1% + 15)  @ 0.0001 Hz
20 kHz ± (0.1% + 15)  @ 0.001 Hz
200 kHz ± (0.1% + 15)  @ 0.01 Hz
2 MHz ± (0.1% + 15)  @ 0.0001 MHz
20 MHz ± (0.1% + 15)  @ 0.001 Hz
200 MHz @ 0.01 MHz
Temperature measurement:
Automatic change of measuring ranges:
hFE:
Diode test:
Sound signal of the continuity test:
Checking TTL logic states:
RS-232:
USB:
Main features: Freezing the last reading, Freezing the highest or lowest measurement, Writing the value peak, REL - relative measurement mode, Analog bargraph, Possibility to save readings, access saved results and send them to a computer using the USB interface, Large, readable LCD display with backlight, Low battery level alarm, Aesthetic and solid construction, The set includes short test leads with crocodile clips, The set includes a practical case
Power supply: 9V, type 6F22 battery - included
Weight: 0.35 kg
Dimensions: 203  x 93  x 40 mm
Manufacturer / Brand: UNI-T
Guarantee: 2 years
UNI-T
UT-71A
