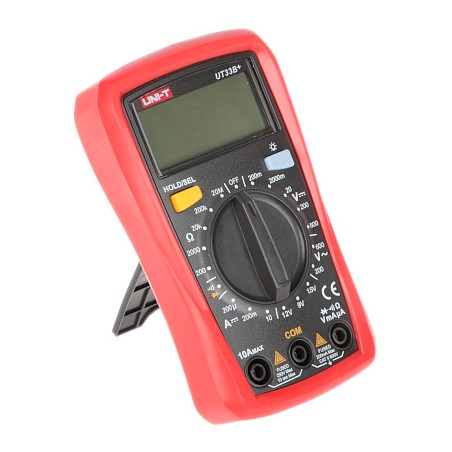

UNIVERSAL METER UT-33B+ UNI-T
search
  • UNIVERSAL METER UT-33B+ UNI-T
  • UNIVERSAL METER UT-33B+ UNI-T
  • UNIVERSAL METER UT-33B+ UNI-T
  • UNIVERSAL METER UT-33B+ UNI-T
  • UNIVERSAL METER UT-33B+ UNI-T

UNIVERSAL METER UT-33B+ UNI-T

23,19 €
Sisältää alv:n
  • UT-33B+ is a universal digital meter used to measure: voltage, current, resistance
  • The device also has a built-in battery tester
Määrä



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

DC voltage measurement: 200 mV ± (0.7% + 3)  @ 0.1 mV ,
2000 mV ± (0.5% + 2)  @ 1 mV ,
20 V ± (0.7% + 3)  @ 10 mV ,
200 V ± (0.7% + 3)  @ 100 mV ,
600 V ± (0.7% + 3)  @ 1 V
AC voltage measurement: 200 V ± (1.2% + 3)  @ 100 mV ,
600 V ± (1.2% + 3)  @ 1 V
DC current measurement: 200 µA ± (1% + 2)  @ 0.1 µA ,
200 mA ± (1% + 2)  @ 100 µA ,
10 A ± (1.2% + 5)  @ 10 mA
AC current measurement:
Resistance measurement: 200 Ω ± (1% + 2)  @ 0.1 Ω ,
2 kΩ ± (0.8% + 2)  @ 1 Ω ,
20 kΩ ± (0.8% + 2)  @ 10 Ω ,
200 kΩ ± (0.8% + 2)  @ 100 Ω ,
20 MΩ ± (1.2% + 3)  @ 10 kΩ ,
200 MΩ ± (5% + 10)  @ 100 kΩ
Capacitance measurement:
Inductance measurement:
Frequency measurement:
Temperature measurement:
Automatic change of measuring ranges:
hFE:
Diode test:
Sound signal of the continuity test:
Checking TTL logic states:
RS-232:
Main features: Measurement of the battery discharge level: 12V, 9V, 1.5V Large, readable LCD display with backlight Freezing the last reading Low battery level alarm Aesthetic and solid construction
Power supply: 2 x 1.5V, type AAA/LR03 battery - included
Weight: 0.26 kg
Dimensions: 134  x 77  x 47 mm
Manufacturer / Brand: UNI-T
Guarantee: 2 years
