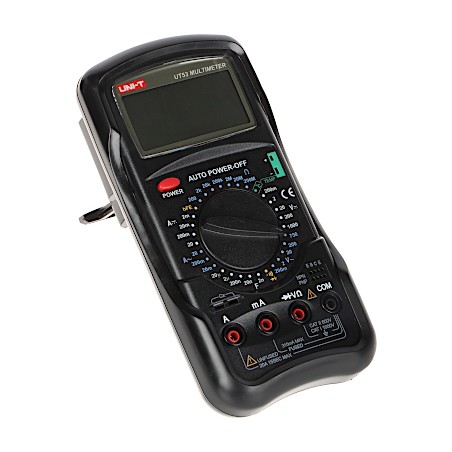

UNIVERSAL METER UT-53 UNI-T

43,62 €
Sisältää alv:n
  • The UT-53 is a universal digital meter used to measure: voltage, current, resistance, capacitance, hFE, temperature and checking the correct operation of diodes
Määrä



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

DC voltage measurement: 200 mV ± (0.5% + 1)  @ 0.1 mV ,
2 V ± (0.5% + 1)  @ 0.001 V ,
20 V ± (0.5% + 1)  @ 0.01 V ,
200 V ± (0.5% + 1)  @ 0.1 V ,
1000 V ± (0.8% + 2)  @ 1 V
AC voltage measurement: 200 mV ± (1.2% + 3)  @ 0.1 mV ,
2 V ± (0.8% + 3)  @ 0.001 V ,
20 V ± (0.8% + 3)  @ 0.01 V ,
200 V ± (0.8% + 3)  @ 0.1 V ,
750 V ± (1.2% + 3)  @ 1 V
DC current measurement: 2 mA ± (0.8% + 1)  @ 0.001 mA ,
20 mA ± (0.8% + 1)  @ 0.01 mA ,
200 mA ± (1.5% + 1)  @ 0.1 mA ,
20 A ± (2.0% + 5)  @ 0.01 A
AC current measurement: 20 mA ± (1.0% + 3)  @ 0.01 mA ,
200 mA ± (1.8% + 3)  @ 0.1 mA ,
20 A ± (3.0% + 7)  @ 0.01 A
Resistance measurement: 200 Ω ± (0.8% + 3)  @ 0.1 Ω ,
2 kΩ ± (0.8% + 1)  @ 0.001 kΩ ,
20 kΩ ± (0.8% + 1)  @ 0.01 kΩ ,
200 kΩ ± (0.8% + 1)  @ 0.1 kΩ ,
2 MΩ ± (0.8% + 1)  @ 0.001 MΩ
20 MΩ ± (1.0% + 2)  @ 0.01 MΩ ,
200 MΩ ± (5%(RD-10) + 10)  @ 0.1 MΩ *

*RD - reading value
Capacitance measurement: 2 nF ± (4% + 3)  @ 0.001 nF ,
20 nF ± (4% + 3)  @ 0.01 nF ,
200 nF ± (4% + 3)  @ 0.1 nF ,
2 µF ± (4% + 3)  @ 0.001 µF ,
20 µF ± (4% + 3)  @ 0.01 µF
Inductance measurement:
Frequency measurement:
Temperature measurement: -20 °C ... 0 °C ± (5% + 3)  @ 1 °C ,
>0 °C ... 400 °C ± (1% + 3)  @ 1 °C ,
>400 °C ... 1000 °C ± 2%  @ 1 °C
Automatic change of measuring ranges:
hFE:
Diode test:
Sound signal of the continuity test:
Checking TTL logic states:
RS-232:
Main features: Large, readable LCD display Low battery level alarm Aesthetic and solid construction
Power supply: 9V, type 6F22 battery - included
Weight: 0.5 kg
Dimensions: 203  x 98  x 56 mm
Manufacturer / Brand: UNI-T
Guarantee: 2 years
UNI-T
UT-53
