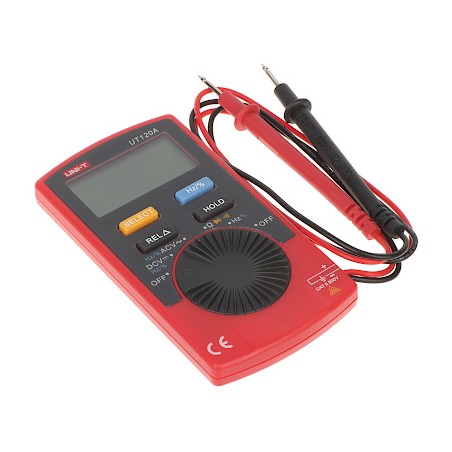

UNIVERSAL METER UT-120A UNI-T

20,82 €
Sisältää alv:n
  • UT-120A is a universal digital meter used to measure: voltage, resistance, diodes, continuity, frequency, duty cycle factor
Määrä



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

DC voltage measurement: 4 V ± (0.8% + 1)  @ 0.001 V ,
40 V ± (0.8% + 1)  @ 0.01 V ,
400 V ± (0.8% + 1)  @ 0.1 V ,
600 V ± (1.0% + 3)  @ 1 V
AC voltage measurement: 4 V ± (1.2% + 3)  @ 0.001 V ,
40 V ± (1.2% + 3)  @ 0.01 V ,
400 V ± (1.2% + 3)  @ 0.1 V ,
600 V ± (1.5% + 5)  @ 1 V
DC current measurement:
AC current measurement:
Resistance measurement: 400 Ω ± (1.2% + 2)  @ 0.1 Ω ,
4 kΩ ± (1.0% + 2)  @ 0.001 kΩ ,
40 kΩ ± (1.0% + 2)  @ 0.01 kΩ ,
400 kΩ ± (1.0% + 2)  @ 0.1 kΩ ,
4 MΩ ± (1.2% + 2)  @ 0.001 MΩ ,
40 MΩ ± (1.5% + 2)  @ 0.01 MΩ
Capacitance measurement:
Inductance measurement:
Frequency measurement: 99.9 Hz ± (0.5% + 3)  @ 0.1 Hz ,
0.999 kHz ± (0.5% + 3)  @ 0.001 kHz ,
9.99 kHz ± (0.5% + 3)  @ 0.01 kHz ,
99.9 kHz ± (0.5% + 3)  @ 0.1 kHz
Square-wave signal duty ratio measurement: 0.1 ... 99.9 % @ 0.1 %
Temperature measurement:
Automatic change of measuring ranges:
hFE:
Diode test:
Sound signal of the continuity test:
Checking TTL logic states:
RS-232:
Main features: Large, readable LCD display Freezing the last reading Low battery level alarm Aesthetic and solid construction The set includes a practical case
Power supply: 1 x CR2032 lithium battery - included
Weight: 0.076 kg
Dimensions: 110  x 58  x 13 mm
Manufacturer / Brand: UNI-T
Guarantee: 2 years
UNI-T
UT-120A
