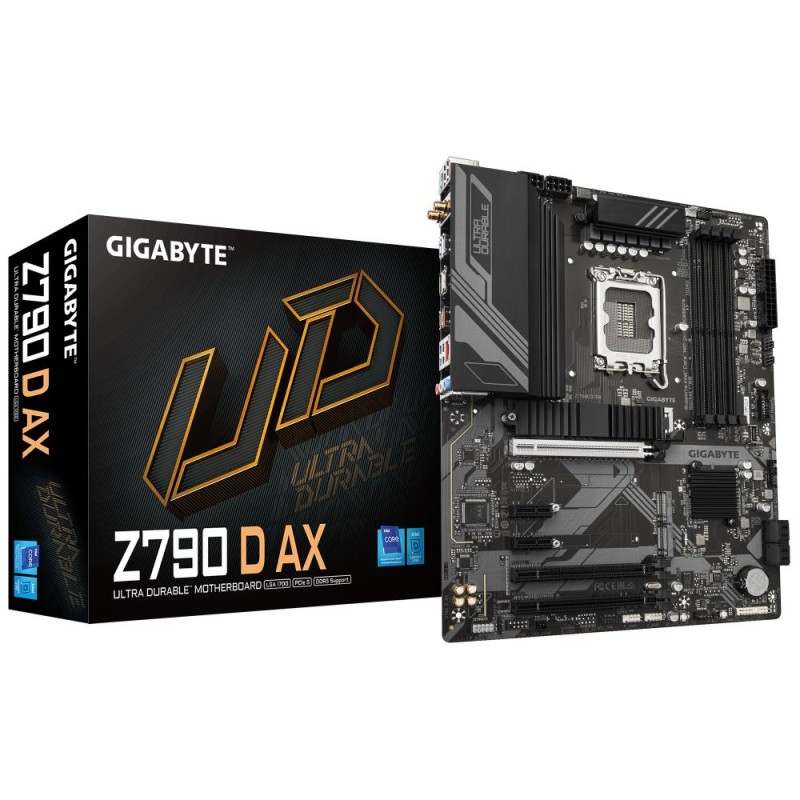

Mainboard|GIGABYTE|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.

Data sheet

Vendor Homepage

www.gigabyte.com/Motherboard/Z790-D-AX-rev-10 kf

Form Factor

ATX

Socket

LGA1700

Input/Output connectors (USB 2.0)

2

Memory type

DDR5

Frequency speed

4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz

Interface (USB 2.0)

Yes

Input/Output connectors (RJ45)

1

Input/Output connectors (HDMI)

1

Integrated LAN

2.5 Gigabit

Interface (Bluetooth)

Yes

Interface (WiFi)

Yes

Chipset

Intel Z790

Integrated video

Depending on CPU

Memory slots

4

Input/Output connectors (PS/2)

1

RAID

SATA 0, 1, 5, 10 NVMe 0, 1, 5, 10

TPM

Header

Expansion slots (PCI-Express 3.0 16x)

1

Expansion slots (PCI-Express 3.0 1x)

2

Expansion slots (M.2)

3

Input/Output connectors (DisplayPort)

1

Input/Output connectors (Audio port)

3

Interface (USB-C)

Yes

Garantija

36

Input/Output connectors (USB 3.2)

5

Interface (USB 3.2)

Yes

Expansion slots (PCI-Express 4.0 16x)

1

Model

Z790 D AX

Category Code

MBI

Expansion slots (PCI-Express 5.0 16x)

1

Unit Box Height

0.082

Unit Box Length

0.34

Unit Box Width

0.27

Input/Output connectors (USB-C)

1

Units per Shipping Box

8

Unit Calculated Volume

0.01024 cubm

Product Net Weight

1.4 kg

Unit Calculated Weight

1.89 kg

Specific References

EAN13

4719331860592

MPN

Z790DAX
