Mainboard|MSI|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x
  • Mainboard|MSI|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x

Mainboard|MSI|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x

1424289
MSI
Intel Z890 | LGA1851 | ATX | DDR5 | 8600/7200/4800 MHz | Memory slots 4 | Video Depending on CPU | LAN 2.5 Gigabit | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5 | TPM Header
€208.53
VAT included
Quantity
Laos
20 Items

Description

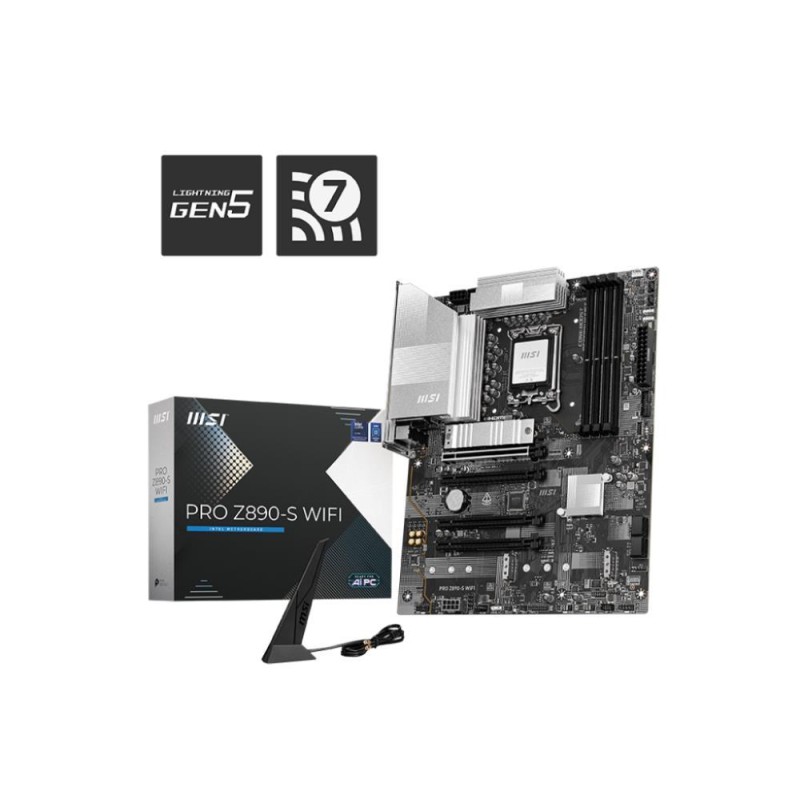

PRO Z890-S WIFI

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8600+ MT/s (OC)
  • Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
  • 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Product Details
MSI
1424289
20 Items

Data sheet

Vendor Homepage
www.msi.com/Motherboard/PRO-Z890-S-WIFI
Form Factor
ATX
Socket
LGA1851
Input/Output connectors (USB 2.0)
4
Interface (SATA)
Yes
Memory type
DDR5
Frequency speed
4800/7200/8600 MHz
Interface (USB 2.0)
Yes
Input/Output connectors (HDMI)
1
Input/Output connectors (USB 3.0)
2
Integrated LAN
2.5 Gigabit
Interface (Bluetooth)
Yes
Interface (WiFi)
Yes
Chipset
Intel Z890
Integrated audio
Realtek ALC897
Integrated video
Depending on CPU
Memory slots
4
RAID
SATA 0, 1, 5, 10 NVMe 0, 1, 5
TPM
Header
Interface (USB 3.0)
Yes
Expansion slots (PCI-Express 3.0 1x)
1
Expansion slots (M.2)
3
Input/Output connectors (DisplayPort)
1
Input/Output connectors (Audio port)
3
Interface (Thunderbolt)
Yes
Interface (USB-C)
Yes
Garantija
36
Input/Output connectors (USB-C w/Thunderbolt)
1
Model
PRO Z890-S WIFI
Category Code
MBI
Expansion slots (PCI-Express 5.0 16x)
1
Expansion slots (PCI-Express 4.0 4x)
2
Unit Box Height
0.072
Unit Box Length
0.345
Unit Box Width
0.27
Input/Output connectors (USB-C)
1
Units per Shipping Box
5
Unit Calculated Volume
0.0078736 cubm
Product Net Weight
0.8 kg
Unit Calculated Weight
1.82 kg

Specific References

EAN13
4711377269995
MPN
PROZ890-SWIFI
