Mainboard|MSI|Intel B760 Express|LGA1700|Memory DDR5|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|2

Reference 1414514

Brand MSI

€133.36

VAT included

Quantity

Laos

In stock: 30 Items

Description
Product Details

Description

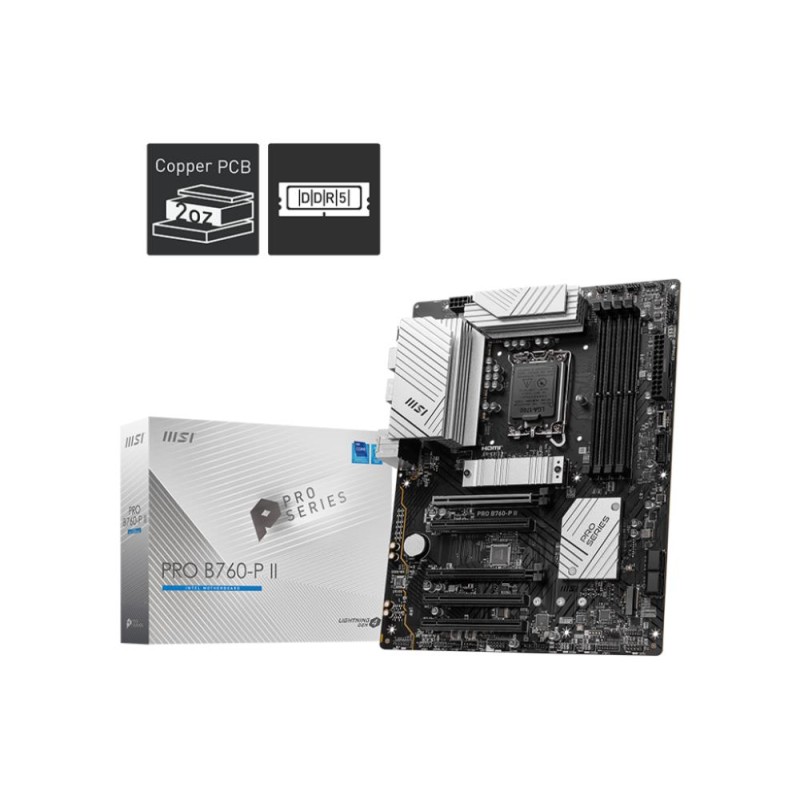

PRO B760-P II

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
Intel Turbo USB 10Gbps: Powered by Intel USB 10Gbps controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Product Details

Brand MSI

Reference 1414514

In stock 30 Items

Data sheet

Vendor Homepage: www.msi.com/Motherboard/PRO-B760-P-II
Socket: LGA1700
Input/Output connectors (USB 2.0): 2
Interface (SATA): Yes
Memory type: DDR5
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000 MHz
Interface (USB 2.0): Yes
Input/Output connectors (RJ45): 1
Input/Output connectors (HDMI): 1
Integrated LAN: 2.5 Gigabit
Input/Output connectors (Optical S/PDIF): 1
Chipset: Intel B760 Express
Integrated audio: Realtek ALC897
Integrated video: Depending on CPU
Memory slots: 4
RAID: SATA 0, 1, 5, 10
TPM: Header
Expansion slots (M.2): 2
Input/Output connectors (DisplayPort): 1
Input/Output connectors (Audio port): 5
Garantija: 36
Input/Output connectors (USB 3.2): 2
Interface (USB 3.2): Yes
Model: PRO B760-P II
Category Code: MBI
Expansion slots (PCI-Express 5.0 16x): 5
Unit Box Height: 0.27
Unit Box Length: 0.345
Unit Box Width: 0.07
Input/Output connectors (USB-C): 1
Units per Shipping Box: 10
Unit Calculated Volume: 0.007252 cubm
Product Net Weight: 1.3 kg
Unit Calculated Weight: 1.51 kg

Specific References

EAN13: 4711377193887
MPN: PROB760-PII
