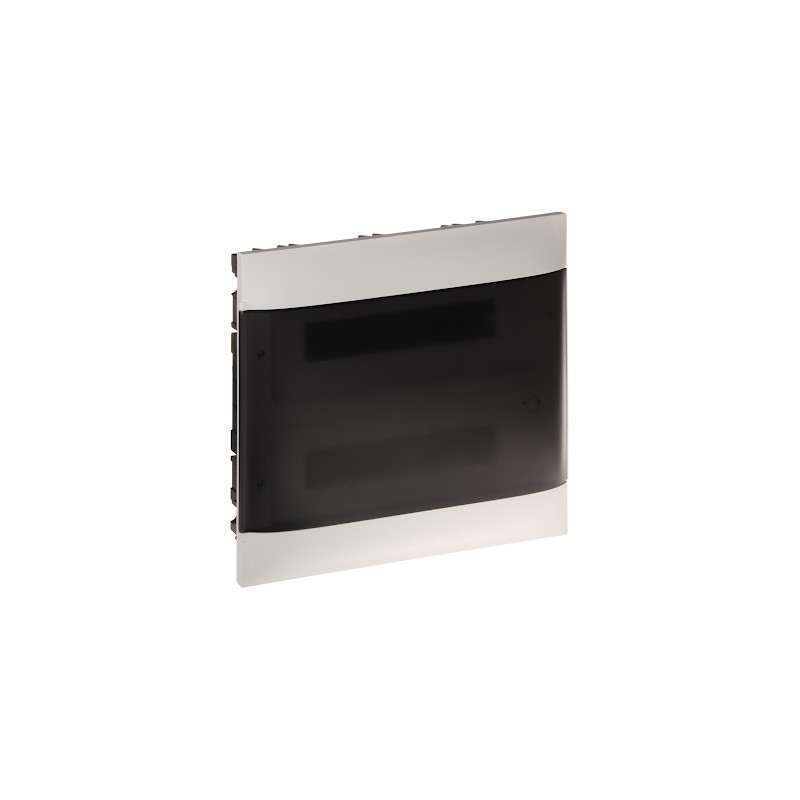

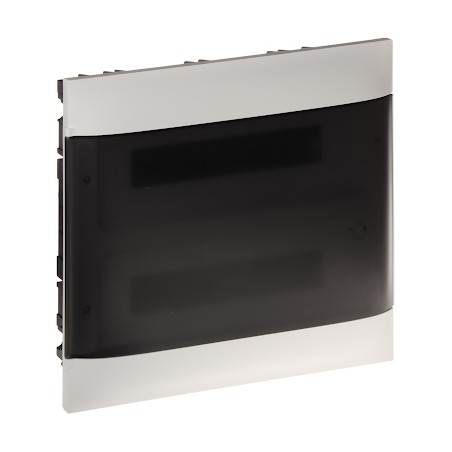

FLUSH-MOUNTING DISTRIBUTION CABINET 36-MODULAR LE-137377 Practibox S LEGRAND
€103.51
VAT included
- 2-row 36-modular flush-mounting distribution electric cabinet
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
| Method of mounting: | Flush |
| Number of mounted modules: | 18 x 2 rows, 17.5 mm |
| Spacing between TH 35 rails: | 150 mm |
| Transparent door: |  |
| Main features: | Removable chassis with TH 35 rails Reversible door Removable faceplates for each row of cabinet Rated voltage : 400 V AC, 50 / 60 Hz Max. current : 125 A Short-circuit current : 10 kA Equipped with terminal blocks |
| Equipment: | Terminal blocks : 2 pcs : 1 x 25 mm² + 12 x 16 mm² 1 pcs 1 x 25 mm² + 26 x 16 mm² |
| Material: | Self-extinguishing |
| Color: | White |
| "Index of Protection": | IP40 |
| IK rating: | IK07 |
| Complies with norms: | IEC/EN 60670-24, IEC/EN 61439-3 |
| Operation temp: | -10 °C ... 60 °C |
| Weight: | 1.88 kg |
| Dimensions: | 436 x 385 x 105 mm , 420 x 370 x 85 mm - flush-mounting box |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
