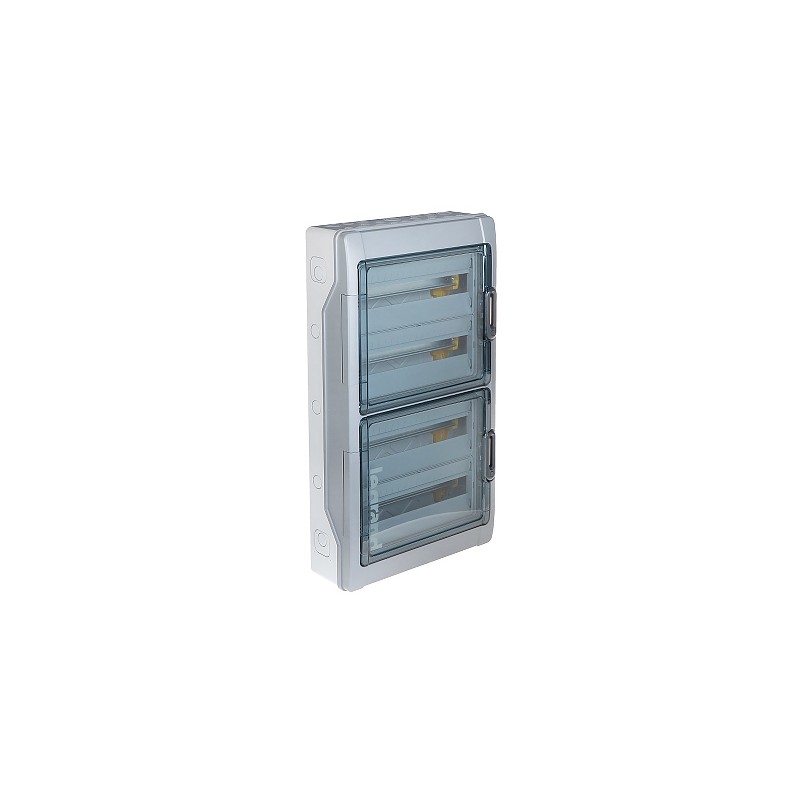

SURFACE-MOUNTING HERMETIC DISTRIBUTION CABINET 72-MODULAR LE-601948 RN65 LEGRAND
€392.61
VAT included
- 4-row 72-modular surface-mounting, hermetic distribution electric cabinet
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
| Method of mounting: | Surface |
| Number of mounted modules: | 18 x 4 rows |
| Spacing between TH 35 rails: | 150 mm |
| Transparent door: |  |
| Main features: | Weatherproof cabinet Fully reversible door and cabinet Removable chassis and faceplates The TH 35 rail with 2-position mounting for modular products Can be fitted with perforated plates and solid faceplates for mounting non-modular products Lockable door handle, sealable cover and faceplate Rated voltage : 400 V AC, 50 / 60 Hz Max. current : 125 A Short-circuit current : 10 kA Equipped with terminal blocks and modules blanking plates |
| Equipment: | Terminal blocks 1 x ( 34 x 1.5 ... 16 mm² + 1 x 6 ... 25 mm² ) 5 x ( 8 x 1.5 ... 16 mm² ) Module blanking plates : 3 x 5 pcs |
| Material: | Self-extinguishing |
| Color: | Light gray |
| "Index of Protection": | IP65 |
| IK rating: | IK09 |
| Complies with norms: | PN-EN 60439-3, IEC 60695-2-11, IEC 62262 |
| Operation temp: | -25 °C ... 40 °C |
| Weight: | 8.2 kg |
| Dimensions: | 448 x 822 x 161 mm |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
