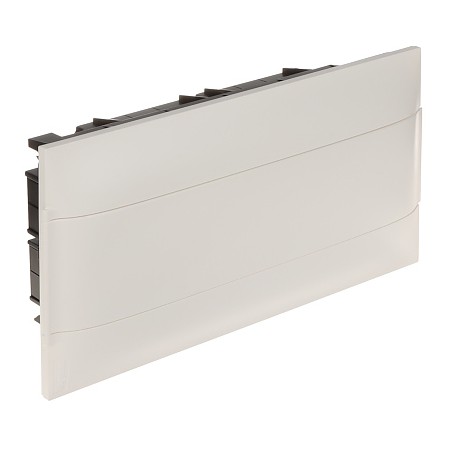

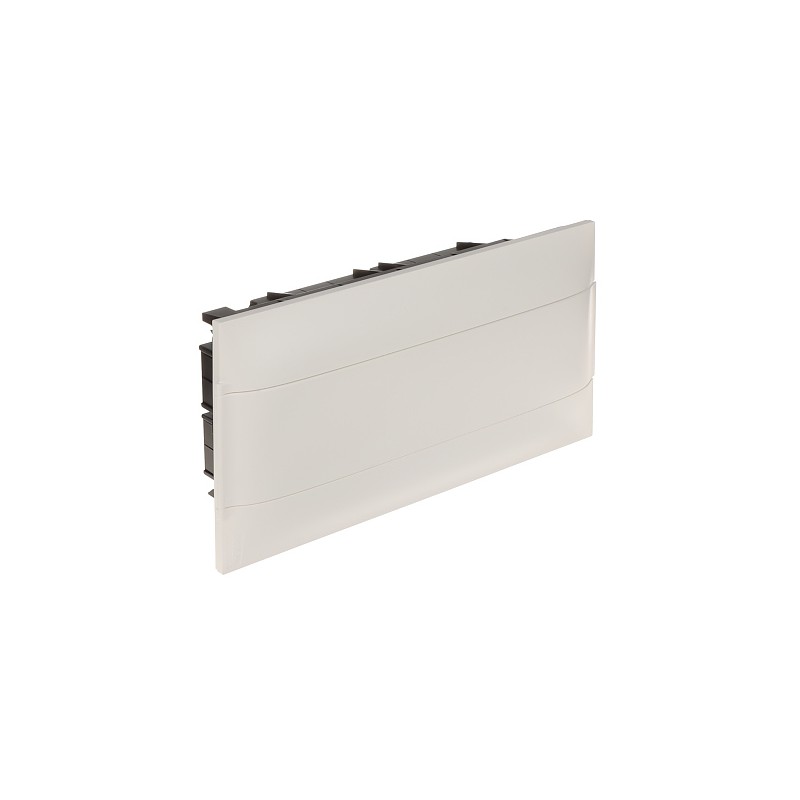

FLUSH-MOUNTING DISTRIBUTION CABINET 18-MODULAR LE-137366 Practibox S LEGRAND
€44.29
VAT included
- 1-row 18-modular flush-mounting distribution electric cabinet
- The satin material of the distribution cabinet and the cover with the door prevents the effect of mirror reflections of light
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
| Method of mounting: | Flush |
| Number of mounted modules: | 18 x 1 row, 17.5 mm |
| Spacing between TH 35 rails: |  |
| Transparent door: | |
| Main features: | Removable chassis with TH 35 rails Reversible door Removable faceplates for each row of cabinet Rated voltage : 400 V AC, 50 / 60 Hz Max. current : 63 A Short-circuit current : 10 kA Equipped with terminal blocks |
| Equipment: | Terminal blocks : 1 pcs N : 1 x 25 mm² + 12 x 16 mm² 1 pcs PE 1 x 25 mm² + 12 x 16 mm² |
| Material: | Self-extinguishing |
| Color: | White |
| "Index of Protection": | IP40 |
| IK rating: | IK07 |
| Complies with norms: | IEC/EN 60670-24, IEC/EN 61439-3 |
| Operation temp: | -10 °C ... 60 °C |
| Weight: | 1.05 kg |
| Dimensions: | 436 x 235 x 104 mm , 415 x 220 x 72 mm - flush-mounting box |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
