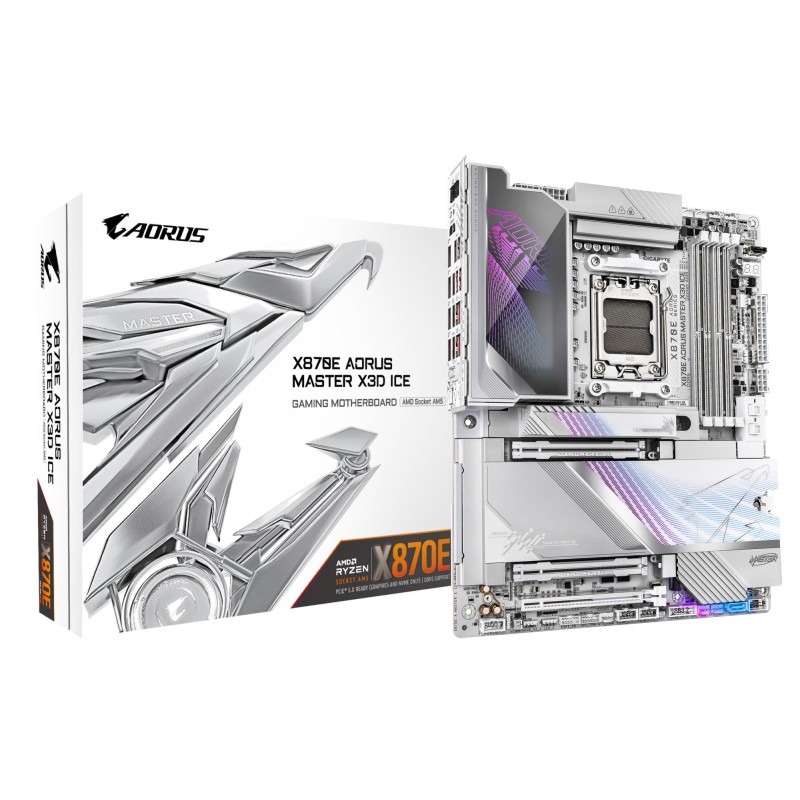

Mainboard|GIGABYTE|AMD X870E|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|5xNumber of M.2 (M) slots|X870E A MAS

Reference X870E A MASTER X ICE

Brand GIGABYTE

€502.20

VAT included

Quantity

Laos

In stock: 4 Items

Description
Product Details

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
Digital twin 18+2+2 phases VRM solution
PCIe EZ-Latch Plus Duo: One click for screwless & quick release on dual PCIe slots
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks
Ultra-Fast Storage: 5*M.2 slots, including PCIe 5.0 x4
Fast Networking: 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W

Product Details

Brand GIGABYTE

Reference X870E A MASTER X ICE

In stock 4 Items

Data sheet

Vendor Homepage: https://www.gigabyte.com/
Garantija: 36
Model: X870E A MASTER X ICE
Category Code: MBA
Unit Box Height: 0.31
Unit Box Length: 0.34
Unit Box Width: 0.095
Units per Shipping Box: 1
Unit Calculated Volume: 0.010013 cubm
Unit Calculated Weight: 3.8 kg
CnCode: 84733020
Summary: GIGABYTE X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible pr
Battery (Battery technology): Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width): 305 mm
Weight & dimensions (Depth): 244 mm
Weight & dimensions (Height): 35 mm
Packaging data (Package width): 340 mm
Packaging data (Package depth): 310 mm
Packaging data (Package height): 92 mm
Packaging data (Package weight): 4380 g
Battery (Battery type): CR2032
Technical details (Warranty period): 3 year(s)
Other features (Weight): 3820 g
Network (Bluetooth): Yes
Network (Bluetooth version): 5.4
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Features (Product colour): White
Logistics data (Products per shipping (inner) case): 1 pc(s)
Packaging content (Batteries included): Yes
Packaging content (Screws included): Yes
Logistics data (Country of origin): Taiwan
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 7 (802.11be)
Features (Component for): PC
Packaging content (Bundled software): Norton Internet Security (OEM version)
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Network (WLAN controller model): MediaTek MT7927
Network (LAN controller): Realtek RTL8126/Realtek RTL8127
Expansion slots (PCI Express x16 (Gen 5.x) slots): 2
Features (Cooling type): Passive
Battery (Battery weight): 3 g
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 9000 MHz
Memory (Supported memory clock speeds): 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of HDDs supported): 2
Storage controllers (Number of storage drives supported): 7
Storage controllers (Supported storage drive interfaces): M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 6
Internal I/O (Number of SATA III connectors): 2
Internal I/O (RGB LED pin header): Yes
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 2
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (Headphone outputs): 1
Rear panel I/O ports (Line-in): Yes
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 7
Rear panel I/O ports (WiFi-AP antenna jack): 2
Network (Ethernet interface type): 10 Gigabit Ethernet/2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD X870E
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): ATX
Features (Windows operating systems supported): Windows 11 x64
Expansion slots (Number of M.2 (M) slots): 5
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
BIOS (BIOS memory size): 512 Mbit
BIOS (BIOS type): UEFI AMI
BIOS (Clear CMOS button): Yes
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Internal I/O (Chassis intrusion connector): Yes
Rear panel I/O ports (DisplayPort version): 1.4
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (S/PDIF out port): Yes
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Features (Audio chip): Realtek ALC1220-VB/ESS 9118
Features (Power source type): ATX
Graphics (DirectX version): 12.0
Features (PC health monitoring): CPU/Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version): 5.0
BIOS (Clear CMOS jumper): Yes
BIOS (Desktop Management Interface (DMI) version): 2.7
BIOS (System Management BIOS (SMBIOS) version): 2.7
Battery (Lithium weight per battery): 0.07 g
Battery (Number of battery cells): 1
Memory (ECC сompatibility): ECC & Non-ECC
Memory (Maximum internal memory per slot): 64 GB
Graphics (HDCP): Yes
Graphics (Maximum resolution): 4096 x 2304 pixels
Internal I/O (Number of CPU fan connectors): 2
Internal I/O (Number of RGB LED pin headers): 5
Internal I/O (Number of water pump connectors): 2
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 2580
Expansion slots (2nd M.2 highest PCI Express generation): 5.0
Expansion slots (2nd M.2 largest key size): 2280
Expansion slots (3rd M.2 highest PCI Express generation): 4.0
Expansion slots (3rd M.2 largest key size): 2280
Internal I/O (Number of EPS power connectors (8-pin)): 3
Packaging content (Antenna included): Yes
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity): 1
Internal I/O (USB 3.2 Gen 2x2 connectors): 1
Internal I/O (Number of noise detection headers): 1
Internal I/O (Number of temperature sensor headers): 2
Rear panel I/O ports (Digital audio optical out): 1
Rear panel I/O ports (USB4 Gen 2x2 ports quantity): 2
Expansion slots (4th M.2 highest PCI Express generation): 4.0
Expansion slots (4th M.2 largest key size): 2280
Expansion slots (5th M.2 highest PCI Express generation): 4.0
Expansion slots (5th M.2 largest key size): 2280
