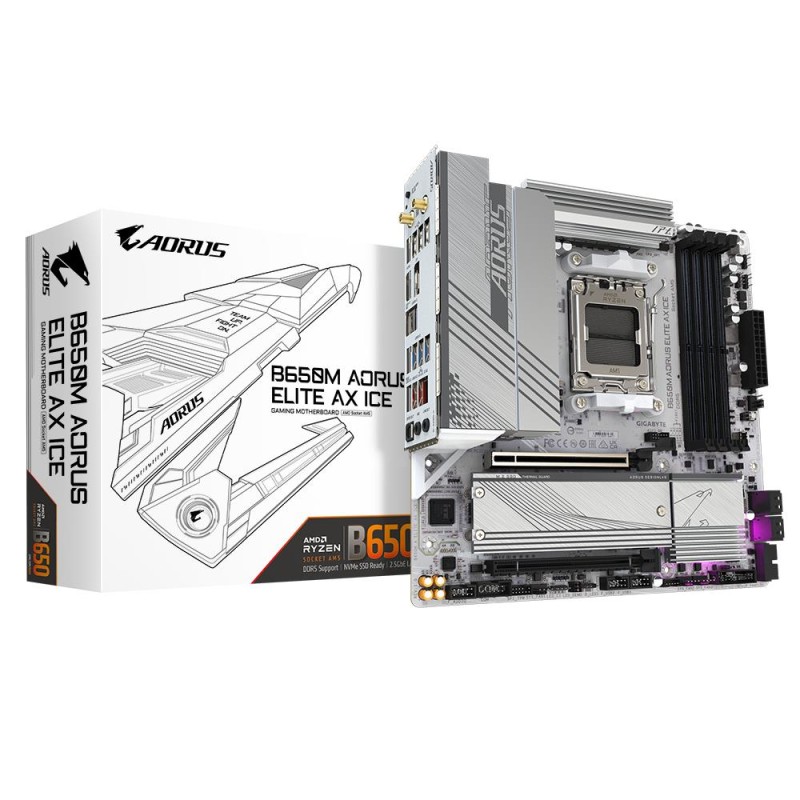

Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B650MAELITEAXICE1.1

Reference B650M A ELITE AX ICE 1.1

Brand GIGABYTE

€167.93

VAT included

Quantity

Laos

In stock: 7 Items

Description
Product Details

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
Superfast Storage：1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E
Extended Connectivity：HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Product Details

Brand GIGABYTE

Reference B650M A ELITE AX ICE 1.1

In stock 7 Items

Data sheet

Vendor Homepage: https://www.gigabyte.com/
Garantija: 36
Model: B650M AORUS ELITE AX ICE 1.1
Category Code: MBA
Unit Box Height: 0.07
Unit Box Length: 0.275
Unit Box Width: 0.27
Units per Shipping Box: 8
Unit Calculated Volume: 0.007192 cubm
Unit Calculated Weight: 1.9 kg
CnCode: 84733020
Summary: GIGABYTE B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatibl
Battery (Battery technology): Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width): 244 mm
Weight & dimensions (Depth): 244 mm
Weight & dimensions (Height): 35 mm
Packaging data (Package width): 270 mm
Packaging data (Package depth): 268 mm
Packaging data (Package height): 68 mm
Packaging data (Package weight): 1892 g
Battery (Battery type): CR2032
Technical details (Warranty period): 3 year(s)
Network (Bluetooth): Yes
Network (Bluetooth version): 5.3
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Features (Product colour): White
Logistics data (Products per shipping (inner) case): 1 pc(s)
Packaging content (Batteries included): Yes
Packaging content (Screws included): Yes
Logistics data (Country of origin): China
Processor (Processor manufacturer): AMD
Network (Top Wi-Fi standard): Wi-Fi 6E (802.11ax)
Features (Component for): PC
Packaging content (Bundled software): Norton Internet Security (OEM version) LAN bandwidth management software
Memory (Maximum internal memory): 256 GB
Memory (Memory channels): Dual-channel
Network (WLAN controller model): Realtek RTL8852CE
Network (LAN controller): Realtek RTL8125
Battery (Battery weight): 3 g
Processor (Compatible processor series): AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket): Socket AM5
Processor (Supported processor sockets): Socket AM5
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speed (max)): 8000 MHz
Memory (Supported memory clock speeds): 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
Memory (Supported memory types): DDR5-SDRAM
Memory (Unbuffered memory): Yes
Storage controllers (Number of HDDs supported): 4
Storage controllers (Number of storage drives supported): 6
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (Parallel processing technology support): Not supported
Internal I/O (12V power connector): Yes
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 4
Internal I/O (Number of SATA III connectors): 4
Internal I/O (RGB LED pin header): Yes
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 1
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (Headphone outputs): 1
Rear panel I/O ports (Line-in): Yes
Rear panel I/O ports (USB 2.0 ports quantity): 4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity): 2
Rear panel I/O ports (WiFi-AP antenna jack): 2
Network (Ethernet interface type): 2.5 Gigabit Ethernet
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): AMD B650
Features (Motherboard chipset family): AMD
Features (Motherboard form factor): micro ATX
Features (Windows operating systems supported): Windows 10 x64/Windows 11 x64
Expansion slots (Number of M.2 (M) slots): 2
Expansion slots (PCI Express x16 (Gen 4.x) slots): 2
BIOS (BIOS memory size): 256 Mbit
BIOS (BIOS type): UEFI AMI
Storage controllers (RAID levels): 0/1/10
Storage controllers (RAID support): Yes
Rear panel I/O ports (DisplayPort version): 1.4
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (S/PDIF out port): Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 5
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity): 1
Features (Audio chip): Realtek ALC897
Features (Power source type): ATX
Graphics (DirectX version): 12.0
Features (PC health monitoring): Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version): 5.0
BIOS (Clear CMOS jumper): Yes
BIOS (Desktop Management Interface (DMI) version): 2.7
BIOS (System Management BIOS (SMBIOS) version): 2.7
Battery (Lithium weight per battery): 0.07 g
Battery (Number of battery cells): 1
Memory (ECC сompatibility): Non-ECC
Memory (Maximum internal memory per slot): 64 GB
Graphics (Discrete graphics support): Yes
Graphics (HDCP): Yes
Graphics (Maximum resolution): 4096 x 2304 pixels
Internal I/O (Number of CPU fan connectors): 2
Internal I/O (Number of RGB LED pin headers): 5
Internal I/O (Number of water pump connectors): 2
Internal I/O (Serial port headers): 1
Expansion slots (1st M.2 highest PCI Express generation): 5.0
Expansion slots (1st M.2 largest key size): 25110
Expansion slots (2nd M.2 highest PCI Express generation): 4.0
Expansion slots (2nd M.2 largest key size): 25110
Packaging content (Antenna included): Yes
Internal I/O (USB 3.2 Gen 2x2 connectors): 1
Rear panel I/O ports (Digital audio optical out): 1
