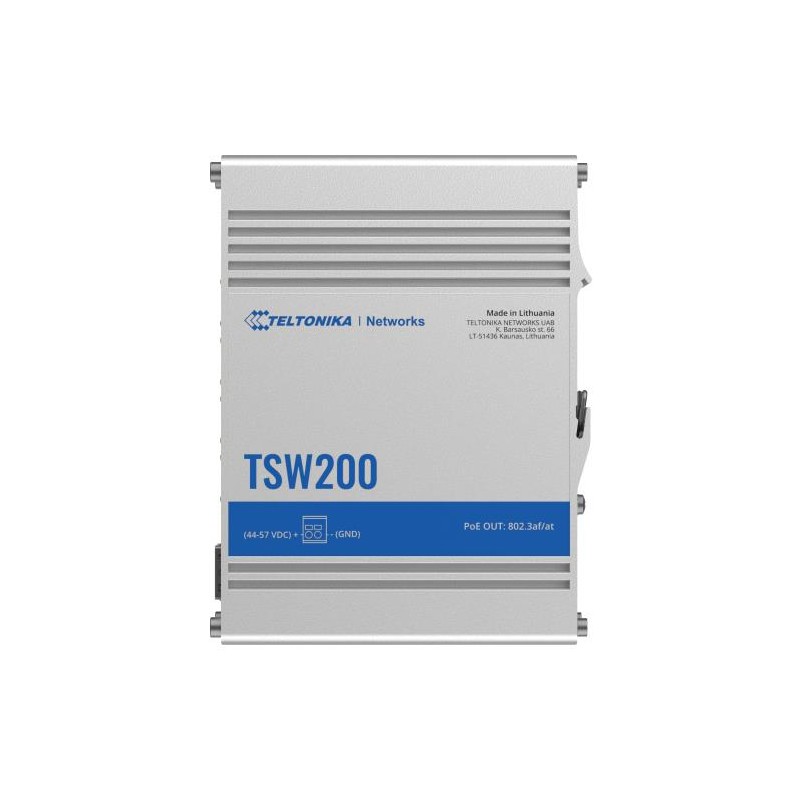

Switch|TELTONIKA|TSW2000000B0|PoE ports 8|240 Watts|TSW200

Viite TSW200

Tuotemerkki TELTONIKA

88,15 €

Sisältää alv:n

Määrä

Laos

Varastossa: 14 Tuotteet

Kuvaus
Tuotetiedot

Kuvaus

TSW200 is industrial unmanaged switch from Teltonika Networks.

TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.

Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.

This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

POE+
SFP
ETHERNET
DURABILITY
MOUNTING (DIN rail)
POWER BUDGET

Tuotetiedot

Tuotemerkki TELTONIKA

Viite TSW200

Varastossa 14 Tuotteet

Lisätiedot

Vendor Homepage: https://teltonika-networks.com/product/tsw200/
Model name: TSW2000000B0
Garantija: 24
Model: TSW200
Category Code: SWI
Unit Box Height: 0.146
Unit Box Length: 0.17
Unit Box Width: 0.07
Units per Shipping Box: 1
Unit Calculated Volume: 0.001737 cubm
Unit Calculated Weight: 0.6 kg
Summary: Teltonika TSW200. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 80
Weight & dimensions (Width): 95.1 mm
Weight & dimensions (Depth): 44.2 mm
Weight & dimensions (Height): 132 mm
Weight & dimensions (Weight): 456 g
Power (Power source): DC
Operational conditions (Operating temperature (T-T)): -40 - 75 C
Design (Product colour): Aluminium
Power (Power consumption (max)): 106 W
Power (Power consumption (typical)): 1.8 W
Design (Housing material): Aluminium
Design (LED indicators): LAN/PoE/Status
Design (International Protection (IP) code): IP30
Network (Networking standards): IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u
Management features (Switch type): Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 8
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Design (Rack mounting): Yes
Power (DC input voltage): 7 - 57 V
Power (Power supply included): No
Power over Ethernet (PoE) (Power over Ethernet (PoE)): Yes
Data transmission (MAC address table): 2000 entries
Data transmission (Packet buffer memory): 0.128 MB
Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity): 8
Power over Ethernet (PoE) (Power over Ethernet (PoE) voltage): 57 V
Network (Auto MDI/MDI-X): Yes
Data transmission (Jumbo frames): 9216
Data transmission (Jumbo frames support): Yes
Design (DIN rail mounting): Yes
Design (Wall mountable): Yes
Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget): 240 W
Ports & interfaces (SFP module slots quantity): 2
Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port): 30 W
