Switch|TP-LINK|24xRJ45|TL-SG1024

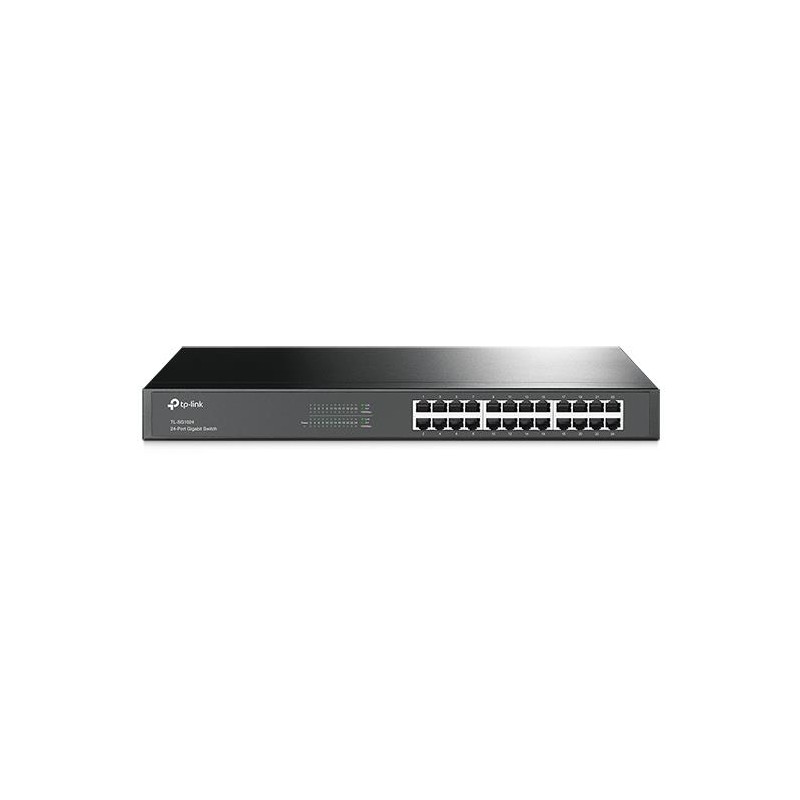

Name: Switch|TP-LINK|24xRJ45|TL-SG1024
Brand: TP-LINK
SKU: TL-SG1024
Price: 83.15 EUR
Availability: InStock

Viite TL-SG1024

Tuotemerkki TP-LINK

83,15 €

Sisältää alv:n

Määrä

Laos

Varastossa: 3 Tuotteet

Kuvaus
Tuotetiedot

Kuvaus

What This Product Does
The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance

24 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

Tuotetiedot

Tuotemerkki TP-LINK

Viite TL-SG1024

Varastossa 3 Tuotteet

Lisätiedot

Vendor Homepage: https://www.tp-link.com/products/productDetails.asp?class &content spe&pmodel TL-SG1024
Garantija: 60
Category Code: SWI
Unit Box Height: 0.25
Unit Box Length: 0.53
Unit Box Width: 0.08
Units per Shipping Box: 1
Unit Calculated Volume: 0.0106 cubm
Unit Calculated Weight: 2.52 kg
CnCode: 85176200
Summary: TP-Link 24-Port Gigabit Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching
Weight & dimensions (Width): 440 mm
Weight & dimensions (Depth): 180 mm
Weight & dimensions (Height): 44 mm
Packaging data (Package width): 250 mm
Packaging data (Package depth): 528 mm
Packaging data (Package height): 80 mm
Packaging data (Package weight): 2130 g
Packaging content (Cables included): AC
Power (Power source): AC
Operational conditions (Operating temperature (T-T)): 0 - 40 C
Operational conditions (Storage relative humidity (H-H)): 5 - 90 %
Operational conditions (Storage temperature (T-T)): -40 - 70 C
Design (Product colour): Black
Power (AC input frequency): 50 - 60 Hz
Power (AC input voltage): 100 - 240 V
Power (Power consumption (max)): 13.62 W
Certificates (Certification): FCC, CE, RoHS
Operational conditions (Operating relative humidity (H-H)): 10 - 90 %
Design (Form factor): 1U
Packaging content (User guide): Yes
Design (LED indicators): Yes
Network (Copper ethernet cabling technology): 1000BASE-T/100BASE-TX/10BASE-T
Network (Networking standards): IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Other features (Connectivity technology): Wired
Packaging content (Rack mount kit): Yes
Management features (Switch type): Unmanaged
Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity): 24
Ports & interfaces (Basic switching RJ-45 Ethernet ports type): Gigabit Ethernet (10/100/1000)
Network (10G support): No
Data transmission (Forwarding rate): 35.7 Mpps
Data transmission (Switching capacity): 48 Gbit/s
Design (Rack mounting): Yes
Power (Power supply included): Yes
Network (Flow control support): Yes
Data transmission (MAC address table): 8000 entries
Network (Auto MDI/MDI-X): Yes
Network (Full duplex): Yes
Data transmission (Jumbo frames): 10000
Data transmission (Jumbo frames support): Yes
Network (Auto-negotiation): Yes
Network (Half duplex): Yes
Data transmission (Store-and-forward): Yes
Operational conditions (Heat dissipation): 46.44 BTU/h
Data transmission (Maximum data transfer rate): 1 Gbit/s
Data transmission (Supported data transfer rates): 10/100/1000 Mbps
Protocols (Supported network protocols): CSMA/CD, TCP/IP
Management features (Quality of Service (QoS) support): Yes
Ports & interfaces (Gigabit Ethernet (copper) ports quantity): 24
Other features (Bandwidth): 48 Gbit/s
Other features (Connectivity LEDs): Y
Other features (Dimensions (W x D x H) (imperial)): 17.3 x 7.1 x 1.7 "
