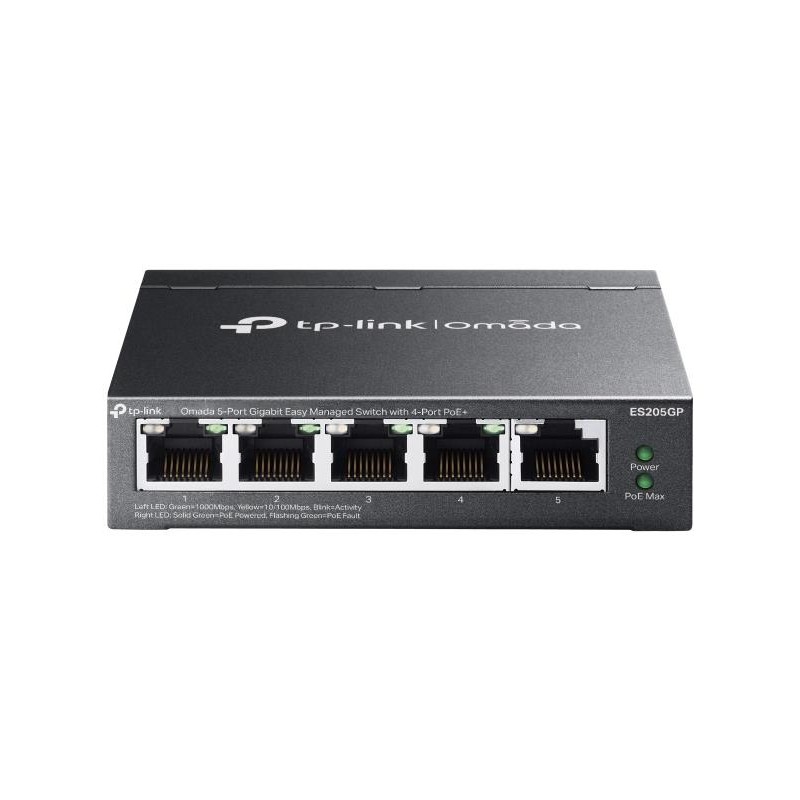

Switch|TP-LINK|OMADA|TP-LINK OMADA ES205GP|PoE ports 4|ES205GP

Lisätiedot

Vendor Homepage

https://www.tp-link.com/au/business-networking/omada-switch-easy-managed/es205g/ highlights

Model name

TP-LINK OMADA ES205GP

Garantija

60

Series

OMADA

Model

ES205GP

Category Code

SWI

Unit Box Height

0.127

Unit Box Length

0.195

Unit Box Width

0.12

Units per Shipping Box

1

Unit Calculated Volume

0.0029718 cubm

Unit Calculated Weight

0.76 kg

Summary

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switchin

Weight & dimensions (Width)

100 mm

Weight & dimensions (Depth)

98 mm

Weight & dimensions (Height)

25 mm

Power (Power source)

AC/DC

Packaging data (Package type)

Box

Certificates (Compliance certificates)

CE/Federal Communications Commission (FCC)/RoHS

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Packaging content (User guide)

Yes

Design (LED indicators)

Yes

Design (Reset button)

Yes

Network (Networking standards)

IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3at/IEEE 802.3x

Management features (Cloud-managed)

Yes

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

5

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

7.4 Mpps

Data transmission (Switching capacity)

10 Gbit/s

Power (DC input voltage)

53.5 V

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (VLAN support)

Yes

Security (DHCP features)

DHCP client

Data transmission (MAC address table)

8000 entries

Data transmission (Packet buffer memory)

4 MB

Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity)

4

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

15

Data transmission (Jumbo frames support)

Yes

Design (Wall mountable)

Yes

Network (Auto-negotiation)

Yes

Data transmission (Store-and-forward)

Yes

Performance (Fanless)

Yes

Management features (Quality of Service (QoS) support)

Yes

Network (Virtual LAN features)

MTU VLAN/Port-based VLAN/Tagged VLAN

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

65 W

Security (Loop protection)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)

30 W

Optical fiber (Transmission distance (max))

0.25 km

Security (IGMP snooping)

Yes

Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)

4

Tilausviitteet

EAN13

8885020620931

Valmistajan tuotenumero (MPN)

1428285
