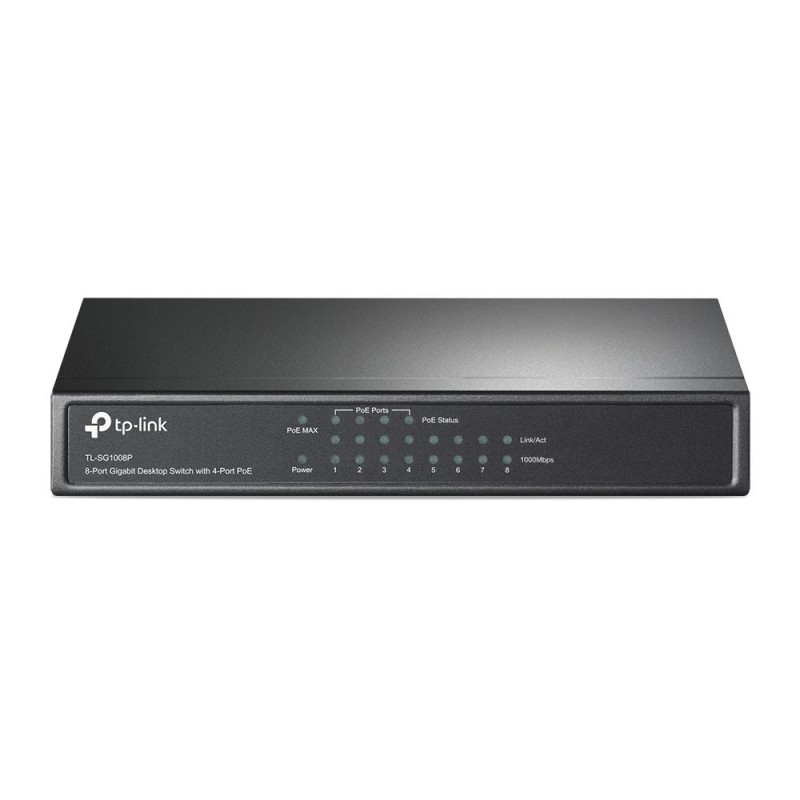

Verkkokytkin TP-LINK 8x10Base-T 100Base-TX 1000Base-T TL-SG1008P

Lisätiedot

Vendor Homepage

https://www.tp-link.com/uk/service-provider/unmanaged-switch/tl-sg1008p/

Model name

8-Port Gigabit Desktop PoE Switch with 4-Port

Garantija

60

Category Code

SWI

Unit Box Height

0.07

Unit Box Length

0.28

Unit Box Width

0.225

Units per Shipping Box

12

Unit Calculated Volume

0.005384 cubm

Unit Calculated Weight

1.08 kg

Summary

TP-Link 8-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity:

Weight & dimensions (Width)

171 mm

Weight & dimensions (Depth)

98 mm

Weight & dimensions (Height)

27 mm

Packaging data (Package width)

223 mm

Packaging data (Package depth)

280 mm

Packaging data (Package height)

68 mm

Packaging data (Package weight)

1250 g

Packaging content (Cables included)

AC

Power (Power source)

DC/PoE

Packaging data (Package type)

Box

Certificates (Compliance certificates)

CE/Federal Communications Commission (FCC)/RoHS

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Sustainability (Sustainability compliance)

Yes

Design (Product colour)

Grey

Power (AC input frequency)

50/60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (max))

75 W

Design (Housing material)

Metal

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Power (Input current)

1.31 A

Packaging content (User guide)

Yes

Design (LED indicators)

Yes

Network (Copper ethernet cabling technology)

1000BASE-T/100BASE-TX/10BASE-T

Network (Networking standards)

IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Power (Number of power supply units)

1

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

8

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

11.904 Mpps

Data transmission (Switching capacity)

16 Gbit/s

Design (Rack mounting)

No

Power (DC input voltage)

53.5 V

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Flow control support)

Yes

Ports & interfaces (Power connector)

DC-in jack

Network (Cable types supported)

Cat3/Cat4/Cat5/Cat5e

Data transmission (MAC address table)

4000 entries

Power over Ethernet (PoE) (Power over Ethernet (PoE) ports quantity)

4

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

16000

Data transmission (Jumbo frames support)

Yes

Design (Stackable)

No

Network (Auto-negotiation)

Yes

Data transmission (Store-and-forward)

Yes

Operational conditions (Heat dissipation)

225.75 BTU/h

Performance (Fanless)

Yes

Management features (Quality of Service (QoS) support)

No

Ports & interfaces (Gigabit Ethernet (copper) ports quantity)

8

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

64 W

Security (IGMP snooping)

Yes

Network (MAC address auto-aging supported)

Yes

Network (MAC address auto-learning supported)

Yes

Performance (Maximum cable length)

100 m

Tilausviitteet

EAN13

6935364021160

Valmistajan tuotenumero (MPN)

1140617
