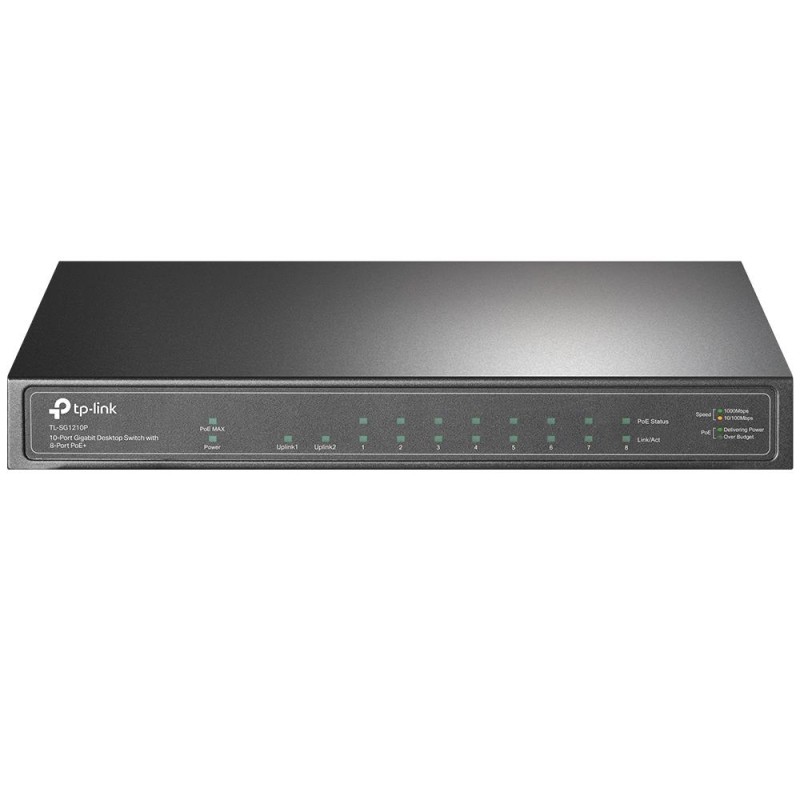

Verkkokytkin TP-LINK TL-SG1210P Desktop pedestal 9x10Base-T 100Base-TX 1000Base-T 1xSFP PoE+ ports 8 TL-SG1210P

Lisätiedot

Vendor Homepage

https://www.tp-link.com/en/business-networking/unmanaged-switch/tl-sg1210p/

Model name

TL-SG1210P

Garantija

60

Category Code

SWI

Unit Box Height

0.24

Unit Box Length

0.315

Unit Box Width

0.065

Units per Shipping Box

1

Unit Calculated Volume

0.004914 cubm

Unit Calculated Weight

1.28 kg

Summary

TP-Link TL-SG1210P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards:

Weight & dimensions (Width)

209 mm

Weight & dimensions (Depth)

126 mm

Weight & dimensions (Height)

26 mm

Packaging content (Quick start guide)

Yes

Packaging content (Cables included)

AC

Logistics data (Harmonized System (HS) code)

85176990

Operational conditions (Operating temperature (T-T))

0 - 50 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Grey

Power (Power consumption (max))

78.13 W

Power (Power consumption (typical))

7.11 W

Design (Housing material)

Metal

Certificates (Certification)

CE, FCC, RoHS

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Power (Input current)

1.31 A

Packaging content (User guide)

Yes

Design (LED indicators)

Yes

Network (Copper ethernet cabling technology)

1000BASE-T/100BASE-TX/10BASE-T

Network (Networking standards)

IEEE 802.1p/IEEE 802.3af/IEEE 802.3at/IEEE 802.3x

Management features (Switch type)

Unmanaged

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

9

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Switching capacity)

20 Gbit/s

Power (DC input voltage)

53.5 V

Power (Power supply included)

No

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Data transmission (MAC address table)

4000 entries

Network (Auto MDI/MDI-X)

Yes

Design (Wall mountable)

Yes

Network (Auto-negotiation)

Yes

Data transmission (Store-and-forward)

Yes

Operational conditions (Heat dissipation)

266.42 BTU/h

Performance (Fanless)

Yes

Management features (Quality of Service (QoS) support)

Yes

Ports & interfaces (Gigabit Ethernet (copper) ports quantity)

9

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

63 W

Ports & interfaces (SFP module slots quantity)

1

Security (IGMP snooping)

Yes

Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)

8

Network (MAC address auto-aging supported)

Yes

Network (MAC address auto-learning supported)

Yes

Optical fiber (Fiber ethernet cabling technology)

1000BASE-X

Optical fiber (Fiber type)

Single-mode

Tilausviitteet

EAN13

6935364052980

Valmistajan tuotenumero (MPN)

1291712
