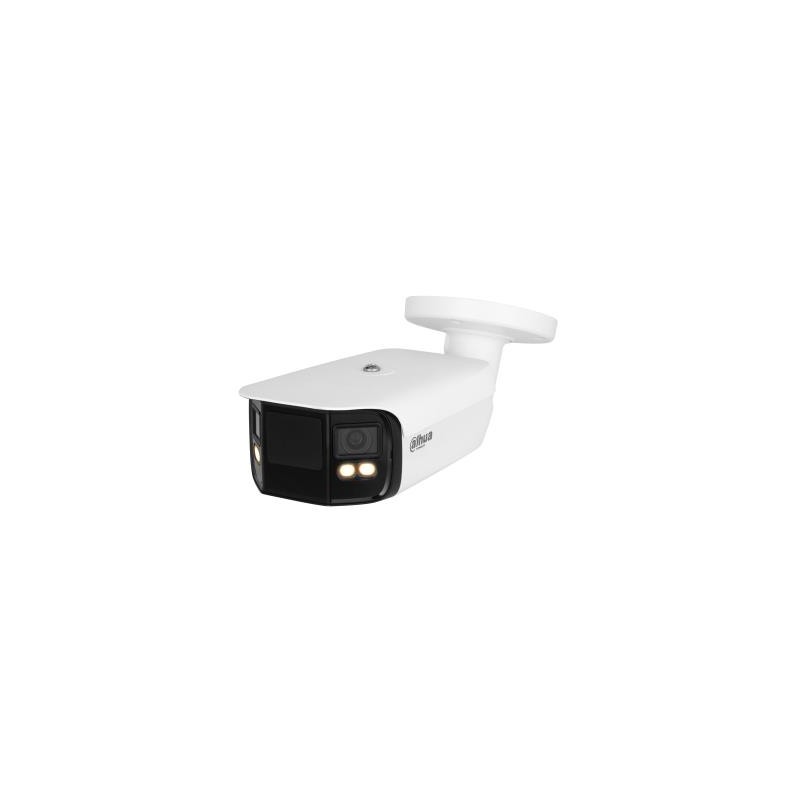

NET CAMERA 8MP IR BULLET/IPC-PFW5849-A180-E2-ASTE DAHUA

Lisainfo

Müüja koduleht

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-Series/5-Series/Full-color/IPC-PFW5849-A180-E2-ASTE

Garantija

36

Category Code

FNC

Unit Box Height

0.18

Unit Box Length

0.365

Unit Box Width

0.175

Units per Shipping Box

1

Unit Calculated Volume

0.0115 cubm

Unit Calculated Weight

1.84 kg

Summary

Dahua Technology WizMind IPC-PFW5849-A180-E2-ASTE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Bullet. Angle of rotation: 360 , Lens viewing

Weight & dimensions (Width)

128.2 mm

Weight & dimensions (Depth)

301.2 mm

Weight & dimensions (Height)

120.1 mm

Weight & dimensions (Weight)

1420 g

Packaging data (Package weight)

1570 g

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage temperature (T-T))

-40 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

10.5 W

Power (Power consumption (typical))

4.8 W

Design (Housing material)

Metal/Plastic

Other features (Warranty period)

5 year(s)

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Bullet

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Wall/Pole

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, horizontal)

180

Camera (Lens viewing angle, vertical)

48

Image sensor (Optical sensor size)

1/1.8 "

Lens system (Number of lenses)

2

Night vision (Night vision)

Yes

Night vision (Night vision distance)

40 m

Video (Frame rate)

25 fps

Video (Maximum resolution)

4096 x 1800 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Lens system (Fixed focal length)

3.6 mm

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1

Video (Gain control type)

Auto

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Performance (Built-in light)

Yes

Video (Video compression formats)

H.264/H.264+/H.264H/H.265/H.265+

Image sensor (Number of sensors)

2

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 90

Camera (White balance)

Auto/Manual/Natural/Outdoor/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1920 x 832/2880 x 1264/3840 x 1080/3840 x 1680/4096 x 1800

Video (Video formats supported)

H.264/H.264+/H.265/H.265+/M-JPEG

Video (Video streaming)

Yes

Audio (Audio formats supported)

G.711/G.723/G.726/PCM

Audio (Signal-to-Noise Ratio (SNR))

56 dB

Network (Quality of Service (QoS) support)

Yes

Network (Supported network protocols)

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP Bonjour

Storage (Internal memory)

1000 MB

Storage (ROM capacity)

128 MB

Management features (Management software)

Smart PSS DSS DMSS

Management features (Web browser)

Yes

Lens system (Closest focusing distance)

3.6 m

Network (Number of users)

20 user(s)

Security (Privacy protection)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

5.5 W

Performance (Dynamic range)

140 dB

Lens system (Detect distance)

70.3 m

Lens system (Identify distance)

7 m

Lens system (Observe distance)

28.1 m

Lens system (Recognize distance)

14.1 m

Video (Bit rate)

H.264: 9 kbps-8192 kbps H.265: 9 kbps-8192 kbps

Video (Video recording)

Yes

Camera (Number of Privacy masking areas)

4

Eriviited

ean13

6923172582485

MPN

1381450
