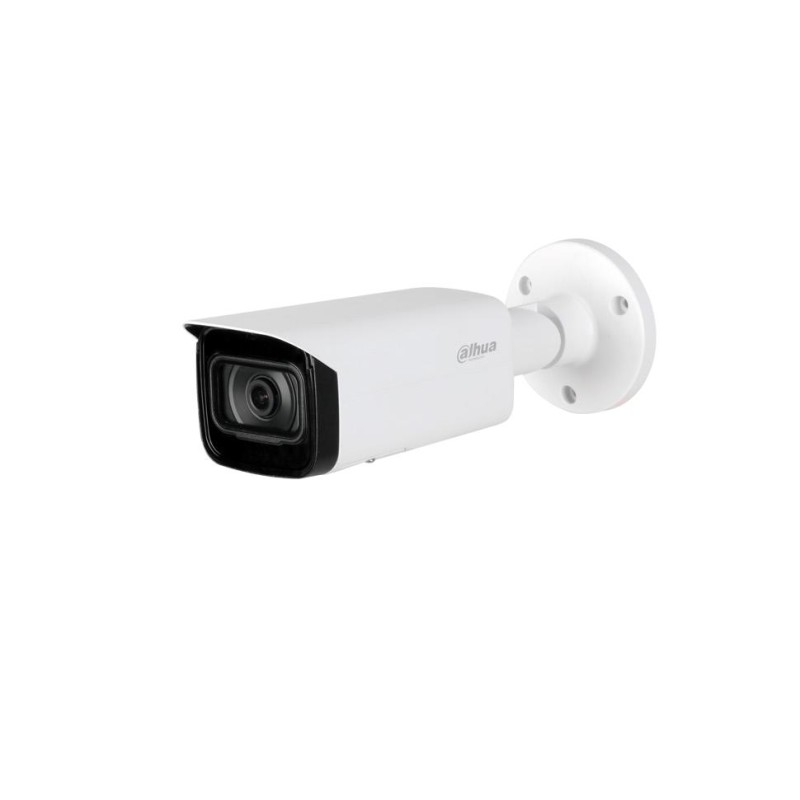

Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc.The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way
1/2.7” 5Megapixel progressive scan CMOS H.265&H.264 triple-stream encoding 20fps@2592×1944 WDR(120dB), Day/Night(ICR), 3D DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8mm fixed lens (3.6mm, 6mm, 8mm, 12mm optional) 1/1 Alarm in/out, 1/1 audio in/out Max. IR LEDs Length 78m Micro SD memory, IP67
Üldine informatsioon
Tootekood
IPC-HFW5541T-ASE-0280B-S3
Tarneaeg 2-5 tööpäeva.
50 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/
Garantija
36
Mudel
IPC-HFW5541T-ASE-0280B-S3
Category Code
FNC
Unit Box Height
0.11
Unit Box Length
0.3
Unit Box Width
0.12
Units per Shipping Box
10
Unit Calculated Volume
0.004742 cubm
Unit Calculated Weight
1.33 kg
Summary
Dahua Technology Pro DH-IPC-HFW5541T-ASE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360 , Lens viewing angle, horizon
Weight & dimensions (Width)
79 mm
Weight & dimensions (Depth)
75.9 mm
Weight & dimensions (Weight)
815 g
Packaging data (Package weight)
1080 g
Performance (Certification)
CE-LVD:EN60950-1 CE-EMC 2014/30/EU FCC:47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Operational conditions (Operating temperature (T-T))
-30 - 60 C
Operational conditions (Storage relative humidity (H-H))
10 - 95 %
Operational conditions (Storage temperature (T-T))
5 - 40 C
System requirements (Mobile operating systems supported)
Android/iOS
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
7.1 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Operational conditions (Operating relative humidity (H-H))
10 - 95 %
Design (Form factor)
Bullet
Weight & dimensions (Length)
244.1 mm
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
256 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/wall
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Infrared (IR) cut-off filter)
Yes
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, horizontal)
84
Camera (Lens viewing angle, vertical)
58
Image sensor (Optical sensor size)
1/2.7 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
78 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2592 x 1944 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
5 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Intrusion/People counting/Scene change/Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Fixed focal length)
3.6 mm
Audio (Audio input channels)
1.0 channels
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
1.6
Video (Flip & mirror)
Yes
Video (Gain control type)
Auto/Manual
Camera (Camera shutter type)
Electronic/Mechanical
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.264+/H.265/H.265+/M-JPEG
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 90
Camera (White balance)
Auto/Manual/Natural/Outdoor
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2592 x 1944/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Video (Video streaming)
Yes
Audio (Audio formats supported)
AAC
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast/Unicast
Network (Supported network protocols)
HTTP TCP ARP RTSP RTP UDP RTCP SMTP FTP DHCP DNS DDNS PPPoE IPv4/v6 SNMP QoS UPnP NTP
Storage (Internal memory)
512 MB
Storage (ROM capacity)
128 MB
Lens system (Closest focusing distance)
1.6 m
Night vision (Number of illumination LEDs)
4
Network (Number of users)
20 user(s)
Security (Mirror)
Yes
Management features (Web-based management)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
8.4 W
Lens system (Detect distance)
80 m
Lens system (Identify distance)
8 m
Lens system (Observe distance)
32 m
Lens system (Recognize distance)
16 m
Video (Bit rate)
32- 8192Kbps, 19- 8192Kbps
Video (Supported video modes)
1080p/720p
Audio (Voice codecs)
G.711a/G.711Mu/G.723/G.726
Network (Networking standards)
IEEE 802.3af
Eriviited
ean13
6923172584335
MPN
1404932
