Kirjeldus
4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Supports max. 256 G Micro SD card; built in MIC 12 VDC/PoE power supply, easy for installation IP67 protection
Üldine informatsioon
Tootekood
IPC-HDW2449TM-S-IL-0360B
Tarneaeg 2-5 tööpäeva.
30 Tooted
Lisainfo
Müüja koduleht
https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2449TM-S-IL
Garantija
36
Mudel
DHI-IPC-HDW2449TM-S-IL-0360B
Category Code
FNC
Unit Box Height
0.115
Unit Box Length
0.14
Unit Box Width
0.14
Units per Shipping Box
20
Unit Calculated Volume
0.00273 cubm
Unit Calculated Weight
0.71 kg
Summary

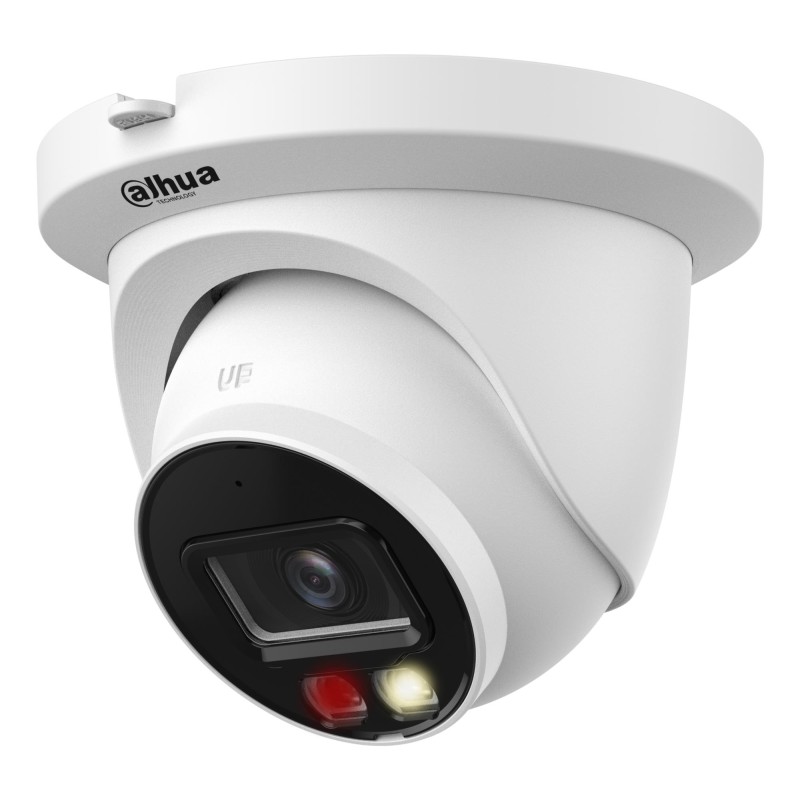

Dahua Technology WizSense IPC-HDW2449TM-S-IL-0360B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotatio
Weight & dimensions (Height)
99.1 mm
Weight & dimensions (Weight)
460 g
Packaging data (Package weight)
650 g
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
121.9 mm
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
4.4 W
Power (Power consumption (typical))
2.1 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal/Plastic
Packaging content (Manual)
Yes
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
256 GB
Power (Power source type)
DC,PoE
Sustainability (Compliance certificates)
CE/Federal Communications Commission (FCC)/UL
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Storage (RAM capacity)
128 MB
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
94
Camera (Lens viewing angle, horizontal)
78
Camera (Lens viewing angle, vertical)
41
Image sensor (Optical sensor size)
1/2.9 "
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
30 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2688 x 1520 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Fixed focal length)
3.6 mm
Camera (Minimum illumination)
0.0006 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Lens system (Fixed focus)
Yes
Lens system (Maximum aperture number)
1.6
Video (Gain control type)
Auto/Manual
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265/M-JPEG
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 78
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711/G.711 -law/G.726/PCM
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, ICMP, IGMP, P2P
Storage (ROM capacity)
128 MB
Lens system (Closest focusing distance)
1.6 m
Night vision (Number of illumination LEDs)
2
Security (Mirror)
Yes
Performance (Dynamic range)
120 dB
Lens system (Detect distance)
85.4 m
Lens system (Identify distance)
8.5 m
Lens system (Observe distance)
34.2 m
Lens system (Recognize distance)
17.1 m
Video (Video recording)
Yes
Security (IP address filtering)
Yes
Network (Networking standards)
IEEE 802.1x/IEEE 802.3af
Camera (Number of Privacy masking areas)
4
Night vision (Colour night vision distance)
30 m
Security (Human and vehicle targets classification)
Yes
Eriviited
ean13
6923172580375
MPN
1453096
