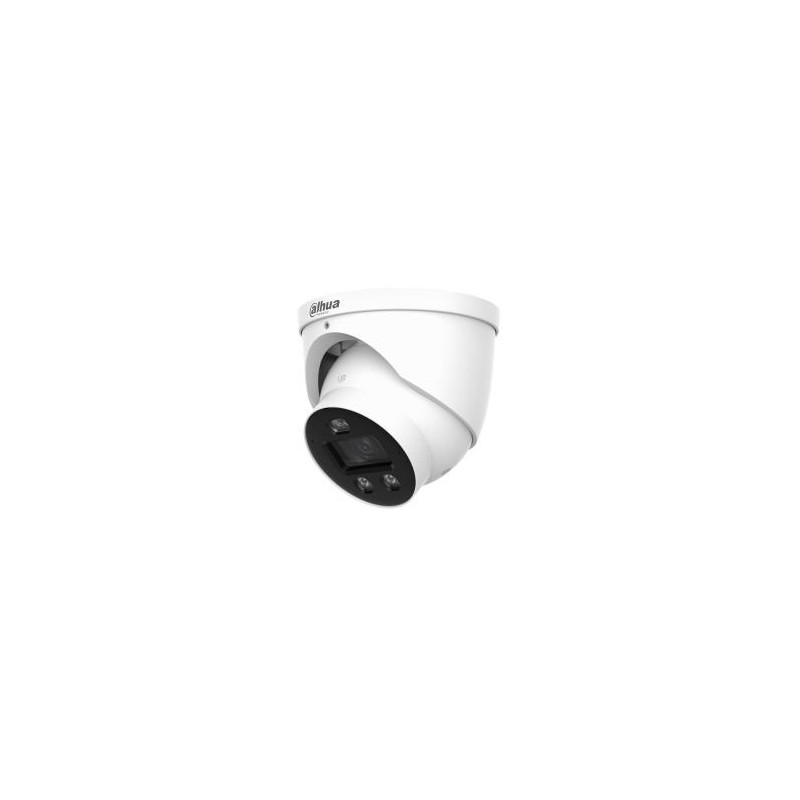

NET CAMERA 6MP IR EYEBALL/HDW3649H-ASPV0280B-PRO DAHUA

Lisainfo

Müüja koduleht

https://www.dahuasecurity.com/la/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HDW3649H-AS-PV-PRO

Garantija

36

Mudel

HDW3649H-ASPV0280B-PRO

Category Code

FNC

Unit Box Height

0.14

Unit Box Length

0.16

Unit Box Width

0.16

Units per Shipping Box

1

Unit Calculated Volume

0.003584 cubm

Unit Calculated Weight

1 kg

Summary

Dahua Technology WizSense HDW3649H-AS-PV-PRO. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.0003 lx, Angle

Weight & dimensions (Height)

110.9 mm

Weight & dimensions (Weight)

745 g

Packaging data (Package weight)

915 g

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage temperature (T-T))

-40 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Weight & dimensions (Diameter)

122 mm

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

8.3 W

Power (Power consumption (typical))

3.7 W

Design (Housing material)

Metal

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Turret

Camera (Camera shutter speed)

1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

256 GB

Power (Power source type)

DC,PoE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Storage (RAM capacity)

512 MB

Network (Ethernet interface type)

Fast Ethernet

Security (Security algorithms)

HTTPS

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/wall

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Image sensor (Optical sensor size)

1/2.7 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR/White

Night vision (Night vision)

Yes

Night vision (Night vision distance)

30 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

3200 x 1800 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Total megapixels)

6 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Intrusion/Tripwire

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.0003 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Lens system (Fixed focus)

Yes

Video (Gain control type)

Auto/Manual

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG

Image sensor (Number of sensors)

1

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 78

Camera (White balance)

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/1536 x 2048/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/2880 x 1620/3200 x 1800/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576

Video (Video streaming)

Yes

Audio (Audio formats supported)

G.711 -law/G.711 A-law/G.723/G.726/PCM

Audio (Signal-to-Noise Ratio (SNR))

56 dB

Network (Supported network protocols)

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP

Storage (ROM capacity)

128 MB

Management features (Management software)

Smart PSS DSS DMSS

Video (Smart IR)

Yes

Night vision (Number of illumination LEDs)

2

Network (Number of users)

20 user(s)

Security (Mirror)

Yes

Management features (Web-based management)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

4.8 W

Camera (Number of Privacy masking areas)

8

Security (Digital watermark)

Yes

Eriviited

ean13

6939554976247

MPN

1426939
