Kirjeldus

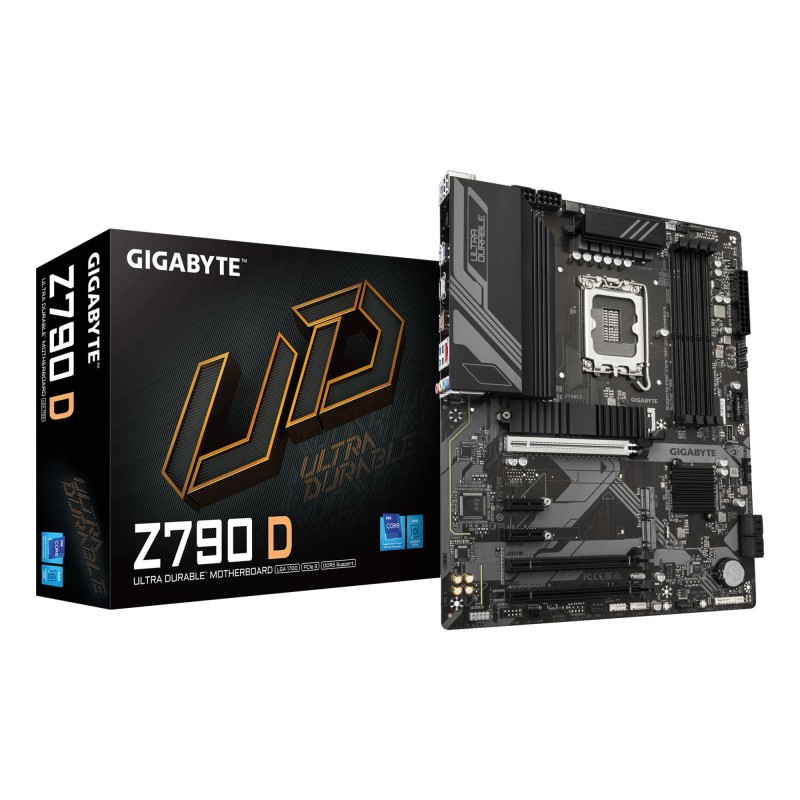

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Supports Intel Core 14th/ 13th /12th processors Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design Fast Networks：2.5GbE LAN Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Üldine informatsioon
Tootekood
Z790 D 1.2
Tarneaeg 2-5 tööpäeva.
14 Tooted
Lisainfo
Müüja koduleht
https://www.gigabyte.com
Garantija
36
Mudel
Z790 D (rev. 1.2)
Category Code
MBI
Unit Box Height
0.081
Unit Box Length
0.338
Unit Box Width
0.27
Units per Shipping Box
8
Unit Calculated Volume
0.01002 cubm
Unit Calculated Weight
1.81 kg
CnCode
84733020
Summary
GIGABYTE Z790 D Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+ Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Ce
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
305 mm
Weight & dimensions (Depth)
244 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
335 mm
Packaging data (Package depth)
270 mm
Packaging data (Package height)
80 mm
Packaging data (Package weight)
1802.5 g
Packaging content (Cables included)
SATA
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Features (Product colour)
Brown
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Logistics data (Country of origin)
China
Processor (Processor manufacturer)
Intel
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security (OEM version) LAN bandwidth management software
Memory (Maximum internal memory)
192 GB
Memory (Memory channels)
Dual-channel
Expansion slots (PCI Express x16 (Gen 5.x) slots)
1
Battery (Battery weight)
3 g
Processor (Compatible processor series)
Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
Processor (Processor socket)
LGA 1700
Processor (Supported processor sockets)
LGA 1700
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speed (max))
7600 MHz
Memory (Supported memory clock speeds)
4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
7
Storage controllers (Supported storage drive interfaces)
M.2,PCI Express 4.0,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (DisplayPorts quantity)
1
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Microphone in)
Yes
Rear panel I/O ports (USB 2.0 ports quantity)
2
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
1
Rear panel I/O ports (WiFi-AP antenna jack)
2
Network (Ethernet interface type)
2.5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
Intel Z790 Express
Features (Motherboard chipset family)
Intel
Features (Motherboard form factor)
ATX
Features (Windows operating systems supported)
Windows 10 x64/Windows 11 x64
Expansion slots (Number of M.2 (M) slots)
3
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
BIOS (Clear CMOS button)
Yes
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Internal I/O (Thunderbolt headers)
2
Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
1
Rear panel I/O ports (DisplayPort version)
1.2
Rear panel I/O ports (HDMI version)
2.1
Rear panel I/O ports (S/PDIF out port)
Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
4
Features (Audio chip)
Realtek ALC897
Features (Power source type)
ATX
Processor (Maximum internal memory supported by processor)
192 GB
Memory (Supported memory module capacities)
12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
Graphics (DirectX version)
12.0
Internal I/O (Total number of SATA connectors)
4
Features (PC health monitoring)
Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
ECC & Non-ECC
Graphics (Discrete graphics support)
Yes
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2304 pixels
Expansion slots (PCI Express x16 (Gen 3.x) slots)
1
Packaging content (Antenna included)
Yes
Rear panel I/O ports (USB connector type)
USB Type-A/USB Type-C
Expansion slots (PCI Express x1 (Gen 3.x) slots)
2
Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)
1
Processor (Maximum number of SMP processors)
1
Internal I/O (Number of EATX power connectors)
2
Eriviited
ean13
4719331861186
MPN
1450931
