Kirjeldus
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Supports Intel Core 14th/ 13th /12th processors Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution Dual Channel DDR4：4*DIMMs XMP Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors M.2 Thermal Guard：To Ensure M.2 SSD Performance EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design Fast Networks：2.5GbE LAN Extended Connectivity：Rear USB-C 10Gb/s, DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Üldine informatsioon
Tootekood
B760MDS3HDDR4
Tarneaeg 2-5 tööpäeva.
2 Tooted
Lisainfo
Müüja koduleht
https://www.gigabyte.com
Garantija
36
Mudel
B760M DS3H DDR4
Category Code
MBI
Unit Box Height
0.27
Unit Box Length
0.27
Unit Box Width
0.055
Units per Shipping Box
1
Unit Calculated Volume
0.00401 cubm
Unit Calculated Weight
0.92 kg
CnCode
84733020
Summary

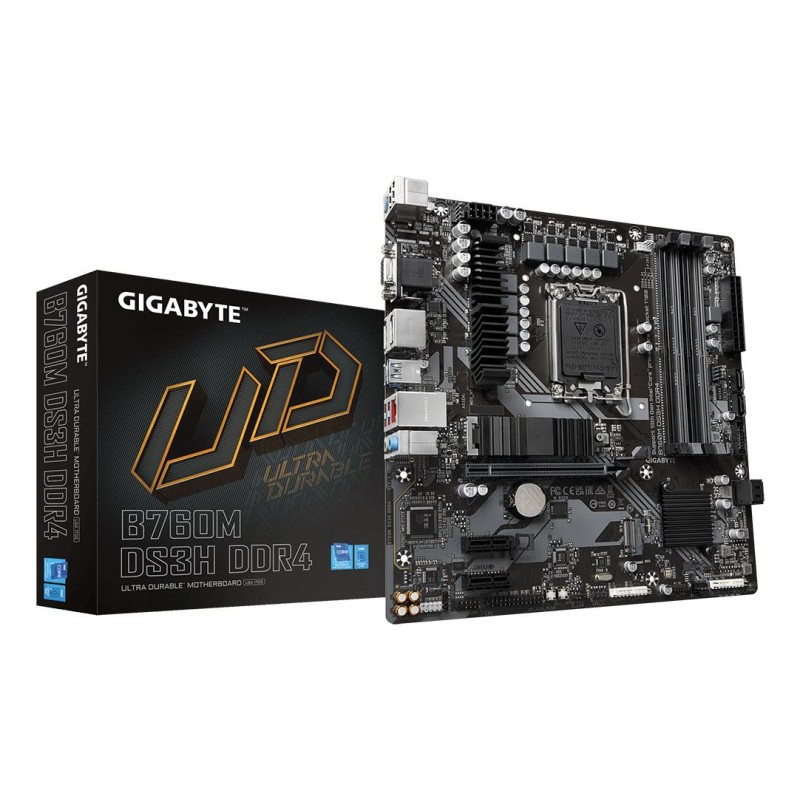

GIGABYTE B760M DS3H DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series:
Battery (Battery technology)
Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width)
244 mm
Weight & dimensions (Depth)
244 mm
Weight & dimensions (Height)
35 mm
Packaging data (Package width)
265 mm
Packaging data (Package depth)
265 mm
Packaging data (Package height)
54 mm
Packaging data (Package weight)
990 g
Battery (Battery type)
CR2032
Technical details (Warranty period)
3 year(s)
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Features (Product colour)
Brown
Logistics data (Products per shipping (inner) case)
1 pc(s)
Packaging content (Batteries included)
Yes
Logistics data (Country of origin)
China
Processor (Processor manufacturer)
Intel
Features (Component for)
PC
Packaging content (Bundled software)
Norton Internet Security
Memory (Maximum internal memory)
128 GB
Memory (Memory channels)
Dual-channel
Graphics (On-board graphics card)
No
Battery (Battery weight)
3 g
Processor (Compatible processor series)
Intel Celeron /Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
Processor (Processor socket)
LGA 1700
Processor (Supported processor sockets)
LGA 1700
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory clock speed (max))
5333 MHz
Memory (Supported memory clock speeds)
2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Memory (Supported memory types)
DDR4-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
6
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (EPS power connector (8-pin))
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
3
Internal I/O (Number of SATA III connectors)
4
Internal I/O (RGB LED pin header)
Yes
Internal I/O (S/PDIF out connector)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
1
Rear panel I/O ports (DisplayPorts quantity)
2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (Headphone outputs)
1
Rear panel I/O ports (Line-in)
Yes
Rear panel I/O ports (PS/2 ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
2
Network (Ethernet interface type)
2.5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
Intel B760 Express
Features (Motherboard chipset family)
Intel
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 10/Windows 11
Expansion slots (Number of M.2 (M) slots)
2
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
128 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
3
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
1
Features (Power source type)
ATX
Processor (Maximum internal memory supported by processor)
128 GB
Memory (Supported memory module capacities)
12GB/16GB/1GB/2GB/32GB/4GB/8GB
Graphics (DirectX version)
12.0
Internal I/O (Total number of SATA connectors)
4
Features (PC health monitoring)
Fan/Temperature/Voltage/Water cooling
BIOS (ACPI version)
5.0
BIOS (Clear CMOS jumper)
Yes
BIOS (Desktop Management Interface (DMI) version)
2.7
BIOS (System Management BIOS (SMBIOS) version)
2.7
Battery (Lithium weight per battery)
0.07 g
Battery (Number of battery cells)
1
Memory (ECC сompatibility)
Non-ECC
Graphics (HDCP)
Yes
Graphics (Maximum resolution)
4096 x 2304 pixels
Internal I/O (Serial port headers)
1
Expansion slots (PCI Express x16 (Gen 3.x) slots)
1
Graphics (Number of displays supported)
4
Internal I/O (Parallel connector)
Yes
Rear panel I/O ports (VGA (D-Sub) ports quantity)
1
Eriviited
ean13
4719331850876
MPN
1388806
