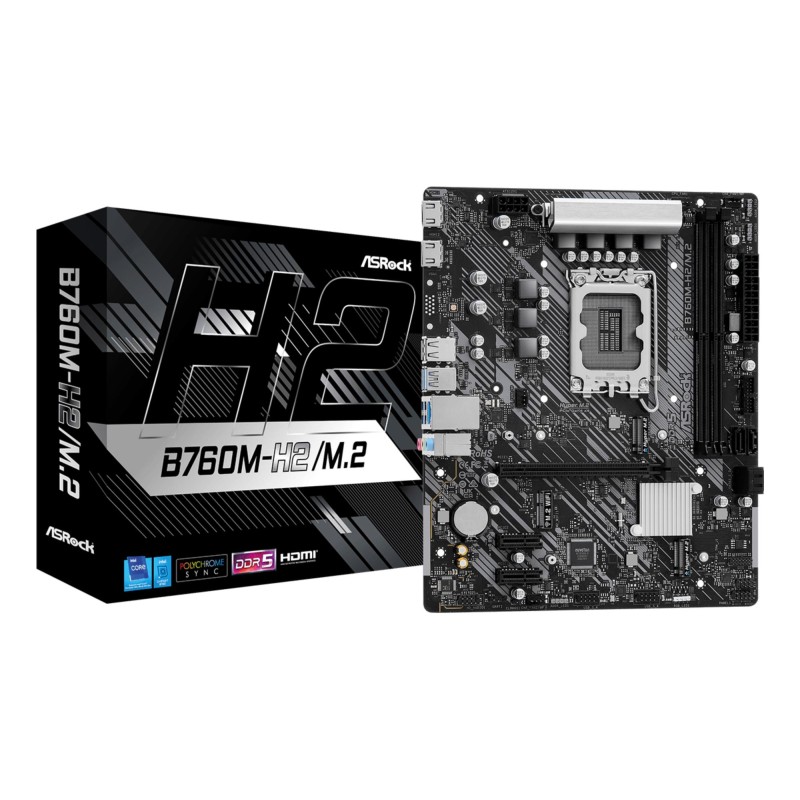

Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|3xM.

Lisainfo

Müüja koduleht

https://www.asrock.com/MB/Intel/B760M-H2M.2/index.asp Overview

Garantija

36

Mudel

B760M-H2/M.2

Category Code

MBI

Unit Box Height

0.24

Unit Box Length

0.275

Unit Box Width

0.065

Units per Shipping Box

20

Unit Calculated Volume

0.004299 cubm

Unit Calculated Weight

0.862 kg

Summary

Asrock B760M-H2/M.2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

201 mm

Packaging content (Cables included)

SATA

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Processor (Processor manufacturer)

Intel

Features (Certification)

- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Features (Component for)

PC

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Processor (Compatible processor series)

Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9

Processor (Processor socket)

LGA 1700

Processor (Supported processor sockets)

LGA 1700

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

7200 MHz

Memory (Supported memory clock speeds)

5600/6800/7200 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

6

Storage controllers (Number of storage drives supported)

4

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

4

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

2

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B760

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

2

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (BIOS memory size)

128 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Internal I/O (Chassis intrusion connector)

Yes

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

4

Features (Audio chip)

Realtek ALC897

Processor (Maximum internal memory supported by processor)

128 GB

Internal I/O (Total number of SATA connectors)

4

Memory (ECC сompatibility)

Non-ECC

Graphics (HDCP)

Yes

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)

1

Expansion slots (PCI Express x1 (Gen 3.x) slots)

2

Processor (Maximum number of SMP processors)

1

Eriviited

ean13

4710483944215

MPN

1409821
