Kirjeldus

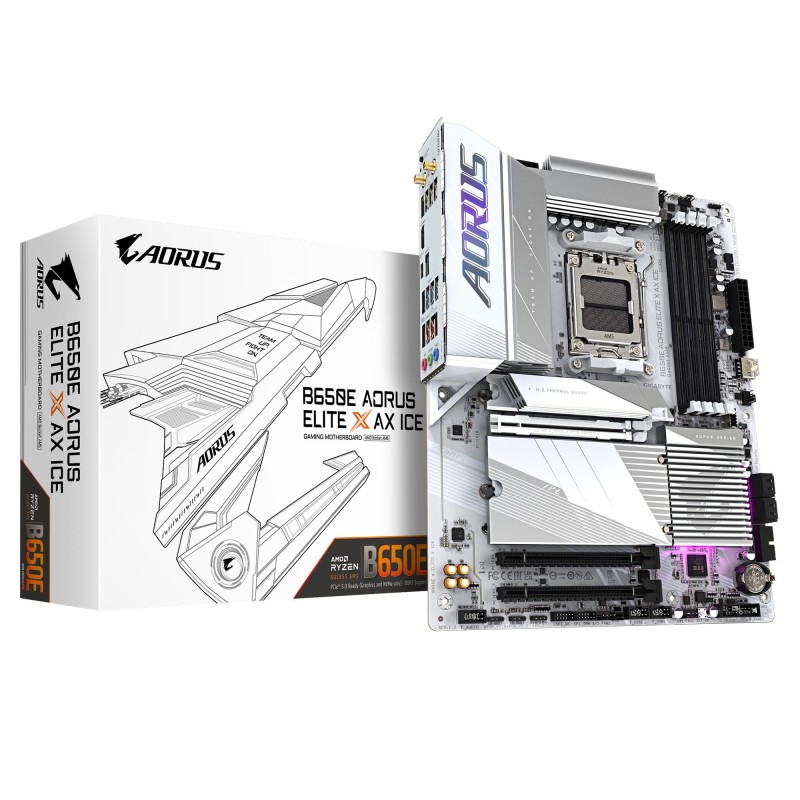

B650E AORUS ELITE X AX ICE
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x16
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
- Extended Connectivity：HDMI, Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s
- Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors
Üldine informatsioon
B650E A ELITE X ICE 1.2
6 Tooted
Lisainfo
- Müüja koduleht
- www.gigabyte.com/Motherboard/B650E-AORUS-ELITE-X-AX-ICE-rev-12
- Vormitegur
- ATX
- Pistikupesa
- SAM5
- Sisend / väljund pistikud (USB 2.0)
- 4
- Liides (SATA)
- Yes
- Mälu tüüp
- DDR5
- Sageduse kiirus
- 4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
- Liides (USB 2.0)
- Yes
- Sisend / väljund pistikud (RJ45)
- 1
- Sisend / väljund pistikud (HDMI)
- 1
- Integreeritud LAN
- 2.5 Gigabit
- Liides (Bluetooth)
- Yes
- Liides (WiFi)
- Yes
- Kiibistik
- AMD B650
- Integreeritud video
- Depending on CPU
- Mälupesad
- 4
- Laienduspesad (PCI-Express 16x)
- 1
- RAID
- SATA 0, 1, 10 NVMe 0, 1, 10
- TPM
- Header
- Laienduspesad (PCI-Express 3.0 16x)
- 2
- Laienduspesad (M.2)
- 3
- Sisend / väljund pistikud (DisplayPort)
- 1
- Sisend / väljund pistikud (heliport)
- 3
- Liides (USB-C)
- Yes
- Garantija
- 36
- Sisend / väljund pistikud (USB 3.2)
- 7
- Liides (USB 3.2)
- Yes
- Mudel
- B650E A ELITE X ICE
- Category Code
- MBA
- Input/Output connectors (USB-C)
- 1
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.0104127 cubm
- Product Net Weight
- 0.97 kg
- Unit Calculated Weight
- 2.4333333 kg
Eriviited
- ean13
- 4719331860554
- MPN
- 1451395
