Kirjeldus

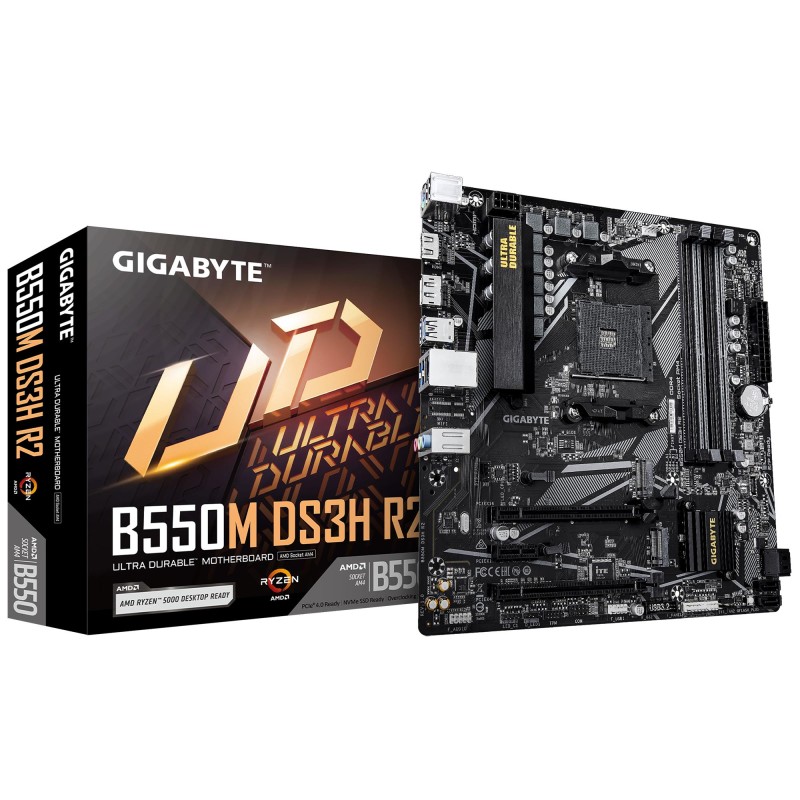

B550M DS3H R2
- AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
- Digital 5+3 phases VRM solution
- Dual Channel DDR4：4*DIMMs
- EZ-Latch：PCIe slots with Quick Release Design
- Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal：VRM Thermal Armor Advanced
- Fast Networking：GbE LAN
- Extended Connectivity：HDMI, Displayport
- PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Üldine informatsioon
B550M DS3H R2
8 Tooted
Lisainfo
- Müüja koduleht
- www.gigabyte.com/Motherboard/B550M-DS3H-R2
- Vormitegur
- Micro-ATX
- Pistikupesa
- SAM4
- Sisend / väljund pistikud (USB 2.0)
- 2
- Liides (SATA)
- Yes
- Mälu tüüp
- DDR4
- Sageduse kiirus
- 2133/2400/2667/2933/3200/3400/3466/3600/3733/4000/4133/4266/4400/4600/4733 MHz
- Liides (USB 2.0)
- Yes
- Sisend / väljund pistikud (RJ45)
- 1
- Sisend / väljund pistikud (HDMI)
- 1
- Integreeritud LAN
- Gigabit
- Liides (Bluetooth)
- Yes
- Liides (WiFi)
- Yes
- Kiibistik
- AMD B550
- Integreeritud heli
- Realtek ALC1220
- Integreeritud video
- Depending on CPU
- Mälupesad
- 4
- Sisend / väljund pistikud (PS / 2)
- 1
- RAID
- SATA 0, 1, 10 NVMe 0, 1, 10
- Laienduspesad (PCI-Express 3.0 16x)
- 1
- Laienduspesad (M.2)
- 1
- Sisend / väljund pistikud (DisplayPort)
- 1
- Sisend / väljund pistikud (heliport)
- 3
- Garantija
- 36
- Sisend / väljund pistikud (USB 3.2)
- 4
- Liides (USB 3.2)
- Yes
- Laienduspesad (PCI-Express 4.0 16x)
- 1
- Mudel
- B550M DS3H R2
- Category Code
- MBA
- Unit Box Height
- 0.055
- Unit Box Length
- 0.265
- Unit Box Width
- 0.265
- Units per Shipping Box
- 10
- Unit Calculated Volume
- 0.004628 cubm
- Product Net Weight
- 0.7 kg
- Unit Calculated Weight
- 0.955 kg
Eriviited
- ean13
- 4719331870454
- MPN
- 1447475
