Kirjeldus

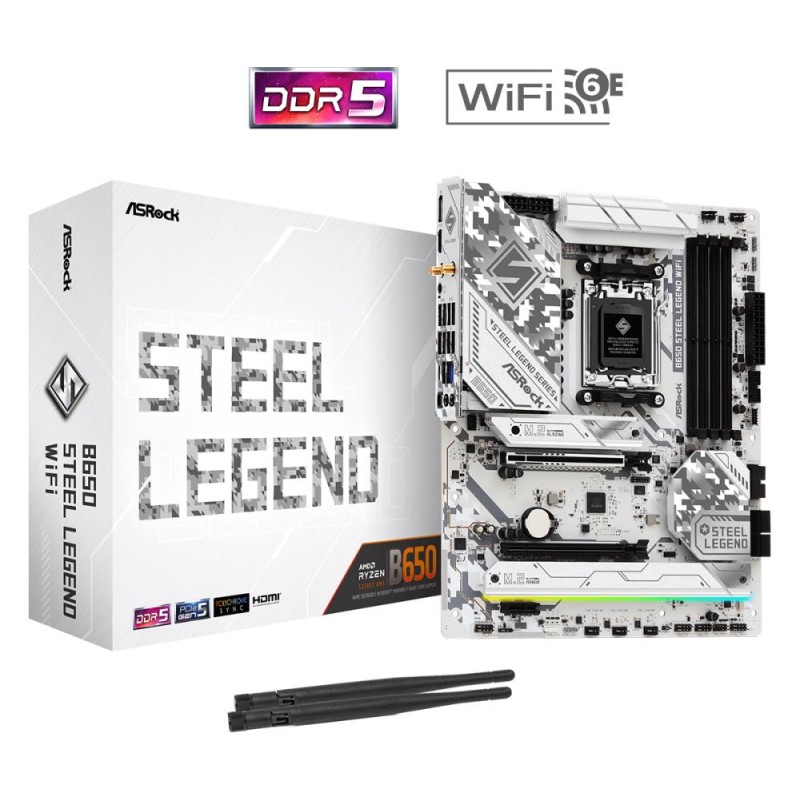

B650 Steel Legend WiFi
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Power Phase, 80A Dr.MOS for Vcore
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 7200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen2x2 Type-C (Rear)
- 1 USB 3.2 Gen1 Type-C (Front)
- 1 USB 3.2 Gen2 Type-A (Rear)
- 8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
- Dragon 2.5G LAN
- 802.11axe WiFi 6E + Bluetooth
- Supports ASRock Auto Driver Installer, BIOS Flashback
Üldine informatsioon
B650STEELLEGENDWIFI
28 Tooted
Lisainfo
- Müüja koduleht
- www.asrock.com/MB/AMD/B650%20Steel%20Legend%20WiFi/index.asp
- Kaasasolevad tarvikud
- - 1 x User Manual - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
- Vormitegur
- ATX
- Pistikupesa
- SAM5
- Sisend / väljund pistikud (USB 2.0)
- 8
- Mälu tüüp
- DDR5
- Sageduse kiirus
- 7200 MHz
- Sisend / väljund pistikud (RJ45)
- 1
- Sisend / väljund pistikud (HDMI)
- 1
- Integreeritud LAN
- 2.5 Gigabit
- Kiibistik
- AMD B650
- Integreeritud heli
- Realtek ALC4082
- Mälupesad
- 4
- RAID
- SATA 0, 1 NVMe 0, 1, 10
- TPM
- Header
- Laienduspesad (PCI-Express 3.0 16x)
- 1
- Laienduspesad (M.2)
- 1
- Sisend / väljund pistikud (DisplayPort)
- 1
- Sisend / väljund pistikud (heliport)
- 2
- Garantija
- 36
- Sisend / väljund pistikud (USB 3.2)
- 3
- Laienduspesad (PCI-Express 4.0 1x)
- 1
- Mudel
- B650 STEEL LEGEND WIFI
- Category Code
- MBA
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Unit Box Height
- 0.32
- Unit Box Length
- 0.38
- Unit Box Width
- 0.095
- Input/Output connectors (USB-C)
- 2
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.01155 cubm
- Product Net Weight
- 2 kg
- Unit Calculated Weight
- 2.3 kg
- CnCode
- 84733020
Eriviited
- ean13
- 4710483944598
- MPN
- 1420963
