Available in Black and White 6 Configurations to Suit Your Build Available in Black and White, with both 1200W and 1000W models. Users can choose between the standard version or the upgraded edition with a RS Hub for greater flexibility.
MULTIPLE CERTIFICATIONS Built as a Gold-standard power supply, the RS Series surpasses expectations. During Cybenetics testing, its real-world efficiency exceeded the Gold range and earned a Platinum rating, proving its exceptional performance and power savings in demanding workloads.
TWO INSTALLATION OPTIONS FOR GREATER FLEXIBILITY The RS Series offers both standard and side installation options, giving users greater flexibility to match different case layouts and achieve cleaner cable management.
ROTATABLE AC INLET Innovative rotatable AC inlet rotates 90°, providing unmatched flexibility to accommodate both standard and vertical installations.
Flexible Cable Routing with Dual-Sided 20+4 Pin The dual-sided 20+4 Pin output design allows cable routing from both sides, making installation cleaner and easier in any configuration.
PREMIUM INDUSTRIAL-GRADE CAPACITORS FOR UNMATCHED RELIABILITY Equipped with German EPCOS capacitors, the RS Series delivers long-lasting stability and trusted performance you can rely on.
COMPACT SIZE, POWERFUL COOLING With a 150 × 86 × 150 mm form factor and a built-in 135 mm fan, the RS Series delivers efficient airflow and excellent dual-chamber case compatibility. Rated SSS by PPLP.info, it ensures ultra-low noise across all load levels for a consistently quiet experience.
LIAN LI Exclusive Dual-Color 12V-2×6 Cable Specially designed for next-gen GPUs, LIAN LI’s exclusive dual-color 12V-2×6 cable ensures safer and more reliable power delivery. The dual-color housing makes connections clearer at a glance, while the reinforced structure provides long-lasting durability and stability for every build.
Braided-Textured Cable for Aesthetic Appeal The main 20+4-pin motherboard cable features a braided texture design with an included cable comb, offering durability and a refined look that enhances the overall build aesthetics.
SHORTEN YOUR CABLES, PERFECT YOUR BUILD These ultra-flexible flat cables, combined with magnetic clips that secure the folds, let you manage excess length, making them ideal for builds that require shorter CPU or PCIe cables. Perfect for back-connect motherboards or side-mounted PSU setups, they help keep your layout neat and organized.
Protective Dust Cover for 18+10 Pin Output Equipped with an insulated dust cover on the 18+10 pin output to protect against foreign objects and ensure safe, reliable operation.
All Essential Cables Included The RS Series comes with a complete set of high-quality modular cables right out of the box. Every connection you need for a clean and reliable build is already included, ensuring a hassle-free installation experience.
80 Plus Gold certified with Cybenetics Platinum-level efficiency performance
90° rotatable AC inlet for standard or vertical PSU installation
German EPCOS industrial-grade capacitors for long-term reliability
Compact 150 × 86 × 150 mm ATX design with 135 mm cooling fan
Ultra-quiet operation with PPLP.info SSS and Cybenetics A noise ratings
ATX 3.1 ready with native 12V-2×6 high-current copper alloy terminals
Dual-sided 20+4-pin ATX output for easier 24-pin cable routing

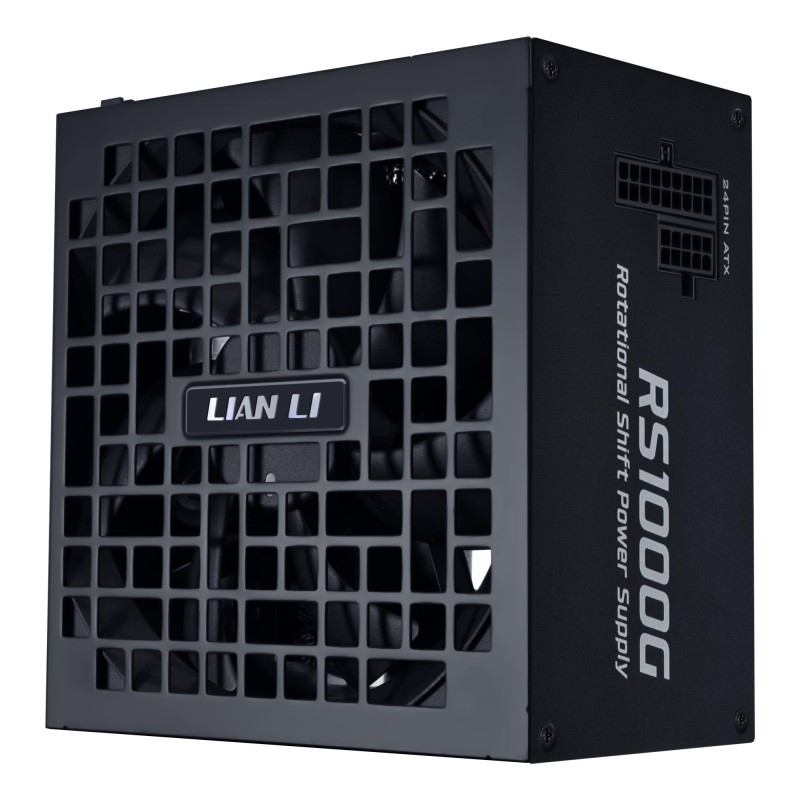

Lian Li RS1000G. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 62 cm, Peripheral (Molex) power cable length: 500 mm. Purpose: PC, Power supply u
Weight & dimensions (Width)
86 mm
Weight & dimensions (Depth)
150 mm
Weight & dimensions (Height)
150 mm
Operational conditions (Operating temperature (T-T))
0 - 40 C
Design (Product colour)
Black
Power (AC input frequency)
50/60 Hz
Power (AC input voltage)
100 - 240 V
Design (Number of fans)
1 fan(s)
Performance (Noise level)
36.21 dB
Power (Input current)
8 - 15 A
Design (Fan diameter)
135 mm
Power (Combined power (+12V))
1200 W
Power (Combined power (+3.3V))
100 W
Power (Combined power (+5V))
100 W
Power (Combined power (+5Vsb))
100 W
Power (Power protection features)
No load operation/Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Power (Total power)
1000 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
620 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Peripheral (Molex) power cable length)
500 mm
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
4
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
3.1
Ports & interfaces (PCI Express power connectors (6+2 pin))
2
Performance (Bearing technology)
FDB
Design (Fan speed)
0 - 1600 RPM
Ports & interfaces (CPU power cable length)
700 mm
Ports & interfaces (PCI Express power cable length)
650 mm
Ports & interfaces (ATX power connector (20+4 pin))
