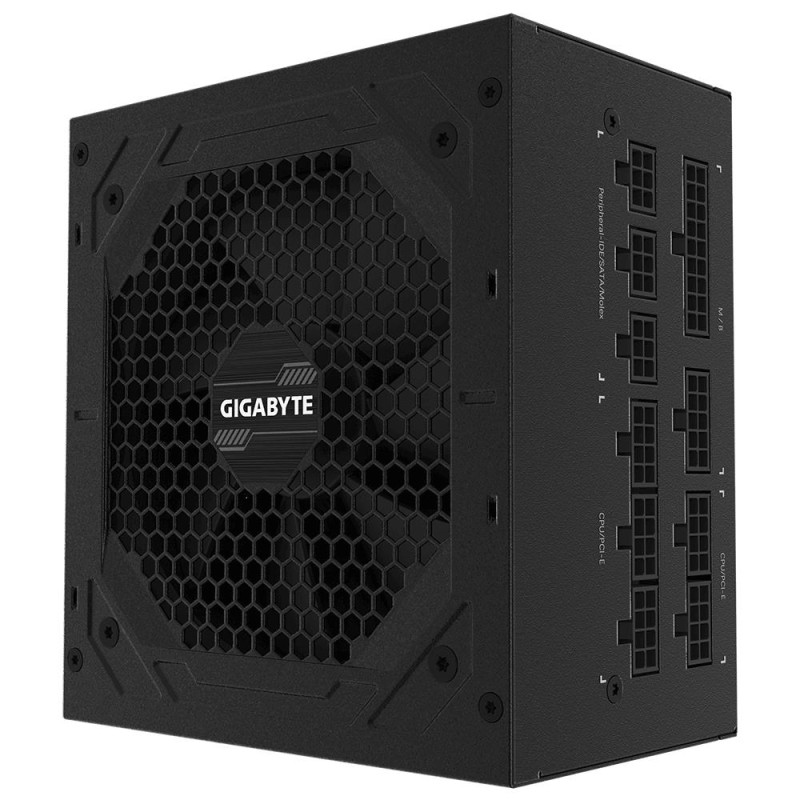

Power Supply|GIGABYTE|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-P850GM
  • Power Supply|GIGABYTE|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-P850GM

Power Supply|GIGABYTE|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-P850GM

GP-P850GM
GIGABYTE
850 W | 100 - 240 V | Efficiency 90 % | 80 PLUS certification 80 PLUS Gold | PC | ATX | Fan diameter 120 mm | Package type Box | GP-P850GM
€88.77
VAT included
Quantity
Laos
50 Items

Description

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

DIMENSIONS
Compact size to fit any small chassis.

  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Main Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact size
Product Details
GIGABYTE
GP-P850GM
50 Items

Data sheet

Vendor Homepage
https://www.gigabyte.com/Power-Supply/P850GM kf
Model name
GP-P850GM
Garantija
36
Category Code
PSU
Unit Box Height
0.205
Unit Box Length
0.26
Unit Box Width
0.12
Units per Shipping Box
1
Unit Calculated Volume
0.006396 cubm
Unit Calculated Weight
2.49 kg
Summary
GIGABYTE P850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 600,750,900 mm. Purpose: PC, Power supply unit (
Weight & dimensions (Width)
150 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
86 mm
Packaging data (Package type)
Box
Logistics data (Harmonized System (HS) code)
84733020
Design (Product colour)
Black
Power (AC input frequency)
50 - 60 Hz
Power (AC input voltage)
100 - 240 V
Design (Cooling type)
Active
Design (Number of fans)
1 fan(s)
Design (Fan diameter)
120 mm
Design (On/off switch)
Yes
Power (Combined power (+12V))
846 W
Power (Combined power (+3.3V))
120 W
Power (Combined power (+5V))
120 W
Power (Combined power (+5Vsb))
15 W
Power (Combined power (-12V))
3.6 W
Power (Max output current (+12V))
70.5 A
Power (Max output current (+3.3V))
20 A
Power (Max output current (+5V))
20 A
Power (Max output current (+5Vsb))
3 A
Power (Max output current (-12V))
0.3 A
Power (Power protection features)
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Power (Total power)
850 W
Ports & interfaces (Cabling type)
Fully-Modular
Ports & interfaces (Motherboard power cable length)
610 mm
Ports & interfaces (Motherboard power connector)
20+4 pin ATX
Ports & interfaces (Number of SATA power connectors)
8
Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
3
Ports & interfaces (SATA power cable length)
600/750/900 mm
Performance (80 PLUS certification)
80 PLUS Gold
Performance (Mean time between failures (MTBF))
100000 h
Performance (Power supply unit (PSU) form factor)
ATX
Performance (Purpose)
PC
Power (Power Factor Correction (PFC) type)
Active
Performance (ATX version)
2.31
Power (Efficiency)
90 %
Ports & interfaces (CPU power connector (4+4 pin))
Yes
Ports & interfaces (PCI Express power connectors (6+2 pin))
4
Design (Fan location)
Top
Power (Maximum input current (@110V))
12 A
Power (Maximum input current (@220V))
6 A
Ports & interfaces (CPU power cable length)
600 mm
Ports & interfaces (PCI Express power cable length)
750 mm
Power (Hold time)
16 ms
Power (Power factor)
0.9
Ports & interfaces (Floppy drive power connector)
2
Ports & interfaces (ATX power connector (20+4 pin))
Yes
Ports & interfaces (Floppy disk drive connector)
Yes
Ports & interfaces (Floppy disk drive cable length)
890 mm

Specific References

EAN13
4719331551865
MPN
1313868
