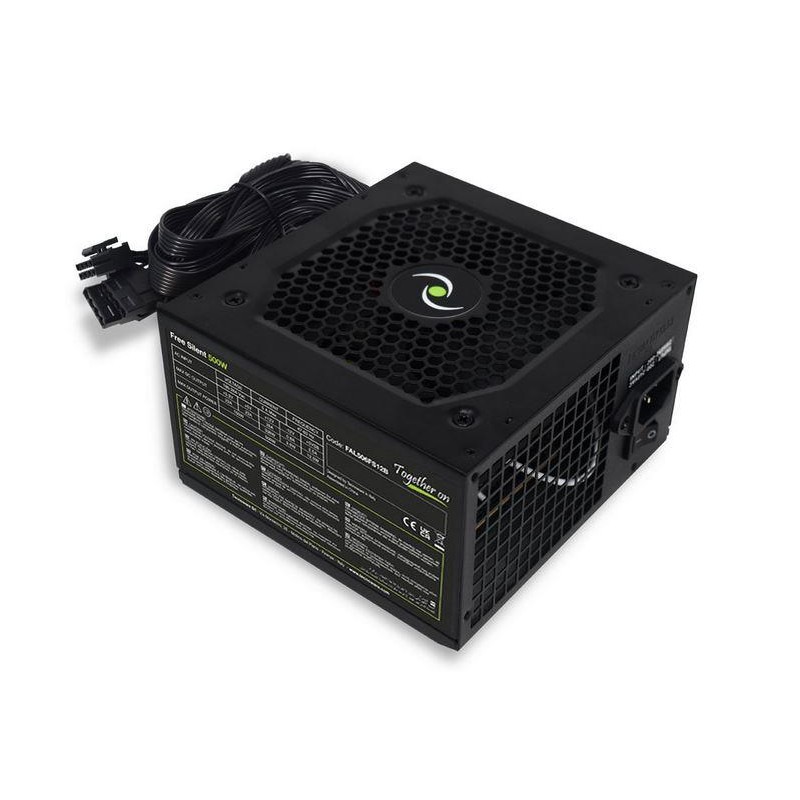

Power Supply|TECNOWARE|FREE SILENT 500W|ATX|PC|180 - 264 V|500 W|FAL506FS12B

Data sheet

Vendor Homepage

https://www.tecnoware.com/Prodotti/FAL506FS12B/free-silent-500w-12-cm-psu-bulk.aspx

Model name

FREE SILENT 500W

Garantija

24

Category Code

PSU

Unit Box Height

0.098

Unit Box Length

0.2

Unit Box Width

0.155

Units per Shipping Box

1

Unit Calculated Volume

0.003038 cubm

Unit Calculated Weight

0.9 kg

Summary

Tecnoware Free Silent. Total power: 500 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Grey, Cooling type: Active, Fan dia

Weight & dimensions (Width)

150 mm

Weight & dimensions (Depth)

140 mm

Weight & dimensions (Height)

85 mm

Weight & dimensions (Weight)

1000 g

Certificates (Compliance certificates)

RoHS

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage temperature (T-T))

-15 - 40 C

Design (Product colour)

Black

Power (AC input frequency)

47 - 63 Hz

Power (AC input voltage)

180 - 264 V

Design (Cooling type)

Active

Design (Number of fans)

1 fan(s)

Certificates (Certification)

CE (2014/35/UE EMC 2014/30/UE)

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Power (Input current)

5 A

Design (Fan diameter)

120 mm

Design (On/off switch)

Yes

Power (Max output current (+12V))

28 A

Power (Max output current (+3.3V))

22 A

Power (Max output current (+5V))

22 A

Power (Max output current (+5Vsb))

2.5 A

Power (Max output current (-12V))

0.8 A

Power (Power protection features)

Over voltage/Overload/Short circuit

Power (Total power)

500 W

Ports & interfaces (Motherboard power connector)

20+4 pin ATX

Ports & interfaces (Number of SATA power connectors)

2

Ports & interfaces (Peripheral (Molex) power connectors (4-pin))

2

Performance (Power supply unit (PSU) form factor)

ATX

Performance (Purpose)

PC

Performance (ATX version)

2.01

Power (Efficiency)

86 %

Ports & interfaces (CPU power connector (4+4 pin))

Yes

Design (Fan location)

Top

Ports & interfaces (Floppy drive power connector)

1

Ports & interfaces (ATX power connector (20+4 pin))

Yes

Ports & interfaces (Floppy disk drive connector)

Yes

Other features (Operating altitude)

0 - 3000 m

Specific References

EAN13

8026475175601

MPN

1290622
