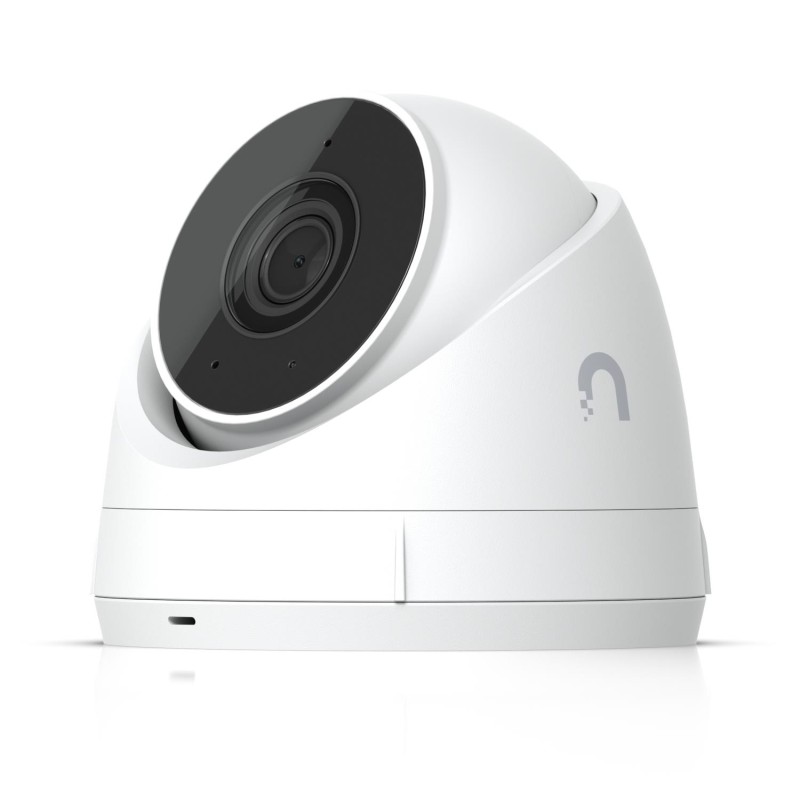

NET CAMERA 2K HD POE/UVC-G5-TURRET-ULTRA UBIQUITI

Data sheet

Vendor Homepage

https://eu.store.ui.com/eu/en/pro/products/uvc-g5-turret-ultra

Garantija

12

Model

UVC-G5-TURRET-ULTRA

Category Code

FNC

Unit Box Height

0.17

Unit Box Length

0.17

Unit Box Width

0.15

Units per Shipping Box

1

Unit Calculated Volume

0.004335 cubm

Unit Calculated Weight

1 kg

Summary

Ubiquiti G5 Turret Ultra. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Lens viewing angle, horizontal: 102.4 , Lens viewing angle,

Weight & dimensions (Height)

71.2 mm

Weight & dimensions (Weight)

330 g

Packaging content (Cables included)

LAN (RJ-45)

Operational conditions (Operating temperature (T-T))

-30 - 50 C

Sustainability (Sustainability compliance)

Yes

Weight & dimensions (Diameter)

90 mm

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (AC input voltage)

37 - 57 V

Power (Power consumption (typical))

4 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Aluminium/Polycarbonate (PC)

Operational conditions (Operating relative humidity (H-H))

0 - 90 %

Design (Form factor)

Turret

Packaging content (Mounting kit)

Yes

Packaging content (Screws included)

Yes

Power (Power source type)

PoE

Sustainability (Compliance certificates)

CE/Federal Communications Commission (FCC)

Audio (Built-in microphone)

Yes

Design (Protection features)

Tamper resistant/UV resistant

Network (Ethernet interface type)

Fast Ethernet

Performance (Built-in processor)

Yes

Design (IK code)

IK04

Design (International Protection (IP) code)

IP66

Design (Mounting type)

Ceiling/wall

Design (Weatherproof)

Yes

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Processor model)

ARM Cortex-A7

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

120.6

Camera (Lens viewing angle, horizontal)

102.4

Camera (Lens viewing angle, vertical)

54.9

Image sensor (Optical sensor size)

1/2.4 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

30 m

Video (Frame rate)

30 fps

Video (Image quality adjustment)

Brightness/Colour depth/Contrast/DNR/Sharpness

Video (Maximum resolution)

2688 x 1512 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

2D noise reduction,3D noise reduction

Video (Privacy masking)

Yes

Video (Text caption overlay)

Yes

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Management features (Reset button)

Yes

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Image sensor (Number of sensors)

1

Weight & dimensions (Cable length)

0.3 m

Video (Video formats supported)

H.264

Specific References

EAN13

810084693575

MPN

1413866
