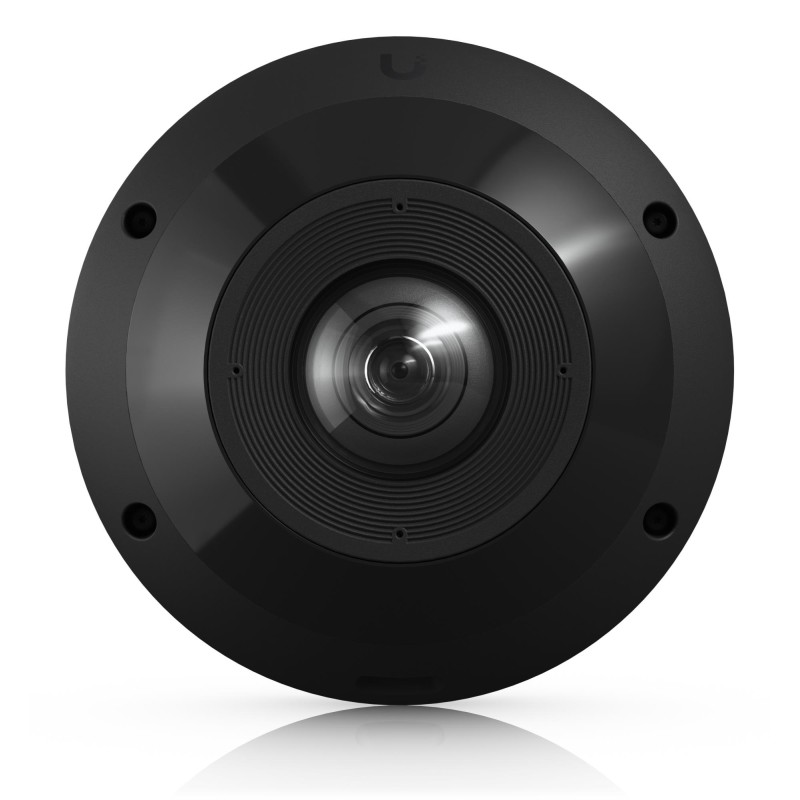

NET CAMERA 12MP/BLK UVC-G6-PRO-360-B UBIQUITI

Data sheet

Vendor Homepage

https://eu.store.ui.com/eu/en/category/cameras-dome-turret/products/uvc-g6-pro-360

Garantija

12

Category Code

FNC

Unit Box Height

0.135

Unit Box Length

0.2

Unit Box Width

0.2

Units per Shipping Box

8

Unit Calculated Volume

0.0092 cubm

Unit Calculated Weight

1.34 kg

Summary

Ubiquiti G6 Pro 360. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Dome. Lens viewing angle, horizontal: 180° , Lens viewing angle, v

Weight & dimensions (Height)

65.5 mm

Weight & dimensions (Weight)

610 g

Operational conditions (Operating temperature (T-T))

-30 - 50 C

Weight & dimensions (Diameter)

147 mm

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

Black

Power (Power consumption (max))

7.14 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Aluminium/Polycarbonate (PC)

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

0 - 90 %

Design (Form factor)

Dome

Packaging content (Mounting kit)

Yes

Audio (Audio system)

2-way

Packaging content (Screws included)

Yes

Storage (Compatible memory cards)

MicroSD (TransFlash)

Power (Power source type)

PoE+

Sustainability (Compliance certificates)

CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA)

Storage (Card reader integrated)

Yes

Audio (Built-in speaker(s))

Yes

Audio (Built-in microphone)

Yes

Design (Protection features)

Vandal proof/Weatherproof

Audio (Number of microphones)

2

Network (Ethernet interface type)

Fast Ethernet

Performance (Built-in processor)

Yes

Design (IK code)

IK10

Design (International Protection (IP) code)

IP66

Design (Mounting type)

Ceiling/wall

Design (Weatherproof)

Yes

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Processor model)

ARM Cortex-A53

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

180

Camera (Lens viewing angle, horizontal)

180

Camera (Lens viewing angle, vertical)

180

Image sensor (Optical sensor size)

1/1.6 "

Lens system (Number of lenses)

1

Lens system (Zoom capability)

Yes

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

15 m

Video (Frame rate)

24 fps

Video (Image quality adjustment)

Brightness/Colour depth/Contrast/HDR/Sharpness

Video (Maximum resolution)

3504 x 3504 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

2D noise reduction,3D noise reduction

Video (Privacy masking)

Yes

Video (Text caption overlay)

Yes

Video (Total megapixels)

12 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Human detection/Pet detection/Vehicle detection

Management features (Reset button)

Yes

Power (DC output voltage)

37,42.5,48,54,57

Packaging content (Number of cameras)

1

Technical details (Night mode)

Yes

Specific References

EAN13

810177163220

MPN

1448283
