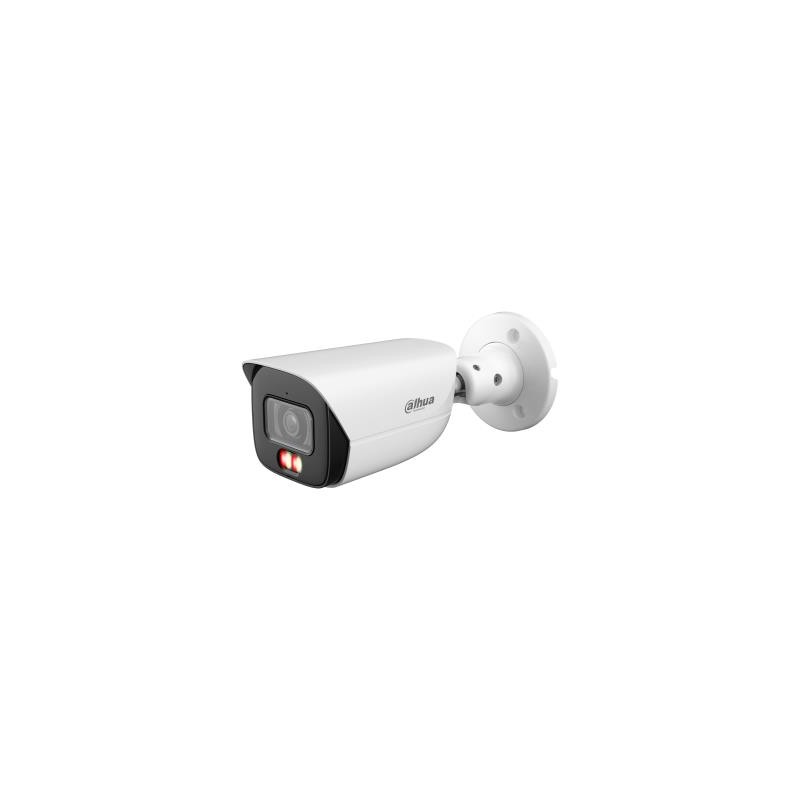

NET CAMERA 6MP BULLET/IPC-HFW3649E-AS-IL-0280B DAHUA

Data sheet

Vendor Homepage

www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HFW3649E-AS-IL

Garantija

36

Category Code

FNC

Unit Box Height

0.095

Unit Box Length

0.11

Unit Box Width

0.22

Units per Shipping Box

1

Unit Calculated Volume

0.002299 cubm

Unit Calculated Weight

0.8 kg

Weight & dimensions (Width)

192.7 mm

Weight & dimensions (Depth)

70.5 mm

Weight & dimensions (Height)

66.4 mm

Weight & dimensions (Weight)

610 g

Operational conditions (Operating temperature (T-T))

40 C to +60 C C

Design (Product colour)

White

Power (Power consumption (max))

8 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Form factor)

Bullet

Camera (Camera shutter speed)

1/3 s 1/100,000 s s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Audio (Built-in microphone)

Yes

Other features (Audio output)

1

Image sensor (Optical sensor size)

1/2.7" "

Video (Total megapixels)

6 MP

Image sensor (Number of effective pixels (H x V))

3288 (H) 1850 (V) pixels

Image sensor (Sensor type)

Microbolometer

Lens system (Focal length range)

2.8 mm mm

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Technical details (Power source)

12 VDC/PoE (802.3af)

Technical details (Lens mount interface)

M12

Technical details (Audio input)

1

Camera (Adjustment shutter speed)

Auto/Manual

Lens system (Fixed focus)

Yes

Lens system (Maximum aperture number)

1.4

Specific References

EAN13

6939554924910

MPN

1441456
