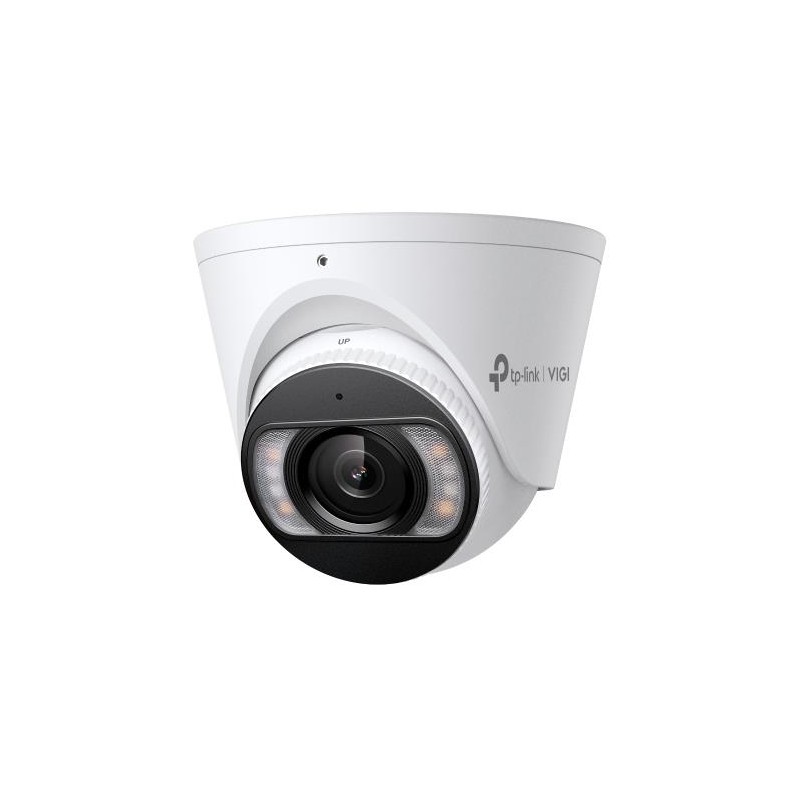

NET CAMERA TURRET H.265+ 4MP/INSIGHT S445S(2.8MM) TP-LINK

Data sheet

Vendor Homepage

https://www.vigi.com/sg/business-networking/vigi-network-camera/insight-s445/

Garantija

36

Model

InSight S445S

Category Code

FNC

Unit Box Height

0.116

Unit Box Length

0.161

Unit Box Width

0.16

Units per Shipping Box

1

Unit Calculated Volume

0.002988 cubm

Unit Calculated Weight

0.82 kg

Summary

TP-Link InSight S445. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.005 lx, Angle of rotation: 360 , Lens v

Weight & dimensions (Height)

83.7 mm

Weight & dimensions (Weight)

480 g

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 60 C

Weight & dimensions (Diameter)

111 mm

Network (Ethernet LAN)

Yes

Design (Product colour)

White

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Turret

Packaging content (Mounting kit)

Yes

Camera (Camera shutter speed)

1/3 - 1/10000 s

Audio (Audio system)

2-way

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Sustainability (Compliance certificates)

BSMI/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/KC/VCCI

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in speaker(s))

Yes

Audio (Built-in microphone)

Yes

Security (Password protection)

Yes

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/wall

Performance (Connectivity technology)

Wired

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

118

Camera (Lens viewing angle, horizontal)

100

Camera (Lens viewing angle, vertical)

54

Image sensor (Optical sensor size)

1/2.7 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR/White

Night vision (Night vision)

Yes

Night vision (Night vision distance)

30 m

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Abandoned object/Abnormal sound detection/Human detection/Intrusion/Line crossing detection/Region entrance detection/Region exiting detection/Scene change/Vehicle detection

Management features (Reset button)

Yes

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Fixed focal length)

2.8 mm

Camera (Minimum illumination)

0.005 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1.6

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264+/H.265/H.265+

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 85

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520/320 x 240/352 x 288/640 x 480 (VGA)/704 x 576

Video (Video streaming)

Yes

Audio (Signal-to-Noise Ratio (SNR))

52 dB

Network (Supported network protocols)

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Security (Active tampering alarm)

Yes

Management features (Web browser)

Yes

Video (Smart IR)

Yes

Security (HTTPS encryption)

Yes

Security (Privacy protection)

Yes

Performance (Dynamic range)

120 dB

Lens system (Detect distance)

64 m

Lens system (Identify distance)

6 m

Lens system (Observe distance)

27 m

Lens system (Recognize distance)

13 m

Video (Bit rate)

Main Stream: 256 Kbps - 6 Mbps Sub-Stream: 64 Kbps - 512 Kbps

Night vision (Infra-red wavelength)

850 nm

Security (IP address filtering)

Yes

Security (Digest authentication)

Yes

Camera (Number of Privacy masking areas)

4

Management features (Cloud-managed)

Yes

Performance (People counting function)

Yes

Specific References

EAN13

8885020625622

MPN

1451220
