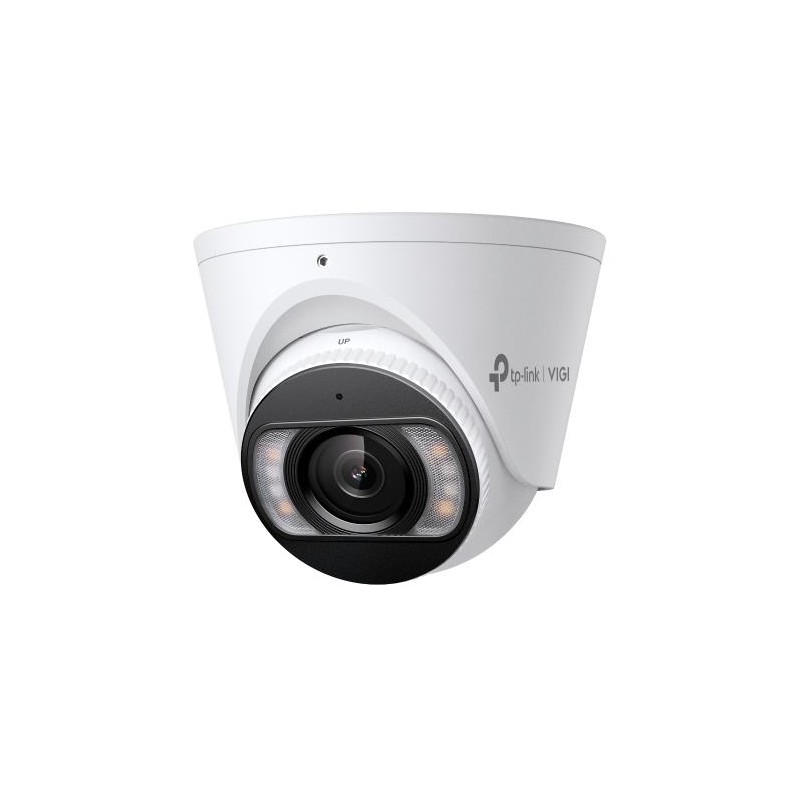

NET CAMERA TURRET H.265+ 4MP/VIGI C445(4MM) TP-LINK

Data sheet

Vendor Homepage

https://www.tp-link.com/ae/business-networking/vigi-network-camera/vigi-c445/ specifications

Garantija

36

Model

VIGI C445(4MM)

Category Code

FNC

Unit Box Height

0.165

Unit Box Length

0.12

Unit Box Width

0.165

Units per Shipping Box

1

Unit Calculated Volume

0.003267 cubm

Unit Calculated Weight

0.73 kg

Summary

TP-Link VIGI C445. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 80

Weight & dimensions (Width)

111 mm

Weight & dimensions (Depth)

111 mm

Weight & dimensions (Height)

83.7 mm

Weight & dimensions (Weight)

480 g

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 60 C

Network (Ethernet LAN)

Yes

Design (Product colour)

White

Power (Power consumption (max))

10.1 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal/Plastic

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Turret

Camera (Camera shutter speed)

1/3 - 1/10000 s

Power (Power source type)

DC

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in speaker(s))

Yes

Audio (Built-in microphone)

Yes

Security (Password protection)

Yes

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/wall

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

98.7

Camera (Lens viewing angle, horizontal)

80.4

Camera (Lens viewing angle, vertical)

41.8

Image sensor (Optical sensor size)

1/2.7 "

Lens system (Number of lenses)

1

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

30 m

Video (Frame rate)

60 fps

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Total megapixels)

4 MP

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

4 mm

Lens system (Fixed focal length)

4 mm

Camera (Minimum illumination)

0.005 lx

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1.6

Video (Region of Interest (ROI) encoding)

Yes

Video (Video compression formats)

H.264/H.264+/H.265/H.265+

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 85

Video (Bit rate control)

Constant Bit Rate (CBR),Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2550 x 1440/2688 x 1520

Audio (Signal-to-Noise Ratio (SNR))

52 dB

Network (Supported network protocols)

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Video (Smart IR)

Yes

Night vision (Number of illumination LEDs)

4

Security (Privacy protection)

Yes

Performance (Dynamic range)

120 dB

Lens system (Detect distance)

80 m

Lens system (Identify distance)

8 m

Lens system (Observe distance)

33 m

Lens system (Recognize distance)

16 m

Video (Bit rate)

6 Mbps

Audio (Bit rate range)

64 - 64 Kbit/s

Lens system (Lens diameter)

4 mm

Night vision (Infra-red wavelength)

850 nm

Security (IP address filtering)

Yes

Security (Digest authentication)

Yes

Camera (Number of Privacy masking areas)

4

Audio (Sample rate)

8 kHz

Lens system (Minimum aperture number)

1.6

Specific References

EAN13

4895252507003

MPN

1420735
