FLUSH-MOUNTING DISTRIBUTION CABINET 96-MODULAR LE-337224 XL sup 3 /sup S 160 LEGRAND
€635.82
VAT included

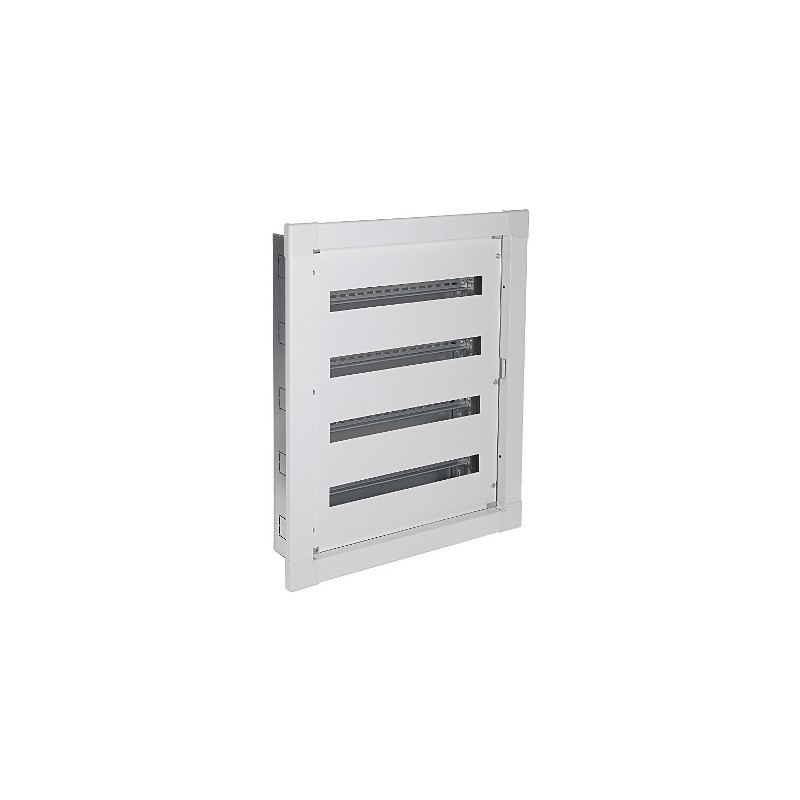

- 4-row 96-modular flush-mounting distribution electric cabinet
- NOTE: Doors and terminal blocks must be ordered separately
Security policy (edit with Customer reassurance module)
Delivery policy (edit with Customer reassurance module)
Return policy (edit with Customer reassurance module)
| Method of mounting: | Flush |
| Number of mounted modules: | 24 x 4 rows |
| Spacing between TH 35 rails: | 150 mm |
| Transparent door: | (not included) |
| Main features: | Easily adjustable depth of the TH 35 chassis Large capacity Monobloc housing Flexibility in the selection of terminal blocks Possibility of connecting the housings vertically Max. current : 160 A Short-circuit current : 17 kA Equipped with faceplates at full height |
| Equipment: | Faceplates : 1 x 4R |
| Material: | Steel |
| Color: | White |
| "Index of Protection": | IP30 (without door) IP40 (with door) |
| IK rating: | IK04 (without door) IK07 (with door) |
| Complies with norms: | IEC/EN 61439-1, IEC/EN 61439-3, IEC 60695-2-1 |
| Operation temp: | -5 °C ... 40 °C |
| Weight: | 16.39 kg |
| Dimensions: | 665 x 810 x 135 mm , 595 x 740 x 135 mm - flush-mounting box |
| Manufacturer / Brand: | LEGRAND |
| Guarantee: | 2 years |
