Kuvaus
1/1.8" CMOS image sensor, low luminance, and high definition image Outputs max. 6 MP (3072 × 2048) @25/30 fps Built-in multi-core light, the max. IR distance is 80 m and the max. warm light distance is 60 m ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation IP67 and IK10 protection
Tuotetiedot
Viite
IPC-HFW5659T1-ASE-PV-0280B-PRO-BLACK
Varastossa
5 Tuotteet
Lisätiedot
Vendor Homepage
https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Pro/6MP/IPC-HFW5659T1-ASE-PV-PRO
Garantija
36
Category Code
FNC
Units per Shipping Box
1
Unit Calculated Volume
0.00392 cubm
Unit Calculated Weight
1.2 kg
Summary

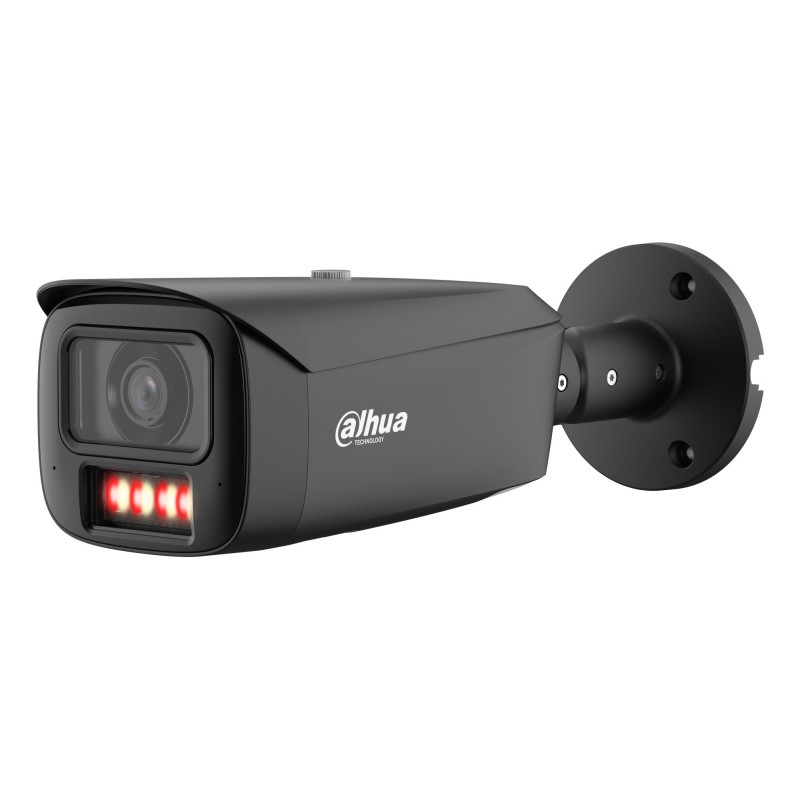

Dahua Technology WizMind IPC-HFW5659T1-ASE-PV-PRO. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.0001 lx, Angle
Weight & dimensions (Width)
94.4 mm
Weight & dimensions (Depth)
288.4 mm
Weight & dimensions (Height)
84.7 mm
Weight & dimensions (Weight)
1090 g
Packaging data (Package weight)
1390 g
Packaging data (Package type)
Box
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
Black
Power (Power consumption (max))
21.6 W
Power (Power consumption (typical))
4.1 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal/Plastic
Packaging content (Manual)
Yes
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Bullet
Weight & dimensions (Length)
288.4 mm
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
1000 GB
Power (Power source type)
DC
Sustainability (Compliance certificates)
CE/Electromagnetic Compatibility (EMC)
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in speaker(s))
Yes
Audio (Built-in microphone)
Yes
Storage (RAM capacity)
2000 MB
Audio (Number of microphones)
2
Other features (Audio output)
RCA
Design (IK code)
IK10
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/Wall/Pole
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
131
Camera (Lens viewing angle, horizontal)
109
Camera (Lens viewing angle, vertical)
59
Image sensor (Optical sensor size)
1/1.8 "
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
80 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
3072 x 2048 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Privacy masking)
Yes
Video (Total megapixels)
6 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Heat map/Intrusion/People counting/Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Security (Alarm input channels)
1
Security (Alarm output channels)
1
Lens system (Fixed focal length)
2.8 mm
Audio (Audio input channels)
1.0 channels
Technical details (Lens mount interface)
M16
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0.0001 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Technical details (Audio input)
RCA
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
1
Video (Gain control type)
Auto/Manual
Ports & interfaces (RS-485 ports)
1
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265/M-JPEG
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 90
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711 -law/G.711 A-law/G.723/G.726/PCM
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP P2P Auto Registration
Storage (ROM capacity)
4000 MB
Management features (Web browser)
Yes
Video (Smart IR)
Yes
Lens system (Closest focusing distance)
3.2 m
Night vision (Number of illumination LEDs)
4
Network (Number of users)
20 user(s)
Security (HTTPS encryption)
Yes
Security (Mirror)
Yes
Power (Power consumption (Power over Ethernet (PoE)))
4.8 W
Performance (Dynamic range)
130 dB
Lens system (Detect distance)
70.2 m
Lens system (Identify distance)
7 m
Lens system (Observe distance)
28.1 m
Lens system (Recognize distance)
14 m
Video (Video recording)
Yes
Network (Networking standards)
IEEE 802.1x/IEEE 802.3at
Security (Network access storage (NAS))
Yes
Security (Human and vehicle targets classification)
Yes
Other features (Browser supported)
IE: IE 11, Chrome: Chrome 102, Firefox: Firefox 88
Security (Digital watermark)
Yes
Performance (People counting function)
Yes
Tilausviitteet
Valmistajan tuotenumero (MPN)
1459797
