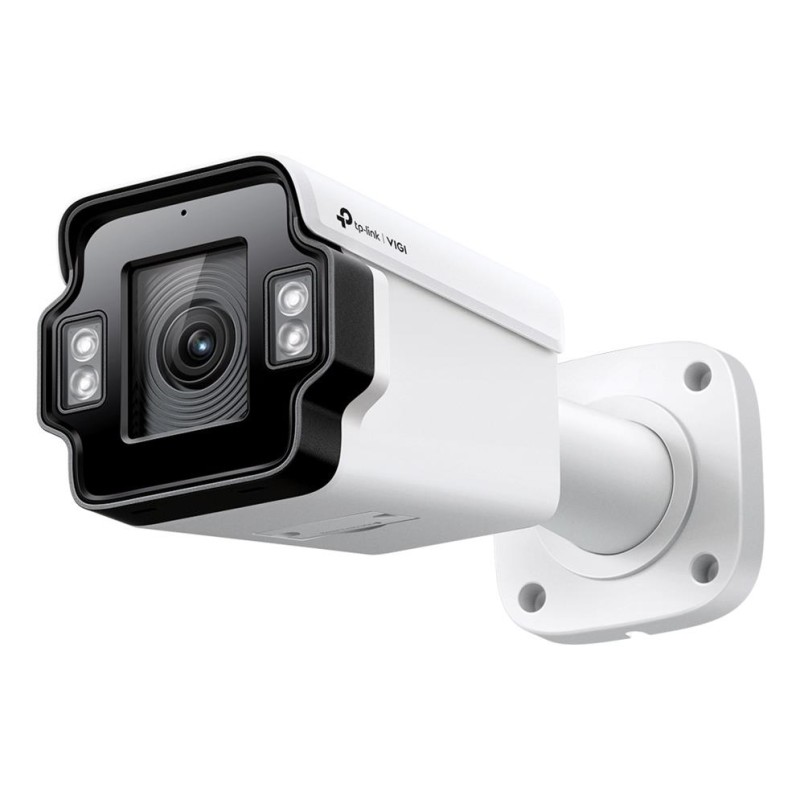

IP-kamera BULLET H.265+ 4MP INSIGHT S345ZI TP-LINK

Lisätiedot

Vendor Homepage

https://www.tp-link.com/in/business-networking/vigi-network-camera/insight-s345zi/ highlights

Garantija

36

Model

InSight S345ZI

Category Code

FNC

Unit Box Height

0.135

Unit Box Length

0.305

Unit Box Width

0.16

Units per Shipping Box

1

Unit Calculated Volume

0.006588 cubm

Unit Calculated Weight

1.45 kg

Summary

TP-Link VIGI InSight S345ZI. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Angle of rotation: 360 , Lens viewing angle, horizontal: 29.6 102, Lens v

Weight & dimensions (Width)

100 mm

Weight & dimensions (Height)

101 mm

Weight & dimensions (Weight)

1040 g

Packaging data (Package type)

Box

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 60 C

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

10.8 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Ports & interfaces (DC-in jack)

Yes

Design (Form factor)

Bullet

Weight & dimensions (Length)

256 mm

Camera (Camera shutter speed)

1/3 to 1/10000 s

Audio (Audio system)

2-way

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Design (Protection features)

Waterproof

Security (Password protection)

Yes

Audio (Number of microphones)

1

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Wall

Design (Weatherproof)

Yes

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Infrared (IR) cut-off filter)

Yes

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

34.1-122.8

Camera (Lens viewing angle, horizontal)

29.6-102

Camera (Lens viewing angle, vertical)

16.8-53.8

Image sensor (Optical sensor size)

1/2.9 "

Lens system (Number of lenses)

1

Lens system (Zoom capability)

Yes

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

10 m

Video (Image quality adjustment)

Brightness/Contrast/Mirror/Saturation/Sharpness

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Total megapixels)

4 MP

Management features (Reset button)

Yes

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

2.7 - 13.5 mm

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Audio (Audio input channels)

1.0 channels

Camera (Minimum illumination)

0 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1.6

Video (Region of Interest (ROI) encoding)

Yes

Security (Built-in siren)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264+/H.265/H.265+

Video (Digital Wide Dynamic Range (DWDR))

Yes

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 90

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520

Video (Video streaming)

Yes

Audio (Audio formats supported)

G.711 A-law

Audio (Signal-to-Noise Ratio (SNR))

52 dB

Network (Supported network protocols)

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Management features (Web browser)

Yes

Video (Smart IR)

Yes

Night vision (Number of illumination LEDs)

4

Security (HTTPS encryption)

Yes

Security (Mirror)

Yes

Management features (Web-based management)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

12 W

Performance (Dynamic range)

120 dB

Lens system (Detect distance (tele))

207 m

Lens system (Detect distance (wide))

66 m

Lens system (Identify distance (tele))

21 m

Lens system (Identify distance (wide))

7 m

Lens system (Observe distance (tele))

86 m

Lens system (Observe distance (wide))

28 m

Lens system (Recognize distance (tele))

41 m

Lens system (Recognize distance (wide))

13 m

Video (Bit rate)

Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps

Audio (Bit rate range)

0 - 64 Kbit/s

Video (Video recording)

Yes

Network (Live view)

Yes

Security (Motion sensor)

Yes

Night vision (Infra-red wavelength)

850 nm

Security (IP address filtering)

Yes

Network (Networking standards)

IEEE 802.3af/IEEE 802.3at

Security (Digest authentication)

Yes

Audio (Sample rate)

8 kHz

Network (Number of simultaneous live view channels)

6 channels

Management features (Cloud-managed)

Yes

Security (Human and vehicle targets classification)

Yes

Performance (Remote viewing)

Yes

Lens system (Focus)

Motorized

Lens system (Optical zoom)

5 x

Security (Alert notification type)

Push notification

Audio (Audio detection)

Yes

Tilausviitteet

EAN13

8885020623574

Valmistajan tuotenumero (MPN)

1435770
