Type HDTV/Megapixel/Outdoor | Resolution 8 Mega Pixel | Focal Length 2.7 mm–12 mm | IR Illumination | Sensor size 1/1.8" | Microphone Built-in | Lens Mount M14 | Effective pixels 3840 (H) × 2160 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | Supports card capacities up to 1TB | Power options PoE/12V | Power supply requirements 12 VDC (±30%); PoE+ (802.3at); ePoE | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Dimensions 279.8 mm × 96.7 mm × 94.9 mm

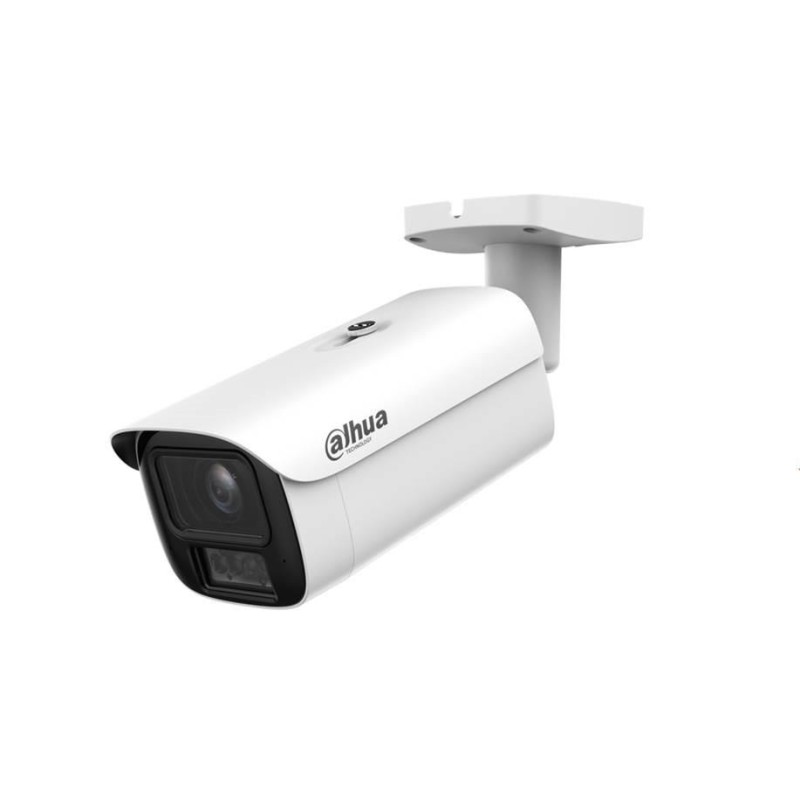

8MP Smart Dual Light Vari-focal Bullet WizMind Network Camera
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP(3840×2160)@25/30 fps.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
> 12 VDC/PoE power supply; ePoE
> IP67 and IK10 protection.
> 2.7 mm–12 mm (113°–47°)
TC71 | Sensor size 1/2.9“ | Resolution 3 Mega Pixel | Lens data 4mm | Microphone Built-in | Power options Other | Power supply requirements 9V 0.6A | Dimensions 85 x 117.7 x 86.5 mm | box quantity 24
Type Outdoor | Resolution 4 Mega Pixel | Focal Length 2.7-12 mm | IR Illumination | Sensor size 1/1.8" CMOS | Microphone Built-in | Supports card capacities up to 512GB | Power options PoE/12V | Power supply requirements 12 VDC/PoE (802.3af)/ePoE | Environment Outdoor | Operating temperature range –30 °C to +60 °C | Dimensions 273.2 mm × 95.0 mm × 95.0 mm
Sensor size 1/3.2" CMOS | Resolution 3 Mega Pixel | Microphone Built-in | Supports card capacities up to 256GB | Power options 5V | Power supply requirements 5 VDC, 1 A | Colour White | Included Accessories power supply | Dimensions φ84 mm × 123.8 mm | box quantity 1
Type PTZ | Resolution 4 Mega Pixel | Focal Length 2.8 mm–12 mm | IR Illumination | Sensor size 1/2.8 ” CMOS | Min. Illumination 0.005 Lux | Electronic Shutter Speed 1/1 s–1/30,000 s | Supports card capacities up to 512GB | Power options 12V | Environment Outdoor | Operating temperature range -30°C~+60°C | Dimensions 89 mm × Φ122 mm
Type HDTV/Megapixel/Outdoor | Resolution 8 Mega Pixel | Focal Length 2.7 mm–12 mm | IR Illumination | Sensor size 1/1.8" | Microphone Built-in | Lens Mount M14 | Effective pixels 3840 (H) × 2160 (V) | Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s | Supports card capacities up to 1TB | Power options PoE/12V | Power supply requirements 12 VDC (±30%); PoE+ (802.3at); ePoE | Environment Outdoor | Operating temperature range –40 °C to +60 °C | Dimensions 279.8 mm × 96.7 mm × 94.9 mm
