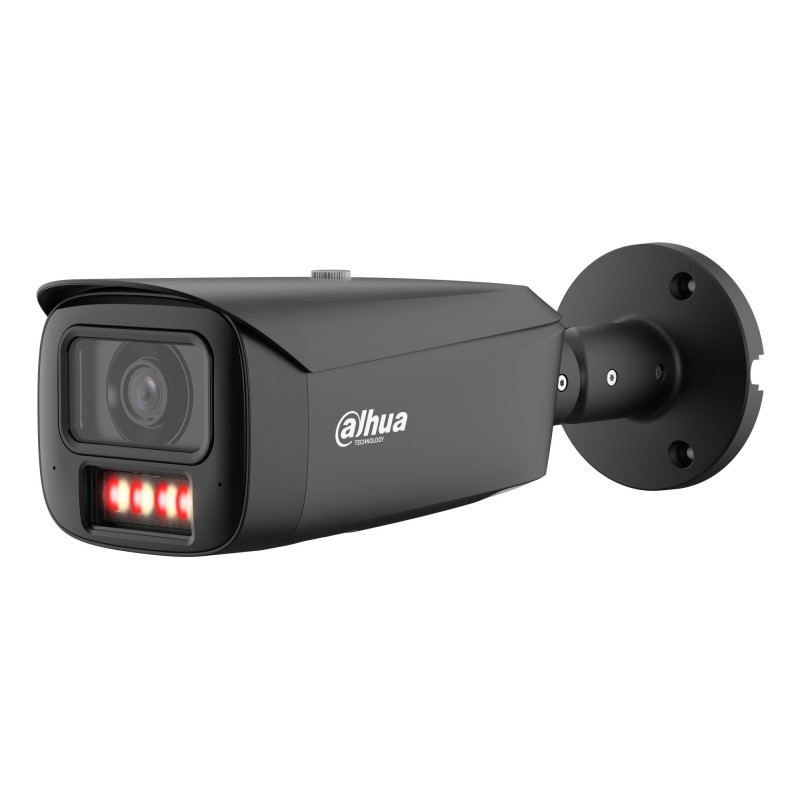

IP 6MP BULLET DAHUA

Lisainfo

Müüja koduleht

https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Pro/6MP/IPC-HFW5659T1-ASE-PV-PRO

Garantija

36

Category Code

FNC

Unit Box Height

0.14

Unit Box Length

0.15

Unit Box Width

0.34

Units per Shipping Box

1

Unit Calculated Volume

0.00714 cubm

Unit Calculated Weight

1.51 kg

Summary

Dahua Technology WizMind IPC-HFW5659T1-ASE-PV-PRO. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.0001 lx, Angle

Weight & dimensions (Width)

94.4 mm

Weight & dimensions (Depth)

288.4 mm

Weight & dimensions (Height)

84.7 mm

Weight & dimensions (Weight)

1090 g

Packaging data (Package weight)

1390 g

Packaging data (Package type)

Box

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage temperature (T-T))

-40 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

Black

Power (Power consumption (max))

21.6 W

Power (Power consumption (typical))

4.1 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal/Plastic

Packaging content (Manual)

Yes

Ports & interfaces (DC-in jack)

Yes

Design (Form factor)

Bullet

Weight & dimensions (Length)

288.4 mm

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

1000 GB

Power (Power source type)

DC

Sustainability (Compliance certificates)

CE/Electromagnetic Compatibility (EMC)

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in speaker(s))

Yes

Audio (Built-in microphone)

Yes

Storage (RAM capacity)

2000 MB

Audio (Number of microphones)

2

Other features (Audio output)

RCA

Design (IK code)

IK10

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/Wall/Pole

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

131

Camera (Lens viewing angle, horizontal)

109

Camera (Lens viewing angle, vertical)

59

Image sensor (Optical sensor size)

1/1.8 "

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

80 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

3072 x 2048 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

6 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Heat map/Intrusion/People counting/Tripwire

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Lens system (Fixed focal length)

2.8 mm

Audio (Audio input channels)

1.0 channels

Technical details (Lens mount interface)

M16

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.0001 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Technical details (Audio input)

RCA

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1

Video (Gain control type)

Auto/Manual

Ports & interfaces (RS-485 ports)

1

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264B/H.264H/H.265/M-JPEG

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 90

Camera (White balance)

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR),Variable Bit Rate (VBR)

Video (Video streaming)

Yes

Audio (Audio formats supported)

G.711 -law/G.711 A-law/G.723/G.726/PCM

Audio (Signal-to-Noise Ratio (SNR))

56 dB

Network (Quality of Service (QoS) support)

Yes

Network (Streaming method)

Multicast

Network (Supported network protocols)

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP P2P Auto Registration

Storage (ROM capacity)

4000 MB

Management features (Web browser)

Yes

Video (Smart IR)

Yes

Lens system (Closest focusing distance)

3.2 m

Night vision (Number of illumination LEDs)

4

Network (Number of users)

20 user(s)

Security (HTTPS encryption)

Yes

Security (Mirror)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

4.8 W

Performance (Dynamic range)

130 dB

Lens system (Detect distance)

70.2 m

Lens system (Identify distance)

7 m

Lens system (Observe distance)

28.1 m

Lens system (Recognize distance)

14 m

Video (Video recording)

Yes

Network (Networking standards)

IEEE 802.1x/IEEE 802.3at

Security (Network access storage (NAS))

Yes

Security (Human and vehicle targets classification)

Yes

Other features (Browser supported)

IE: IE 11, Chrome: Chrome 102, Firefox: Firefox 88

Security (Digital watermark)

Yes

Performance (People counting function)

Yes

Eriviited

ean13

6937552411104

MPN

1459797
