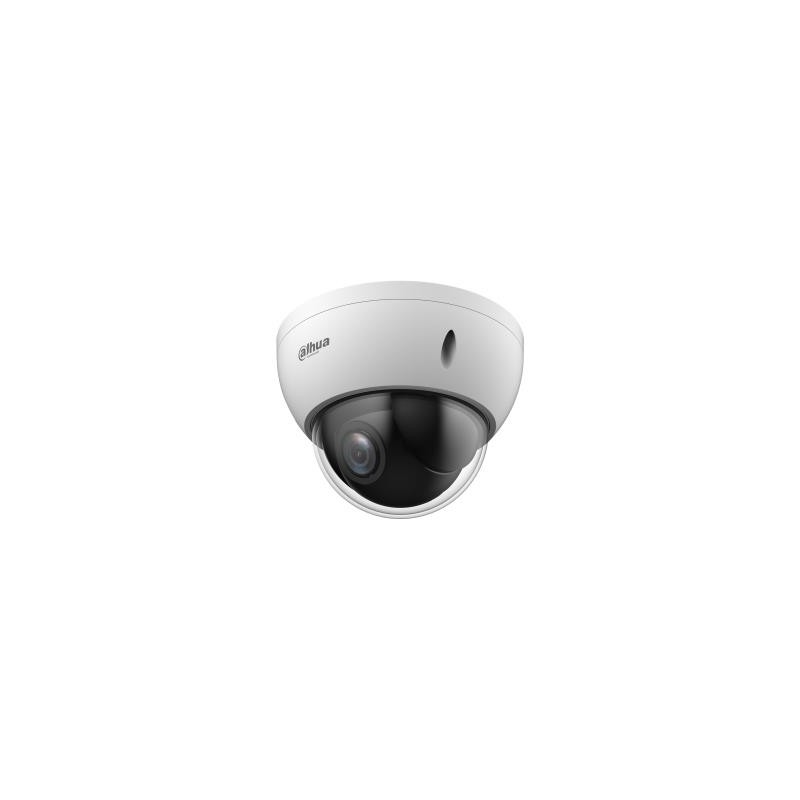

IP-kamera 4MP PTZ DOME SD22404DB-GNY DAHUA

Lisätiedot

Vendor Homepage

https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD2/SD22404DB-GNY

Garantija

36

Model

SD22404DB-GNY

Category Code

FNC

Unit Box Height

0.135

Unit Box Length

0.155

Unit Box Width

0.155

Units per Shipping Box

1

Unit Calculated Volume

0.003243 cubm

Unit Calculated Weight

0.71 kg

Summary

Dahua Technology WizSense SD22404DB-GNY. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angl

Weight & dimensions (Height)

89 mm

Weight & dimensions (Weight)

500 g

Packaging data (Package weight)

700 g

Operational conditions (Operating temperature (T-T))

-30 - 60 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-30 - 60 C

Weight & dimensions (Diameter)

122 mm

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

6.1 W

Power (Power consumption (typical))

2.3 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Dome

Camera (Camera shutter speed)

1 - 1/30000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Storage (Card reader integrated)

Yes

Storage (RAM capacity)

512 MB

Network (Ethernet interface type)

Fast Ethernet

Design (IK code)

IK10

Design (International Protection (IP) code)

IP66

Design (Mounting type)

Ceiling/Wall/Pole

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

105.7 - 33.6

Camera (Lens viewing angle, horizontal)

90.3 - 29.4

Camera (Lens viewing angle, vertical)

48.5 - 16.6

Image sensor (Optical sensor size)

1/2.8 "

Lens system (Number of lenses)

1

Lens system (Zoom capability)

Yes

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Video (Maximum resolution)

2560 x 1440 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

2D noise reduction,3D noise reduction

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Abandoned object/Crossing line/Face detection/Intrusion/Missing object/Moving object/Tripwire/Vehicle detection

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

2.8 - 12 mm

Camera (Minimum illumination)

0.0005 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

3

Video (Gain control type)

Auto/Manual

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Image stabilizer)

Yes

Video (Video compression formats)

H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG

Video (Digital Wide Dynamic Range (DWDR))

Yes

Camera (Pan range)

0 - 355

Camera (Tilt angle range)

0 - 90

Camera (White balance)

ATW/Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 288/640 x 480 (VGA)/704 x 576

Video (Video streaming)

Yes

Audio (Signal-to-Noise Ratio (SNR))

55 dB

Network (Quality of Service (QoS) support)

Yes

Network (Streaming method)

Multicast/Unicast

Network (Supported network protocols)

HTTP HTTPS TCP/IP IPv4 RTSP UDP SMTP NTP DHCP DNS DDNS IPv6 802.1x SSL Qos FTP UPnP ICMP SNMP IGMP ARP RTCP RTP PPPoE RTMP Bonjour SAMBA NFS

Storage (ROM capacity)

128 MB

Security (Active tampering alarm)

Yes

Management features (Web browser)

Yes

Lens system (Closest focusing distance)

1.5 m

Network (Number of users)

20 user(s)

Management features (Web-based management)

Yes

Lens system (Detect distance)

240 m

Lens system (Identify distance)

24 m

Lens system (Observe distance)

94.8 m

Lens system (Recognize distance)

48 m

Video (Bit rate)

H.264: 2816Kbps - 13056Kbps H.265: 1024Kbps - 7936Kbps

Performance (PTZ control)

Yes

Performance (PTZ modes)

5 Pattern/8 Tour

Camera (Pan manual speed)

0.1 - 100 /sec

Camera (Pan preset speed)

100 /sec

Camera (Tilt manual speed)

0.1 - 60 /sec

Camera (Tilt preset speed)

60 /sec

Power (DC output current)

1 A

Lens system (Auto focus)

Yes

Lens system (Minimum aperture number)

1.6

Performance (Preset points)

Yes

Design (Fog proof)

Yes

Performance (PTZ protocols)

Pelco-P/D

Performance (Tour recording)

Yes

Lens system (Digital zoom)

16 x

Lens system (Optical zoom)

4 x

Tilausviitteet

EAN13

6923172536334

Valmistajan tuotenumero (MPN)

1404572
