Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Series Overview

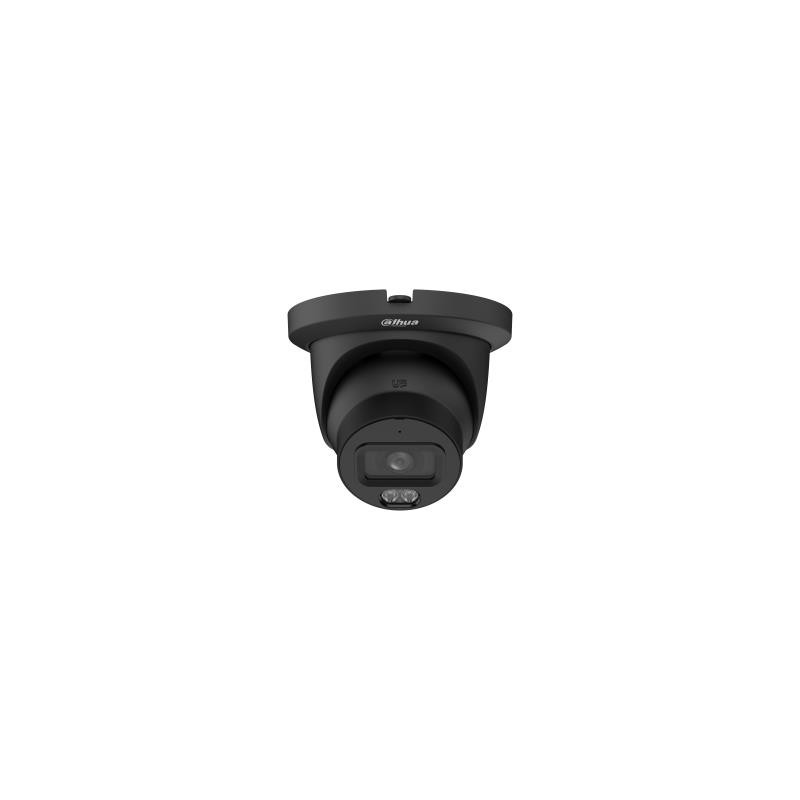

With its deep learning algorithms, the WizMind 5 Series camera offers advanced analytical capabilities for both audio and video. It integrates intelligent features such as video metadata, AcuPick, face detection, perimeter protection, and people counting. Powered by the Xinghan Large-Scale AI Models-Vision, the camera excels in object detection, recognition, and scene adaptation. Equipped with AI-ISP imaging technology, it offers enhanced night vision performance. The series is designed for durability, being dust-proof, waterproof, and vandal-proof, in compliance with IP67 and IK10 standards, though support for these certifications may vary across models.
Xinghan Large-Scale AI Models-Vision
Xinghan Large-Scale AI Models-Vision seamlessly expands the storage and operational capacity of algorithmic models through the powerful integration of edge AI model algorithms and NPU computing power. Engineered with a lightweight transformer architecture and enhanced by model distillation and quantization techniques, it optimizes the computing power consumption of ViT operators. This enables the system to collaborate on multiple tasks simultaneously through joint inference between small and large models optimized for edge devices.
Self-Learning
Empowered by deep learning technology, the device recognizes different types of targets and their statuses through learning and analyzing target features to detect targets and filter out false alarms.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the fullcolor video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.
AcuPick
This industry-leading search technology effectively utilizes both front-end and back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dustproof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/3072 x 2048/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Dome, Ceiling, wall, Black, White, Weatherproof Yes, IP security camera, Wired, Placement Outdoor, Optical sensor size 1, 3 ", Sensor type CMOS, 1xNumber of lenses, Night vision Yes, Total megapixels 5 MP, Ethernet LAN Yes, Power source type PoE,DC
Bullet, Ceiling, Wall, Pole, Black, White, IP code IP66, IP security camera, Wired, Placement Outdoor, Day, night mode Yes, Minimum illumination 0.005 lx, Pan range -90 - 90 °, Optical sensor size 1, 3 ", Sensor type CMOS, 1xNumber of lenses, Identify distance 8 m, Night vision Yes, Night vision distance 30 m, Total megapixels 4 MP, Frame...
Turret, Ceiling, White, IP code IP67, IP security camera, Wired, Placement Outdoor, People counting function Yes, Wide Dynamic Range (WDR) Yes, Day, night mode Yes, Alarm input, output Yes, Minimum illumination 0.0005 lx, Pan range 0 - 360 °, White balance Auto, Manual, Natural, Outdoor, Regional custom, Street lamp, Camera shutter type...
Dome, Ceiling/Wall/Pole, Black, IP code IP67, IP security camera, Wired, Wide Dynamic Range (WDR) Yes, Day/night mode Yes, Minimum illumination 0.0006 lx, Pan range 0 - 360 °, White balance Auto/Manual/Natural/Outdoor/Regional custom, Camera shutter type Electronic, Optical sensor size 1/2.9 ", Sensor type CMOS, Night vision Yes, Night...
