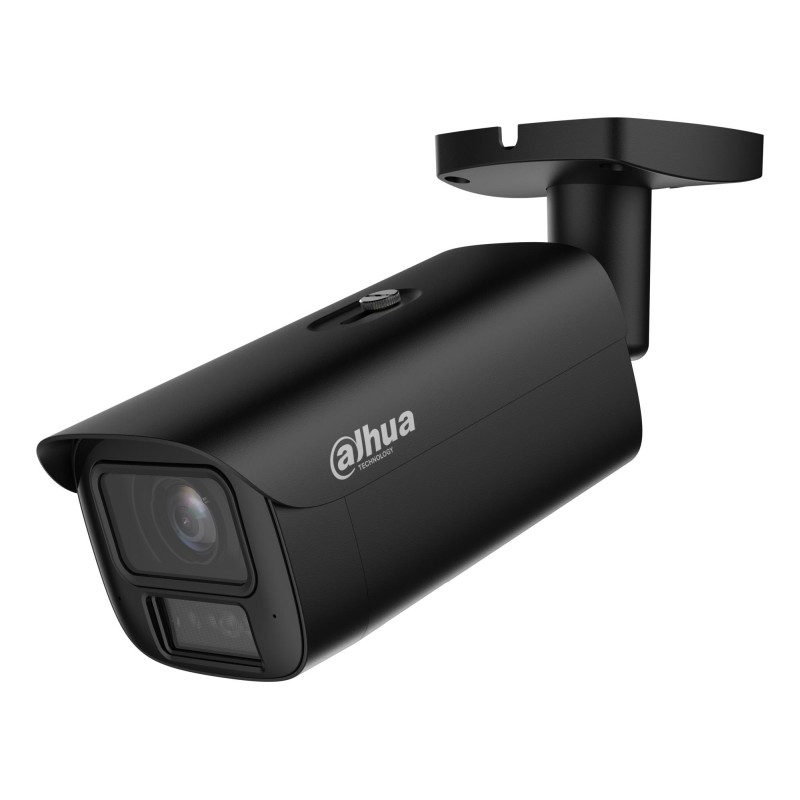

NET CAMERA 4MP BULLET/HFW5459E1-ZE-IL-2712-B DAHUA

Lisätiedot

Vendor Homepage

https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/4MP/IPC-HFW5459E1-ZE-IL

Garantija

36

Category Code

FNC

Unit Calculated Volume

0.006 cubm

Unit Calculated Weight

1.3 kg

Summary

Dahua Technology WizMind IPC-HFW5459E1-ZE-IL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.0007 lx, Angle of rotati

Weight & dimensions (Width)

96.7 mm

Weight & dimensions (Depth)

279.8 mm

Weight & dimensions (Height)

94.9 mm

Weight & dimensions (Weight)

1090 g

Packaging data (Package weight)

1390 g

Packaging data (Package type)

Box

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage relative humidity (H-H))

0 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

Black

Power (Power consumption (max))

20.5 W

Power (Power consumption (typical))

4.1 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Packaging content (Manual)

Yes

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Ports & interfaces (DC-in jack)

Yes

Design (Form factor)

Bullet

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

1000 GB

Power (Power source type)

DC,PoE

Sustainability (Compliance certificates)

CE/Electromagnetic Compatibility (EMC)

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Storage (RAM capacity)

2000 MB

Other features (Audio output)

RCA

Design (IK code)

IK10

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/wall

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

54 - 137

Camera (Lens viewing angle, horizontal)

47 - 115

Camera (Lens viewing angle, vertical)

27 - 62

Image sensor (Optical sensor size)

1/1.8 "

Night vision (LED type)

IR/White

Night vision (Night vision)

Yes

Night vision (Night vision distance)

60 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Face detection/People counting/Tripwire

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

2.7 - 12 mm

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Technical details (Lens type)

Varifocal

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.0007 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Technical details (Audio input)

RCA

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Maximum aperture number)

1.8

Video (Gain control type)

Auto/Manual

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Image stabilizer)

Yes

Video (Video compression formats)

H.264/H.264B/H.264H/H.265/H.265+/M-JPEG

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 90

Camera (White balance)

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Video streaming)

Yes

Audio (Audio formats supported)

G.711 -law/G.711 A-law/G.723/G.726/PCM

Audio (Signal-to-Noise Ratio (SNR))

56 dB

Network (Quality of Service (QoS) support)

Yes

Network (Streaming method)

Multicast

Network (Supported network protocols)

IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS SAMBA PPPoE SNMP P2P Auto Registration

Storage (ROM capacity)

4000 MB

Lens system (Closest focusing distance)

0.13 m

Network (Number of users)

20 user(s)

Security (HTTPS encryption)

Yes

Security (Mirror)

Yes

Power (Power consumption (Power over Ethernet (PoE)))

4.8 W

Lens system (Detect distance (tele))

130.8 m

Lens system (Detect distance (wide))

57.5 m

Lens system (Identify distance (tele))

13.1 m

Lens system (Identify distance (wide))

5.8 m

Lens system (Observe distance (tele))

52.3 m

Lens system (Observe distance (wide))

23 m

Lens system (Recognize distance (tele))

26.2 m

Lens system (Recognize distance (wide))

11.5 m

Video (Video recording)

Yes

Security (Network access storage (NAS))

Yes

Management features (Cloud-managed)

No

Security (Human and vehicle targets classification)

Yes

Other features (Browser supported)

IE: IE 11, Chrome: Chrome 102, Firefox: Firefox 88

Security (Digital watermark)

Yes

Performance (People counting function)

Yes

Tilausviitteet

Valmistajan tuotenumero (MPN)

1459800
