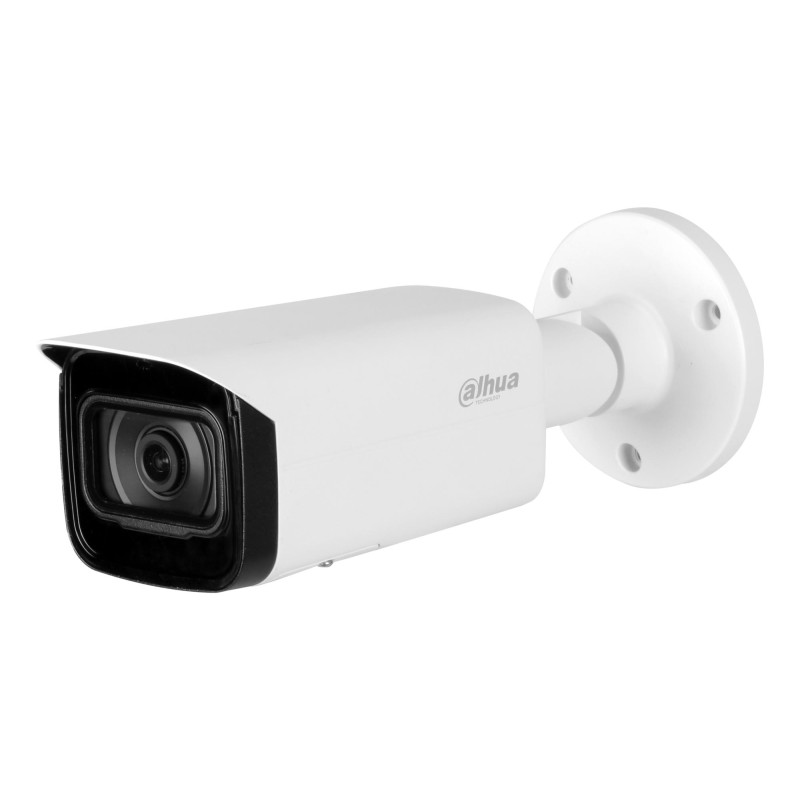

IP-kamera 4MP IR BULLET ITietokone-HFW5442T-ASE-0280BS3 DAHUA

Lisätiedot

Vendor Homepage

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/4MP/IPC-HFW5442T-ASE S3

Garantija

36

Model

IPC-HFW5442T-ASE-0280B-S3

Category Code

FNC

Unit Box Height

0.11

Unit Box Length

0.3

Unit Box Width

0.125

Units per Shipping Box

1

Unit Calculated Volume

0.004125 cubm

Unit Calculated Weight

1.22 kg

Summary

Dahua Technology WizMind IPC-HFW5442T-ASE-0280B-S3. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0004 lx, Angle of rot

Weight & dimensions (Width)

79 mm

Weight & dimensions (Height)

75.9 mm

Weight & dimensions (Weight)

820 g

Packaging data (Package weight)

1080 g

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage relative humidity (H-H))

10 - 95 %

Operational conditions (Storage temperature (T-T))

-40 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

8.3 W

Power (Power consumption (typical))

4.1 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Packaging content (Manual)

Yes

Ports & interfaces (DC-in jack)

Yes

Design (Form factor)

Bullet

Weight & dimensions (Length)

244.1 mm

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

1000 GB

Power (Power source type)

DC,PoE

Sustainability (Compliance certificates)

CE/Federal Communications Commission (FCC)/UL

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Storage (RAM capacity)

1024 MB

Network (Ethernet interface type)

Fast Ethernet

Design (IK code)

IK10

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Pole clamp

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

139

Camera (Lens viewing angle, horizontal)

112

Camera (Lens viewing angle, vertical)

58

Image sensor (Optical sensor size)

1/1.8 "

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

80 m

Video (Frame rate)

60 fps

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Lens system (Fixed focal length)

2.8 mm

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.0004 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Lens system (Fixed focus)

Yes

Lens system (Maximum aperture number)

1.6

Video (Gain control type)

Auto

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264B/H.264H/H.265/M-JPEG

Image sensor (Number of sensors)

1

Camera (Angle of rotation)

360

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

0 - 90

Camera (White balance)

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Video streaming)

Yes

Audio (Audio formats supported)

G.711 -law/G.711 A-law/G.723/G.726/PCM

Network (Quality of Service (QoS) support)

Yes

Network (Streaming method)

Multicast

Network (Supported network protocols)

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

Storage (ROM capacity)

4096 MB

Lens system (Closest focusing distance)

1.3 m

Night vision (Number of illumination LEDs)

4

Security (Mirror)

Yes

Performance (Dynamic range)

140 dB

Lens system (Detect distance)

61.5 m

Lens system (Identify distance)

6.2 m

Lens system (Observe distance)

24.6 m

Lens system (Recognize distance)

12.3 m

Video (Video recording)

Yes

Security (IP address filtering)

Yes

Network (Networking standards)

IEEE 802.1x/IEEE 802.3af

Camera (Number of Privacy masking areas)

8

Security (Network access storage (NAS))

Yes

Security (Human and vehicle targets classification)

Yes

Tilausviitteet

EAN13

6923172588692

Valmistajan tuotenumero (MPN)

1398021
