Kuvaus
5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image Outputs max. 5 MP (2960 × 1668) @25/30 fps Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic 12 VDC/PoE power supply; ePoE IP67 and IK10 protection, heater
Tuotetiedot
Viite
IPC-HDBW5559E1-ZHE-IL-27135-BLACK
Varastossa
5 Tuotteet
Lisätiedot
Vendor Homepage
https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/5MP/IPC-HDBW5559E1-ZHE-IL
Garantija
36
Category Code
FNC
Units per Shipping Box
1
Unit Calculated Volume
0.003288 cubm
Unit Calculated Weight
1.3 kg
Summary

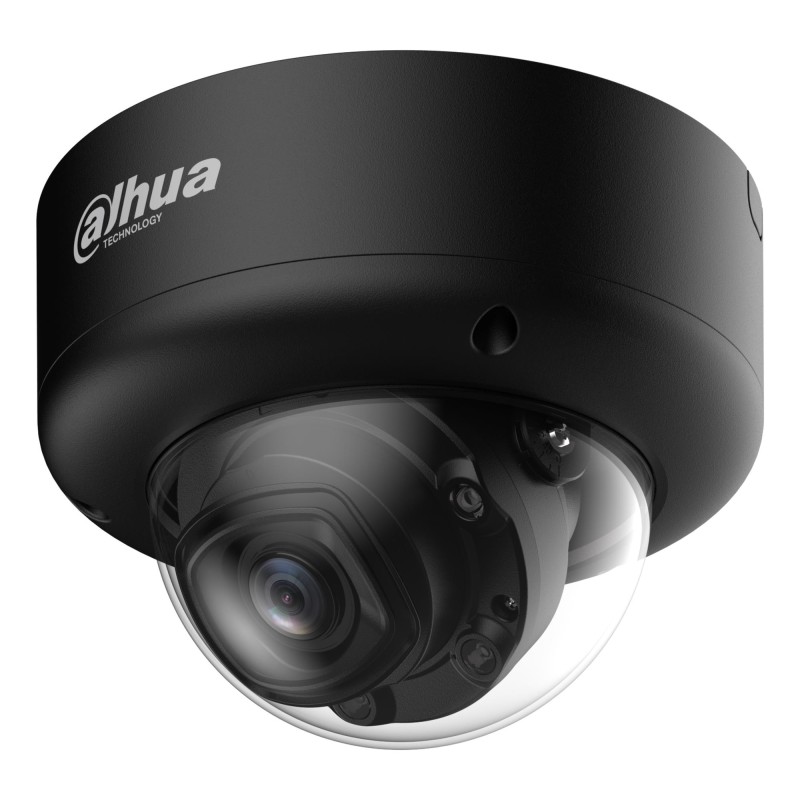

Dahua Technology WizMind IPC-HDBW5559E1-ZHE-IL-27135-Black. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Dome. Minimum illumination: 0.0005 lx
Weight & dimensions (Height)
118 mm
Weight & dimensions (Weight)
1160 g
Packaging data (Package weight)
1360 g
Operational conditions (Operating temperature (T-T))
-40 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
159 mm
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
Black
Power (Power consumption (max))
12.9 W
Power (Power consumption (typical))
3.7 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Packaging content (Manual)
Yes
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
1000 GB
Power (Power source type)
PoE,DC
Sustainability (Compliance certificates)
CE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Design (Protection features)
Vandal proof
Storage (RAM capacity)
2048 MB
Network (Ethernet interface type)
Fast Ethernet
Design (IK code)
IK10
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/Wall/Pole
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Outdoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
134 - 37
Camera (Lens viewing angle, horizontal)
110 - 32
Camera (Lens viewing angle, vertical)
57 - 18
Image sensor (Optical sensor size)
1/2.7 "
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
60 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2960 x 1668 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Total megapixels)
5 MP
Storage (Built-in HDD)
No
Security (Intelligent Video Surveillance (IVS) system features)
Intrusion/People counting/Tripwire
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Focal length range)
2.7 - 13.5 mm
Security (Alarm input channels)
2
Security (Alarm output channels)
1
Performance (Alarm input/output)
Yes
Camera (Minimum illumination)
0.0005 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Image sensor (Progressive scan)
Yes
Lens system (Maximum aperture number)
1.6
Video (Gain control type)
Auto/Manual
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Video (Image stabilizer)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265/M-JPEG
Camera (Angle of rotation)
355
Camera (Pan range)
0 - 355
Camera (Tilt angle range)
0 - 80
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
Video (Video streaming)
Yes
Audio (Audio formats supported)
G.711 -law/G.711 A-law/G.723/G.726/PCM
Audio (Signal-to-Noise Ratio (SNR))
56 dB
Network (Quality of Service (QoS) support)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
Storage (ROM capacity)
4096 MB
Video (Smart IR)
Yes
Lens system (Closest focusing distance)
0.3 m
Night vision (Number of illumination LEDs)
4
Network (Number of users)
20 user(s)
Security (HTTPS encryption)
Yes
Security (Mirror)
Yes
Performance (Dynamic range)
120 dB
Lens system (Detect distance (tele))
202 m
Lens system (Detect distance (wide))
65.4 m
Lens system (Identify distance (tele))
20.2 m
Lens system (Identify distance (wide))
6.5 m
Lens system (Observe distance (tele))
80.8 m
Lens system (Observe distance (wide))
26.1 m
Lens system (Recognize distance (tele))
40.4 m
Lens system (Recognize distance (wide))
13.1 m
Video (Video recording)
Yes
Network (Networking standards)
IEEE 802.1x/IEEE 802.3at
Security (Network access storage (NAS))
Yes
Security (Human and vehicle targets classification)
Yes
Security (Digital watermark)
Yes
Performance (People counting function)
Yes
Tilausviitteet
Valmistajan tuotenumero (MPN)
1459792
