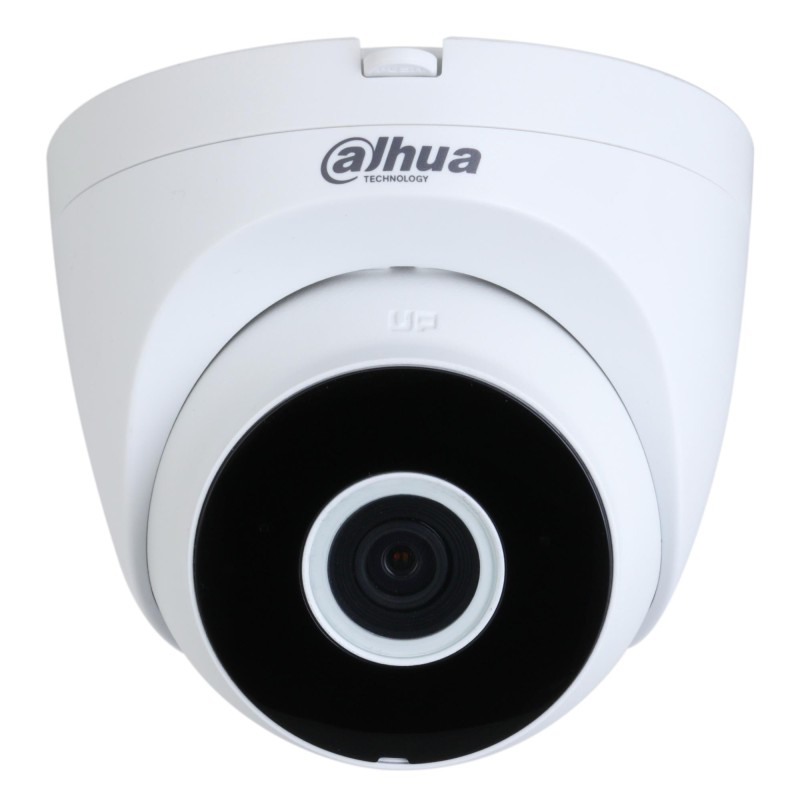

Kuvaus
4-MP 1/3" CMOS image sensor, low luminance, and high definition image Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and SMD (human) The antenna offers 2.4G Wi-Fi with a range of 120 m Supports max. 256 G Micro SD card.Built-in MIC 12 VDC power supply
Tuotetiedot
Viite
IPC-HDW1430DT-SAW-0280B
Varastossa
2 Tuotteet
Lisätiedot
Vendor Homepage
https://www.dahuasecurity.com/de/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/4MP/IPC-HDW1430DT-SAW
Garantija
36
Model
IPC-HDW1430DT-SAW-0280B
Category Code
FNC
Unit Box Height
0.11
Unit Box Length
0.14
Unit Box Width
0.125
Units per Shipping Box
1
Unit Calculated Volume
0.001925 cubm
Unit Calculated Weight
0.473 kg
Summary
Dahua Technology IPC-HDW1430DT-SAW-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.003 lx, Angle o
Weight & dimensions (Height)
102.2 mm
Weight & dimensions (Weight)
316.9 g
Packaging data (Package weight)
463 g
Operational conditions (Operating temperature (T-T))
-30 - 60 C
Operational conditions (Storage temperature (T-T))
-30 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
109.9 mm
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
802.11b/802.11g/Wi-Fi 4 (802.11n)
Design (Product colour)
White
Power (Power consumption (max))
4.2 W
Power (Power consumption (typical))
2 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal/Plastic
Packaging content (Manual)
Yes
Ports & interfaces (DC-in jack)
Yes
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 - 1/100000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
256 GB
Power (Power source type)
DC
Sustainability (Compliance certificates)
CE/Federal Communications Commission (FCC)
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Storage (RAM capacity)
64 MB
Network (Ethernet interface type)
Fast Ethernet
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling/Wall/Pole
Performance (Connectivity technology)
Wired & Wireless
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor
Performance (Type)
IP security camera
Camera (Camera pan control)
Yes
Camera (Camera tilt control)
Yes
Camera (Lens viewing angle, diagonal)
107
Camera (Lens viewing angle, horizontal)
90
Camera (Lens viewing angle, vertical)
50
Image sensor (Optical sensor size)
1/3 "
Night vision (LED type)
IR
Night vision (Night vision)
Yes
Night vision (Night vision distance)
30 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
2560 x 1440 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Total megapixels)
4 MP
Storage (Built-in HDD)
No
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Sensor type)
CMOS
Lens system (Fixed focal length)
2.8 mm
Camera (Minimum illumination)
0.003 lx
Video (Back Light Compensation (BLC))
Yes
Image sensor (Progressive scan)
Yes
Lens system (Fixed focus)
Yes
Lens system (Maximum aperture number)
2
Video (Gain control type)
Auto
Security (Video motion detection)
Yes
Video (Video compression formats)
H.264/H.264B/H.264H/H.265
Image sensor (Number of sensors)
1
Video (Digital Wide Dynamic Range (DWDR))
Yes
Camera (Angle of rotation)
360
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 78
Camera (White balance)
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Video streaming)
Yes
Network (Streaming method)
Multicast
Network (Supported network protocols)
IPv4, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, RTMP
Storage (ROM capacity)
16 MB
Lens system (Closest focusing distance)
1 m
Night vision (Number of illumination LEDs)
1
Security (Mirror)
Yes
Lens system (Detect distance)
68 m
Lens system (Identify distance)
6.8 m
Lens system (Observe distance)
27.2 m
Lens system (Recognize distance)
13.6 m
Video (Video recording)
Yes
Security (IP address filtering)
Yes
Network (Networking standards)
IEEE 802.1x
Tilausviitteet
EAN13
6923172540270
Valmistajan tuotenumero (MPN)
1437703
