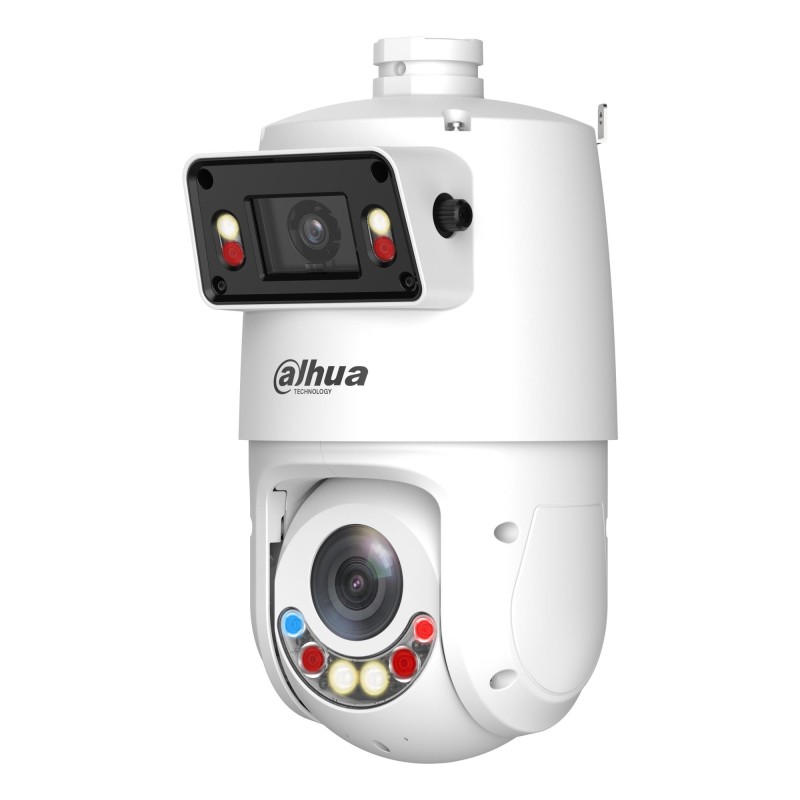

NET CAMERA 4+4MP IR PTZ DOME SDT4E425-4F-GB-A-PV1-S2 DAHUA

Lisätiedot

Vendor Homepage

https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/X-Spans-Series/Distribution/SDT4E425-4F-GB-A-PV1-S2 S2

Garantija

36

Category Code

FNC

Unit Box Height

0.497

Unit Box Length

0.257

Unit Box Width

0.243

Units per Shipping Box

2

Unit Calculated Volume

0.03721 cubm

Unit Calculated Weight

5.5 kg

Summary

Dahua Technology SDT4E425-4F-GB-A-PV1-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, International Protection (IP) code: IP66. Minimum illuminat

Weight & dimensions (Width)

184.4 mm

Weight & dimensions (Height)

304.6 mm

Weight & dimensions (Weight)

3410 g

Operational conditions (Operating temperature (T-T))

-40 - 65 C

System requirements (Mobile operating systems supported)

Android/iOS

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

White

Power (Power consumption (max))

25 W

Power (Power consumption (typical))

14 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Packaging content (Manual)

Yes

Ports & interfaces (DC-in jack)

Yes

Weight & dimensions (Length)

160 mm

Audio (Audio system)

2-way

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

512 GB

Power (Power source type)

DC,PoE

Sustainability (Compliance certificates)

CE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in speaker(s))

Yes

Audio (Built-in microphone)

Yes

Storage (RAM capacity)

2048 MB

Audio (Number of microphones)

2

Network (Ethernet interface type)

Fast Ethernet

Design (International Protection (IP) code)

IP66

Design (Mounting type)

Ceiling/Wall/Pole

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

120

Camera (Lens viewing angle, horizontal)

101

Camera (Lens viewing angle, vertical)

53

Image sensor (Optical sensor size)

1/2.8 "

Lens system (Zoom capability)

Yes

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

100 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

2560 x 1440 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

2D noise reduction,3D noise reduction

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Abandoned object/Intrusion/Missing object/Tripwire

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Security (Alarm input channels)

2

Security (Alarm output channels)

1

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.001 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Image sensor (Progressive scan)

Yes

Video (Gain control type)

Auto/Manual

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Image stabilizer)

Yes

Performance (Built-in light)

Yes

Video (Video compression formats)

H.264+/H.264B/H.264H/H.264M/H.265/H.265+/M-JPEG

Video (Digital Wide Dynamic Range (DWDR))

Yes

Camera (Pan range)

0 - 360

Camera (Tilt angle range)

-15 - 90

Camera (White balance)

Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR),Variable Bit Rate (VBR)

Video (Video streaming)

Yes

Audio (Audio formats supported)

G.711 -law/G.711 A-law/G.722.1/G.726/G.729/MPEG-2/PCM

Audio (Signal-to-Noise Ratio (SNR))

55 dB

Network (Quality of Service (QoS) support)

Yes

Network (Streaming method)

Multicast/Unicast

Network (Supported network protocols)

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB, NFS

Storage (ROM capacity)

4096 MB

Network (Number of users)

20 user(s)

Security (HTTPS encryption)

Yes

Performance (Dynamic range)

120 dB

Lens system (Detect distance)

100 m

Lens system (Identify distance)

10 m

Lens system (Observe distance)

40 m

Lens system (Recognize distance)

20 m

Video (Video recording)

Yes

Network (Networking standards)

IEEE 802.1x/IEEE 802.3at

Performance (PTZ control)

Yes

Performance (PTZ modes)

5 Pattern/5 Scan/8 Tour

Power (DC output current)

3 A

Camera (Number of Privacy masking areas)

24

Security (Network access storage (NAS))

Yes

Security (Human and vehicle targets classification)

Yes

Lens system (Auto focus)

Yes

Performance (Preset points)

Yes

Lens system (Focus)

Manual

Performance (Tour recording)

Yes

Lens system (Optical zoom)

25 x

Camera (Auto flip)

Yes

Performance (Auto-tracking)

Yes

Performance (Auto patrol mode)

Yes

Tilausviitteet

EAN13

6939554936432

Valmistajan tuotenumero (MPN)

1458733
