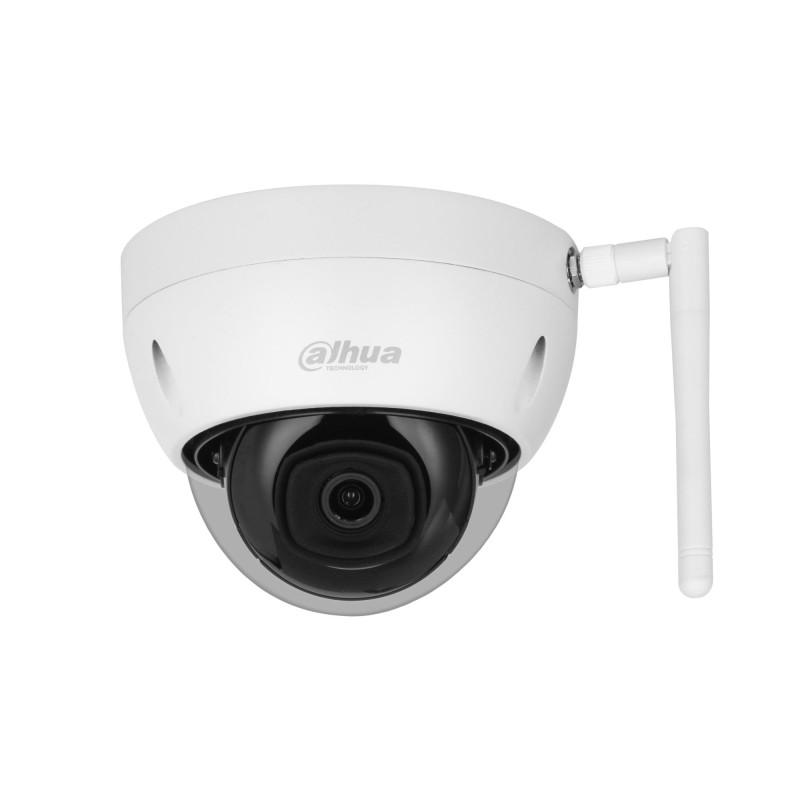

IP-kamera 2MP IR DOME WIFI ITietokone-HDBW1230DE-SW-0280B DAHUA

Lisätiedot

Vendor Homepage

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/Wi-Fi-Series/2MP/IPC-HDBW1230DE-SW

Garantija

36

Model

IPC-HDBW1230DE-SW-0280B

Category Code

FNC

Unit Box Height

0.145

Unit Box Length

0.15

Unit Box Width

0.125

Units per Shipping Box

1

Unit Calculated Volume

0.002719 cubm

Unit Calculated Weight

0.646 kg

Summary

Dahua Technology Consumer DH-IPC-HDBW1230DEP-SW-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0025 lx, Fi

Weight & dimensions (Height)

88.7 mm

Weight & dimensions (Weight)

414 g

Packaging data (Package weight)

592 g

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage temperature (T-T))

-30 - 60 C

System requirements (Mobile operating systems supported)

Android/iOS

Weight & dimensions (Diameter)

110.7 mm

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11b/802.11g/Wi-Fi 4 (802.11n)

Design (Product colour)

White

Power (Power consumption (max))

4.9 W

Power (Power consumption (typical))

2 W

Ports & interfaces (Ethernet LAN (RJ-45) ports)

1

Design (Housing material)

Metal

Management features (Firmware upgradeable)

Yes

Operational conditions (Operating relative humidity (H-H))

0 - 95 %

Design (Form factor)

Dome

Camera (Camera shutter speed)

1/3 s-1/100,000 s s

Camera (Field of view (FOV) angle)

120

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

256 GB

Power (Power source type)

DC

Sustainability (Compliance certificates)

CE/Federal Communications Commission (FCC)

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Network (Ethernet interface type)

Fast Ethernet

Security (Security algorithms)

HTTPS

Design (IK code)

IK10

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling

Performance (Connectivity technology)

Wired & Wireless

Performance (Placement supported)

Outdoor

Performance (Type)

IP security camera

Camera (Camera pan control)

Yes

Camera (Camera tilt control)

Yes

Camera (Lens viewing angle, diagonal)

120

Camera (Lens viewing angle, horizontal)

100

Camera (Lens viewing angle, vertical)

53

Image sensor (Optical sensor size)

1/2.8 "

Lens system (Number of lenses)

1

Lens system (Zoom capability)

No

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Video (Frame rate)

30 fps

Video (Maximum resolution)

1920 x 1080 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

2 MP

Storage (Built-in HDD)

No

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Lens system (Focal length range)

2.8 mm

Camera (Minimum illumination)

0.0025 lx

Video (Back Light Compensation (BLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Fixed focus)

Yes

Lens system (Maximum aperture number)

2

Video (Flip & mirror)

Yes

Video (Gain control type)

Auto

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264B/H.264H/H.265

Image sensor (Number of sensors)

1

Video (Digital Wide Dynamic Range (DWDR))

Yes

Camera (Angle of rotation)

355

Camera (Pan range)

0 - 355

Camera (Tilt angle range)

0 - 75

Camera (White balance)

Custom modes/Manual/Natural/Outdoor/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Supported graphics resolutions)

1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)

Video (Video formats supported)

H.264/H.264B/H.265

Video (Video streaming)

Yes

Audio (Signal-to-Noise Ratio (SNR))

56 dB

Network (Supported network protocols)

IPv4 HTTP TCP UDP ARP RTP RTSP RTCP DHCP DNS NTP Multicast RTMP

Storage (ROM capacity)

16 MB

Management features (Management software)

Smart PSS DSS DMSS

Management features (Web browser)

Yes

Video (Smart IR)

Yes

Night vision (Number of illumination LEDs)

3

Network (Number of users)

6 user(s)

Security (HTTPS encryption)

Yes

Management features (Web-based management)

Yes

Performance (Dynamic range)

56 dB

Lens system (Detect distance)

46.9 m

Lens system (Identify distance)

4.7 m

Lens system (Observe distance)

18.8 m

Lens system (Recognize distance)

9.4 m

Video (Bit rate)

9 - 4096

Video (Supported video modes)

1080p/720p/960p

Performance (Antenna type)

External

Performance (Antennas quantity)

1

Performance (Luminous flux)

0.0025 lm

Lens system (Lens diameter)

2.8 mm

Video (Video recording)

Yes

Network (Channel bandwidth)

36 MHz

Network (Live view)

Yes

Network (Wi-Fi data rate (max))

2400 Mbit/s

Storage (Flash memory)

64 MB

Security (Motion sensor)

Yes

Management features (Smartphone/tablet remote support)

Yes

Tilausviitteet

EAN13

6923172539960

Valmistajan tuotenumero (MPN)

1391443
