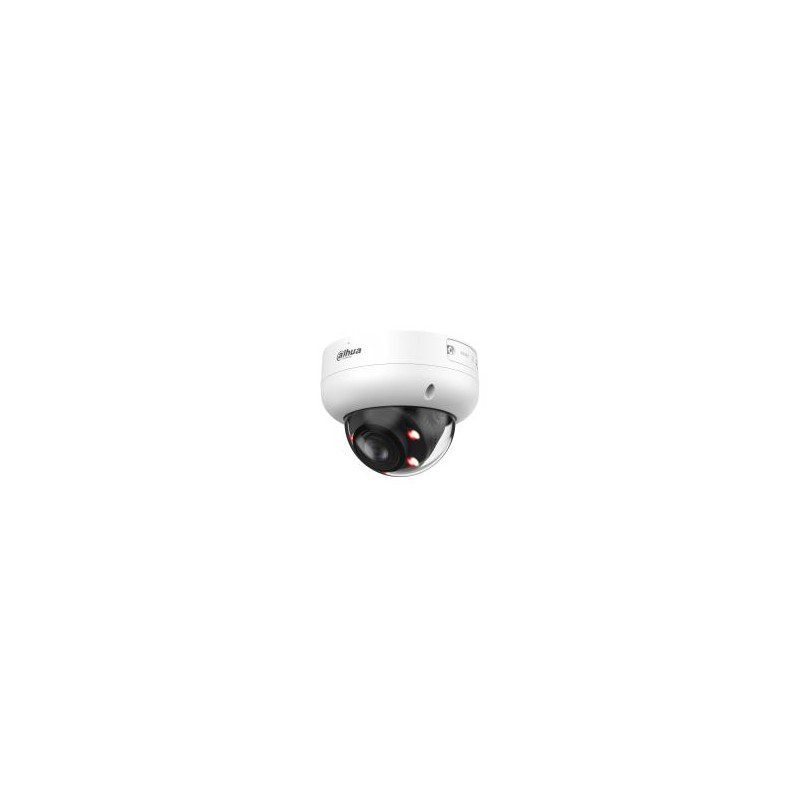

8MP Smart Dual Light Vari-focal Dome WizSense Network Camera
- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. - Outputs max. 8 MP (3840 × 2160)@25/30 fps. - H.265 codec, high compression rate, ultra-low bit rate. - Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m. - ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. - Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. - Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human). - Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. - Supports max. 512 G Micro SD card; built-in Mic. - 12 VDC/PoE power supply. - IP67, IK10 protection. - SMD 4.0. - Supports AI SSA. - SMD area can be set in warm light areas that support triggering alarms.
Operational conditions (Operating temperature (T-T))
-30 - 60 C
Operational conditions (Storage temperature (T-T))
-40 - 60 C
System requirements (Mobile operating systems supported)
Android/iOS
Weight & dimensions (Diameter)
122 mm
Audio (Audio output channels)
1.0 channels
Network (Bluetooth)
No
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
No
Design (Product colour)
White
Power (Power consumption (max))
9 W
Ports & interfaces (Ethernet LAN (RJ-45) ports)
1
Design (Housing material)
Metal
Management features (Firmware upgradeable)
Yes
Design (Form factor)
Dome
Camera (Camera shutter speed)
1/3 s-1/100,000 s
Storage (Compatible memory cards)
MicroSD (TransFlash)
Storage (Maximum memory card size)
512 GB
Power (Power source type)
DC,PoE
Storage (Card reader integrated)
Yes
Performance (Wide Dynamic Range (WDR))
Yes
Audio (Built-in microphone)
Yes
Security (Password protection)
Yes
Storage (RAM capacity)
1024 MB
Network (Ethernet interface type)
Fast Ethernet
Design (IK code)
IK10
Design (International Protection (IP) code)
IP67
Design (Mounting type)
Ceiling
Performance (Connectivity technology)
Wired
Performance (Day/night mode)
Yes
Performance (Placement supported)
Indoor & outdoor
Performance (Type)
IP security camera
Camera (Lens viewing angle, diagonal)
138 - 36
Camera (Lens viewing angle, horizontal)
114 - 32
Camera (Lens viewing angle, vertical)
58 - 17
Image sensor (Optical sensor size)
1/2.7 "
Lens system (Number of lenses)
1
Night vision (LED type)
IR/White
Night vision (Night vision)
Yes
Night vision (Night vision distance)
50 m
Video (Frame rate)
30 fps
Video (Maximum resolution)
3840 x 2160 pixels
Video (Noise reduction)
Yes
Video (Noise reduction technology)
3D noise reduction
Video (Total megapixels)
8 MP
Power (DC output voltage)
12
Packaging content (Number of cameras)
1
Image sensor (Number of effective pixels (H x V))
3840 x 2160 pixels
Image sensor (Sensor type)
CMOS
Lens system (Focal length range)
2.7 - 13.5 mm
Security (Alarm input channels)
1
Security (Alarm output channels)
1
Audio (Audio input channels)
1.0 channels
Camera (Minimum illumination)
0.007 lx
Video (Back Light Compensation (BLC))
Yes
Video (Highlight Compensation (HLC))
Yes
Camera (Adjustment shutter speed)
Auto/Manual
Image sensor (Progressive scan)
Yes
Lens system (Fixed focus)
Yes
Lens system (Maximum aperture number)
1
Video (Gain control type)
Auto/Manual
Video (Region of Interest (ROI) encoding)
Yes
Security (Video motion detection)
Yes
Performance (Built-in light)
Yes
Video (Video compression formats)
H.264/H.265
Image sensor (Number of sensors)
1
Camera (Angle of rotation)
355
Camera (Pan range)
0 - 360
Camera (Tilt angle range)
0 - 80
Camera (White balance)
Auto/Custom modes/Lamp/Manual/Natural/Outdoor
Video (Bit rate control)
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video (Supported graphics resolutions)
1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
