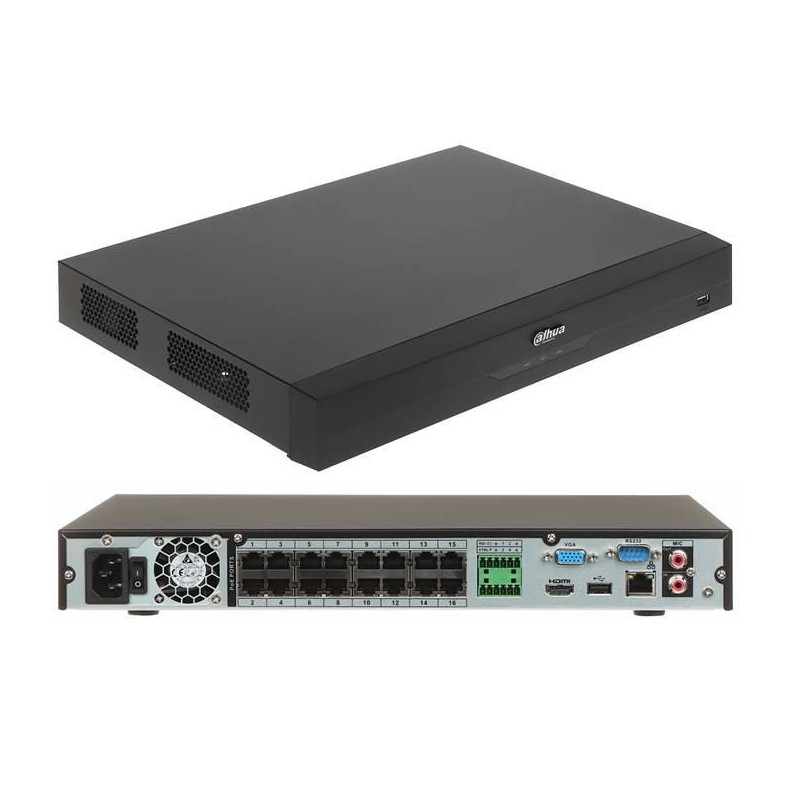

VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps
2 SATA III ports, up to 16 TB for a single HDD
PoE 16 ports, 10/100 Mbps, IEEE 802.3 af/at, total 130W max
No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1
Desktop mounted chassis
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
Channels 4 | Power supply requirements DC48 V/53 V, 1.5 A/1.36 A | Power consumption 10 Watts | Dim. 375 mm × 282.4 mm × 53 mm | Temp. range –10 °C to +55 °C | Colour Black
Channels 4 | Drives/bays 1 | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 260 mm × 232.7 mm × 47.6 mm | Temp. range –10 °C to +55 °C
Channels 8 | Drives/bays 1 | CPU Industrial-grade processor | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 204.6 × 206.4 × 45.6mm | Temp. range –10 °C to +55 °C | Colour White
Channels 16 | CPU Industrial-grade processor | Power supply requirements 100–240 VAC, 50/60 Hz | Dim. 375.0 × 327.9 × 53.0 mm | Temp. range –10 °C to +55 °C
Channels 8 | CPU Industrial-grade | Integrated LAN Gigabit | Power supply requirements 100–240 VAC, 50/60 Hz | Dim. 375.0 × 327.9 × 53.0 mm | Temp. range –10 °C to +55 °C | Colour Black
Channels 4 | Drives/bays 1 | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 204.6 mm × 206.4 mm × 45.6 mm | Temp. range –10 °C to +55 °C | Colour White
Channels 16 | Drives/bays 2 | CPU Industrial-grade processor | Power supply requirements 12 VDC, 4 A | Power consumption 10 Watts | Dim. 375.0 × 282.9 × 53.0 mm | Temp. range –10 °C to +55 °C | Colour Black
Channels 16 | Drives/bays 1 | CPU Industrial-grade processor | Integrated LAN Gigabit | Power supply requirements 12 VDC, 2 A | Power consumption 10 Watts | Dim. 260.0 × 232.5 × 47.6 mm | Temp. range –10 °C to +55 °C
Channels 16 | Drives/bays 2 | Integrated LAN Gigabit | Power supply requirements 12 VDC, 4 A | Power consumption 10 Watts | Dim. 375.0 × 284.4 x 56.0mm | Temp. range –10 °C to +55 °C
Channels 8 | CPU Industrial-grade | Power supply requirements 53 VDC, 1.81 A | Dim. 270.0 × 206.3 × 45.9 mm | Temp. range –10 °C to +55 °C | Colour White
